    Audio Amplifier (LNAA)



    The LNAA is a low noise, low frequency amplifier with a customer-specified fixed gain between 30 and 60 dB. This amplifier module is designed to serve as a preamplifier for phase noise measurement systems where very low flicker and white noise is required and is equally useful in many applications where low noise is a critical parameter.



    • < 1 nV/root-Hz, Input Referred
    • Bandwidth 10 Hz to 1 MHz
    • Fixed Gain from 30 to 60 dB
    • 50 ohm or High-Z Input
    • Low Output Z



    • Low Phase Noise Measurements
    • Audio Signal Amplification


    Low Noise Audio Amplifier
    For Low Phase Noise Measurements
    Bandwidth: 10 Hz to 1 MHz
    Fixed Gain from 30 to 60 dB
    Gain Flatness: ±1 dB
    Voltage Noise: <1 nV/root-Hz
    Low Output Impedance
    50 Ohm or High Input Impedance
    +15 VDC and -15 VDC Supply Voltages, Required
    Machined Aluminum Housing
    SMA(f) Input and Output Connectors, Standard

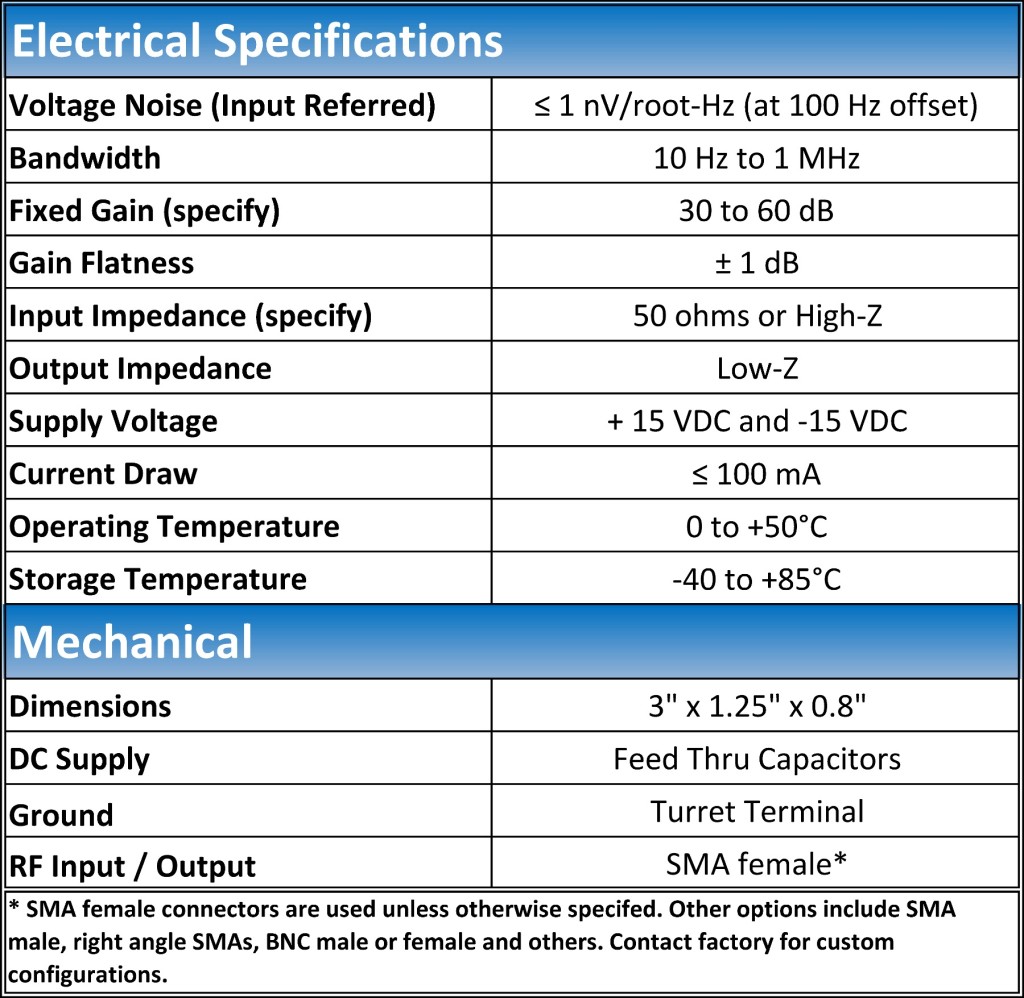

    Typical Specifications

    Mechanical Drawing

    Block Diagram

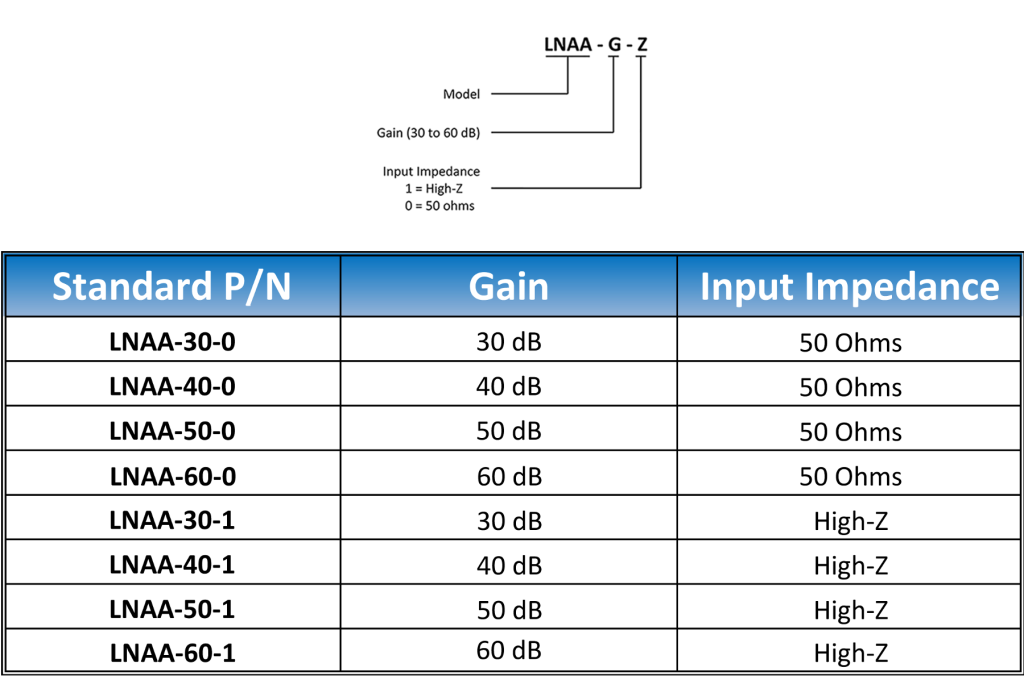

    Ordering Information
