    Product :
    Bootstrap

    inner-page-bg
    product-vhf-banner-img
    product-vhf-banner-img
    Model Description Application Phase Noise (100 kHz) Size

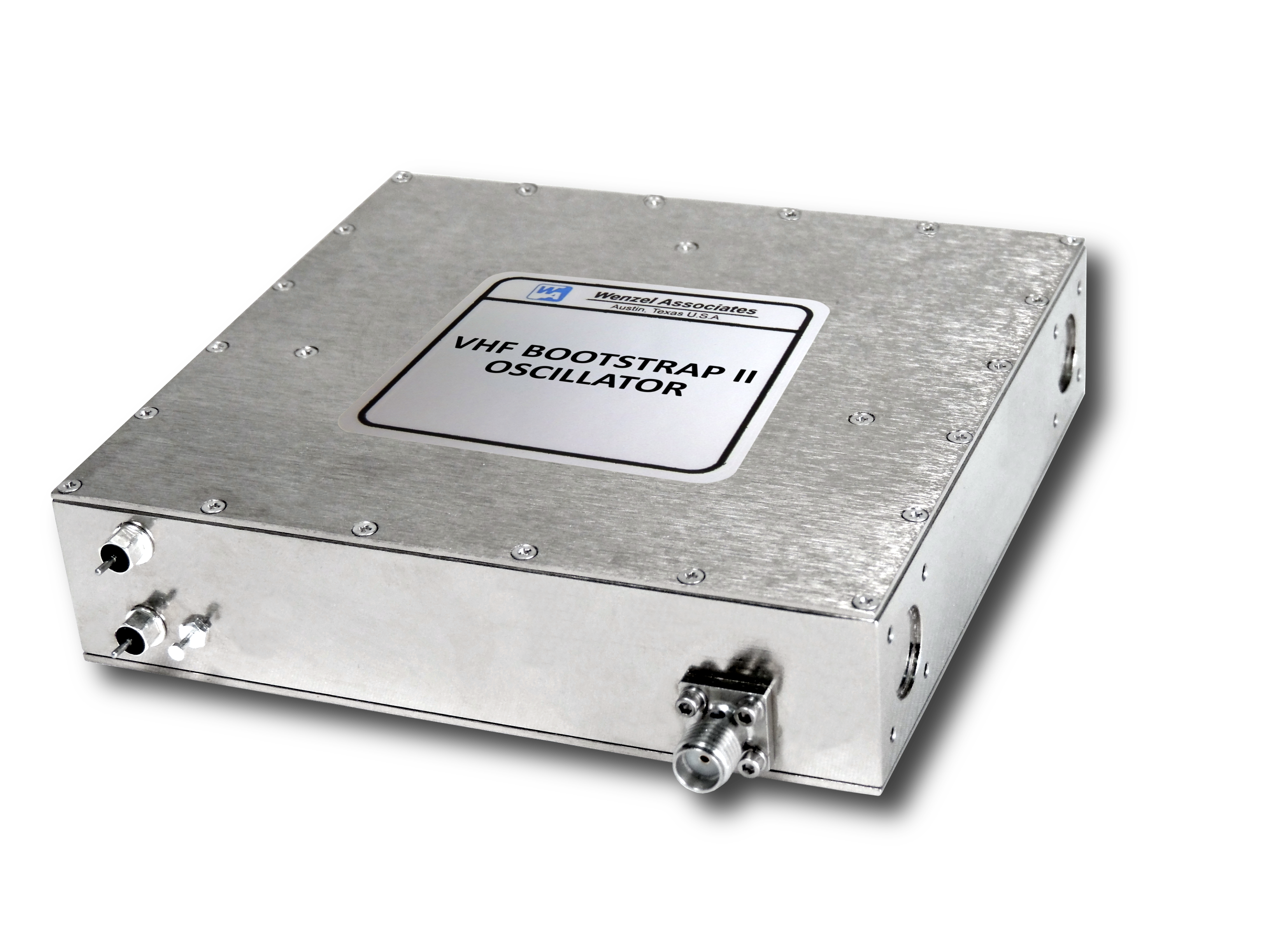

    VHF Bootstrap II

    • Frequencies from 25 MHz to 256 MHz, fixed

    • Premium Phase Noise Options
    • Utilizes Bootstrap Technology Noise Cancellation Techniques
    • External Vibration Isolated Version Available
    • Ruggedized for Dynamic Environments
    • Machined Aluminum or Steel Case
    • SMA(f) and Solder Pins on Side
    • Output: Sine, +13 dBm, Standard
    • Effective-G Sensitivity ≤ to 2e-11/g per axis, 2e-12/g Isolated

    Airborne
    Radar Systems
    Tactical Radio
    Vehicular Communication
    Shipboard Applications

    		 -170 dBc/Hz (Standard) -175 dBc/Hz (Premium) 3.75 x 3.50 x 0.9"
    Model Description Application Phase Noise (100 kHz) Size

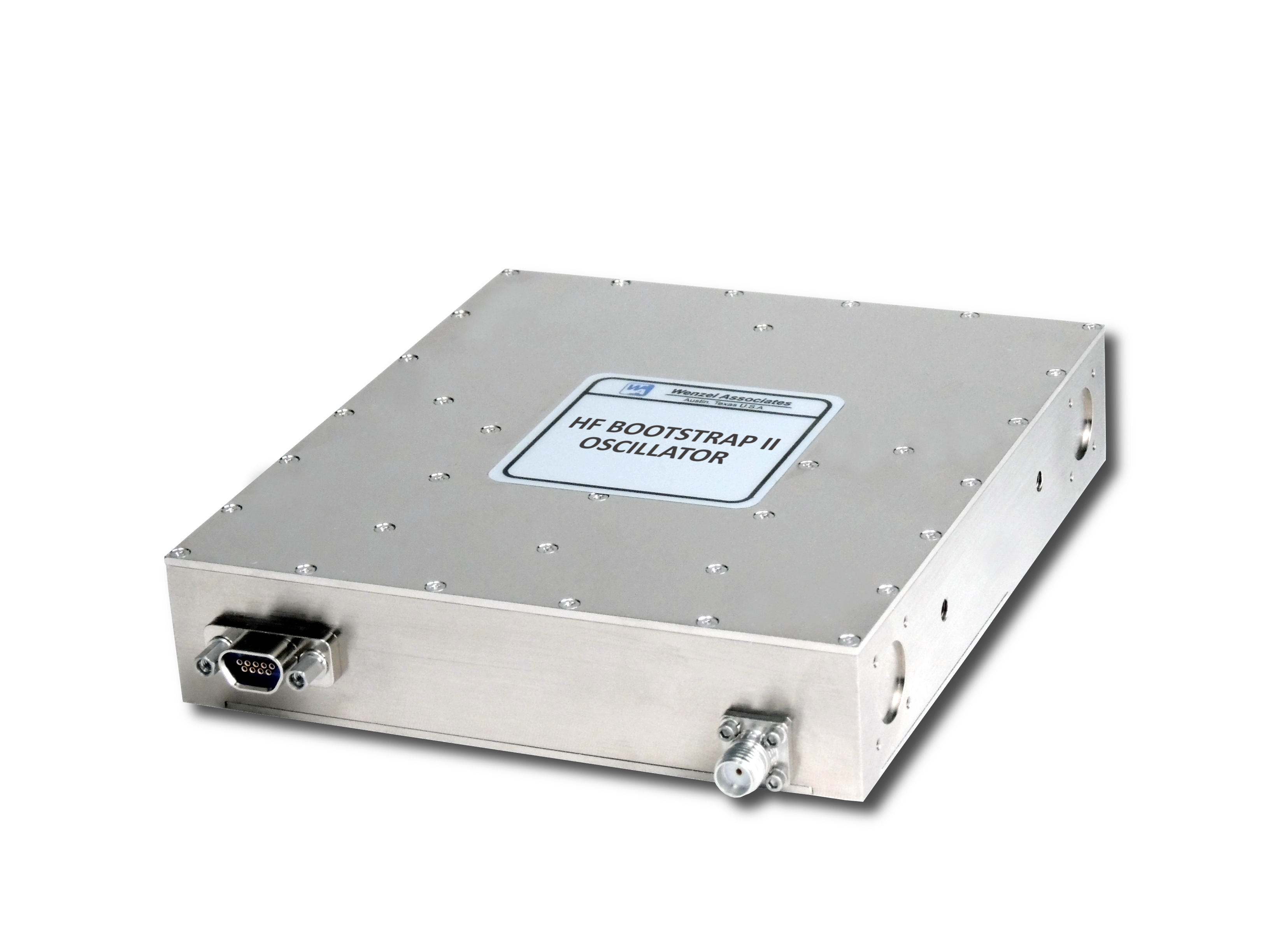

    HF Bootstrap II

    • Frequencies from 10 MHz to 25 MHz, fixed

    • Premium Phase Noise Options
    • Utilizes Bootstrap Technology Noise Cancellation Techniques
    • External Vibration Isolated Version Available
    • Ruggedized for Dynamic Environments
    • Machined Aluminum or Steel Case
    • SMA(f) and Micro-D on Side
    • Output: Sine, +13 dBm, Standard
    • Effective-G Sensitivity ≤ to 2e-11/g per axis, 2e-12/g Isolated

    Airborne
    Radar Systems
    Tactical Radio
    Vehicular Communication
    Shipboard Applications

    		 -165 dBc/Hz (Standard) -170 dBc/Hz (Premium) 4.5 x 4.0 x 0.9"
