• Product Model:
    Custom Rack Mount


    Wenzel Associates’ instruments combine industry leading ultra-low phase noise performance with standard 19” rack mount configurations (1U, 2U, 3U & 5U). A variety of standard rack source solutions are available with pre-configured output frequencies, but custom solutions are also available in assemblies up to 8U (14”) in height. Delivers superior performance at a lower cost than a variable low noise frequency synthesizer with the flexibility of providing only the fixed frequencies needed for requirement.  Frequencies up to 18 GHz are available with low, ultra-low or Golden performance options. Multiple frequencies and multiple outputs are provided as needed as well as phase locking with an external reference. Each instrument includes a low noise power supply and/or low noise voltage regulators to help minimize power supply line related spurs and provide clean power to drive the internal oscillators and modules. Either an AC or DC supply voltage can be specified.

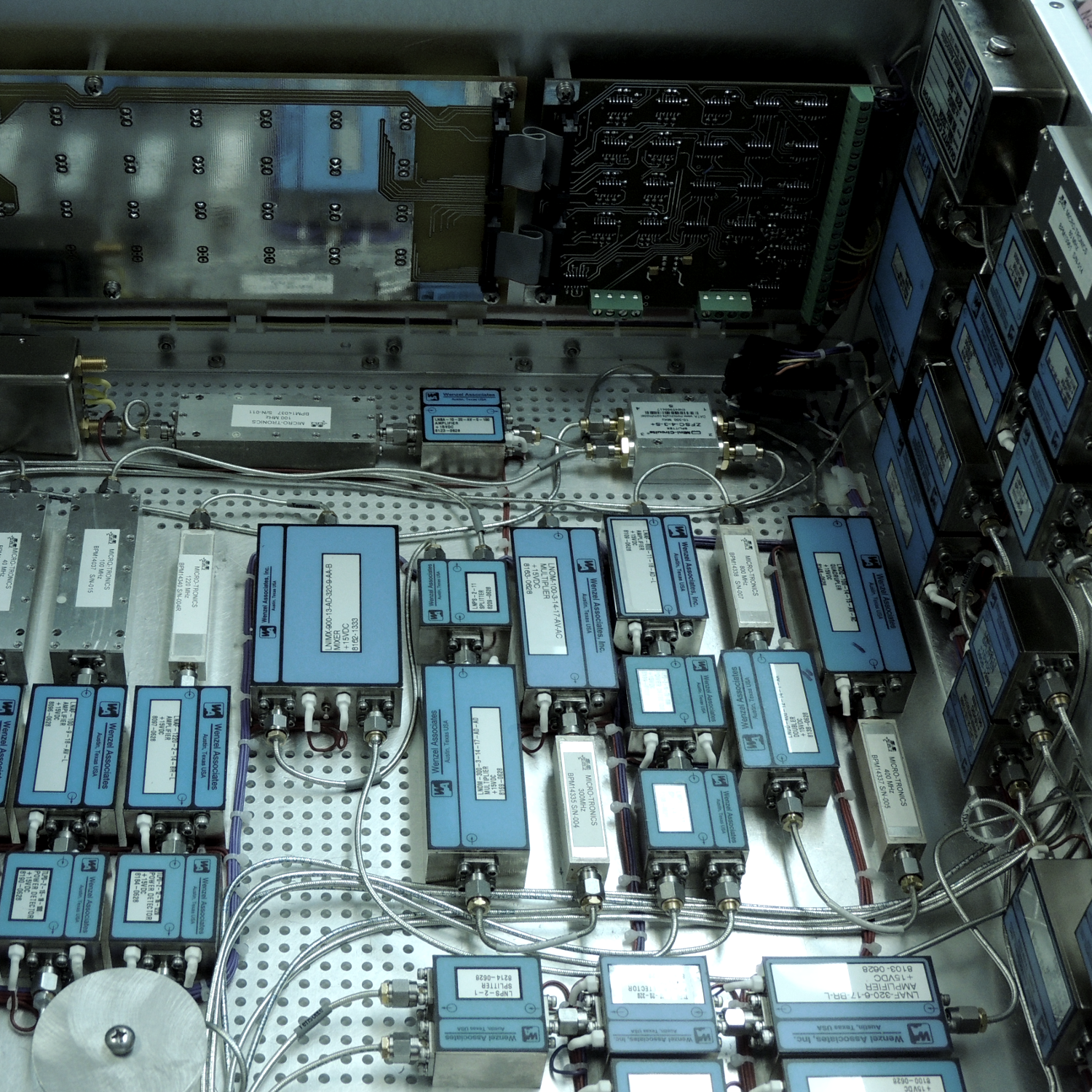

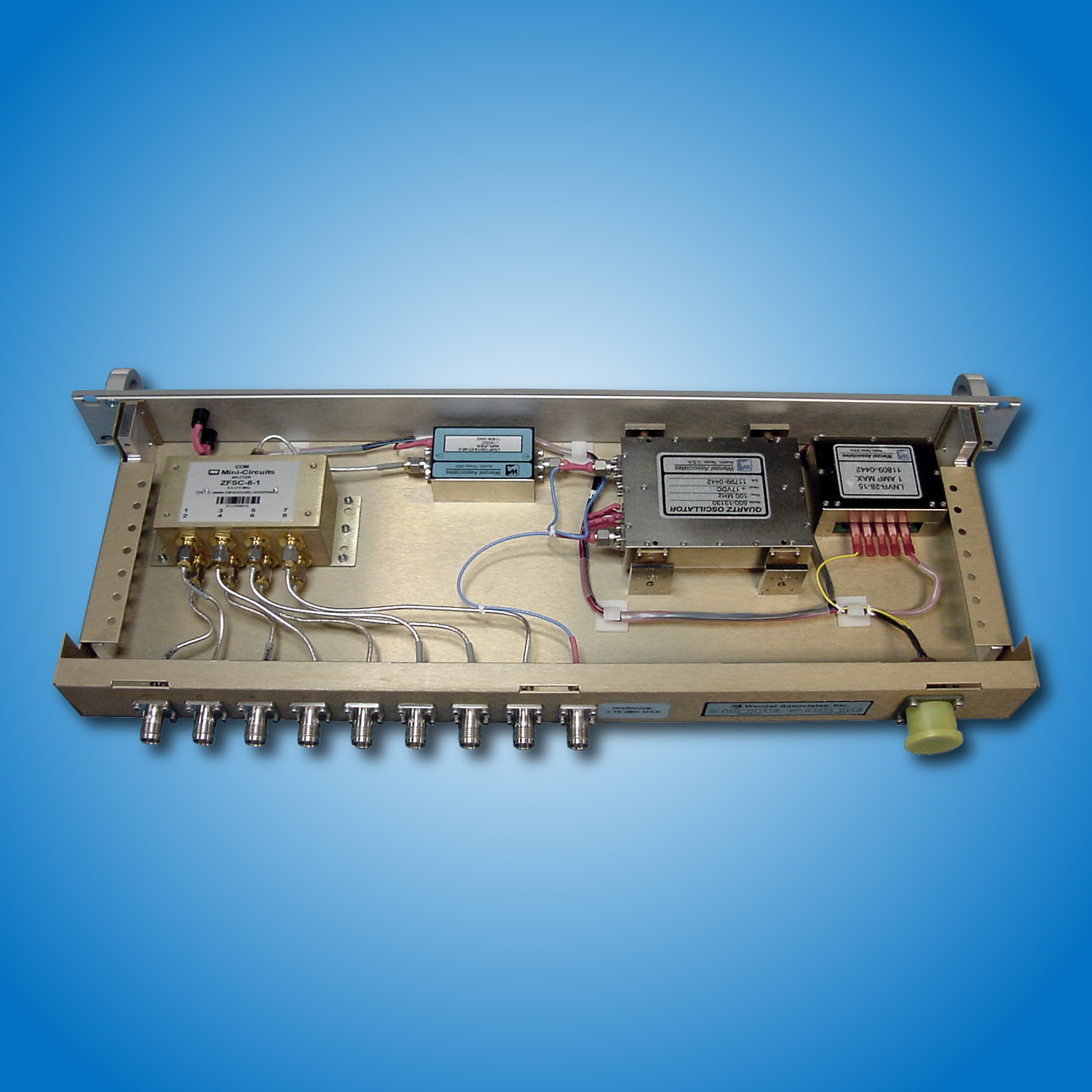

    Crystal Oscillator(s) and/or RF Modules Mounted within a Chassis

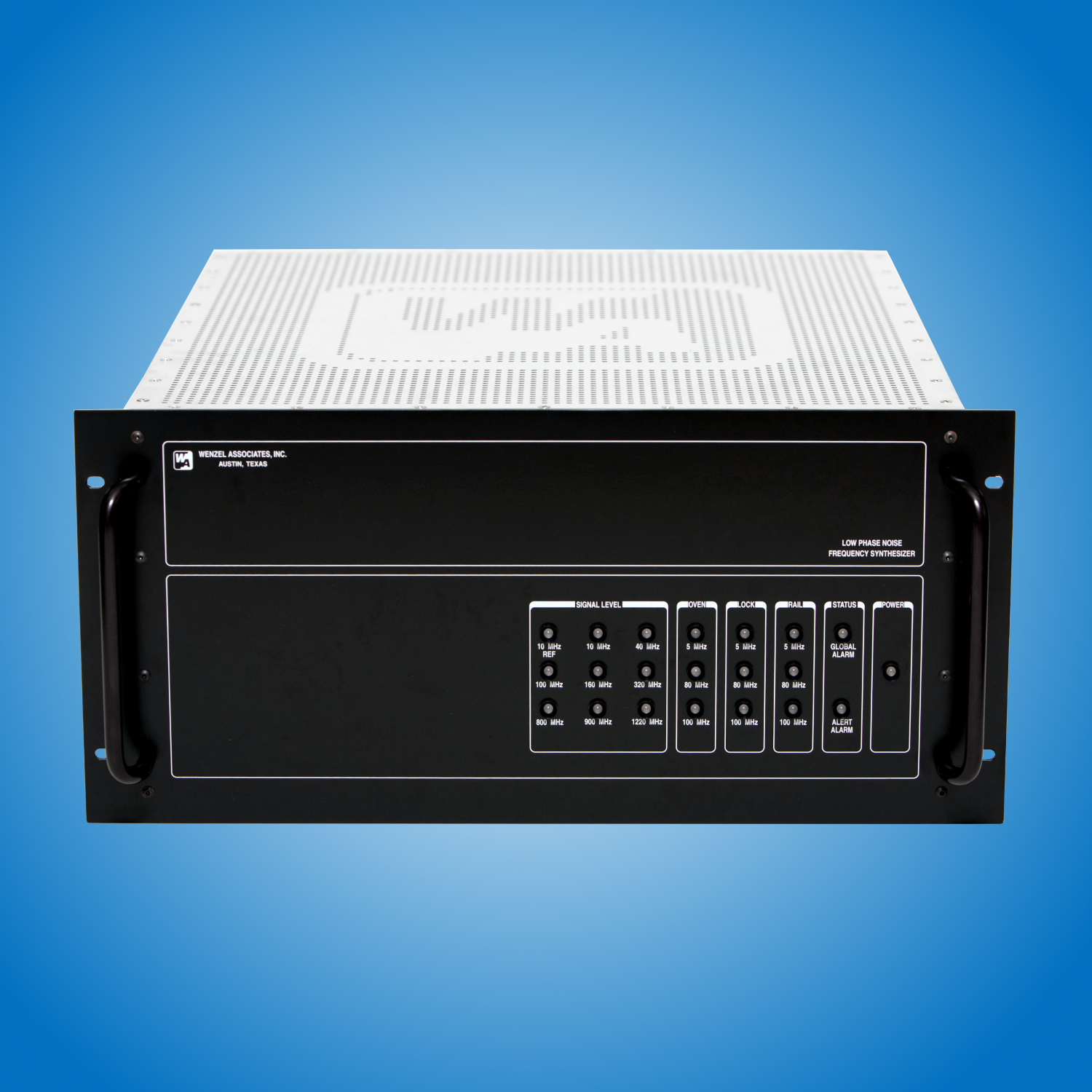

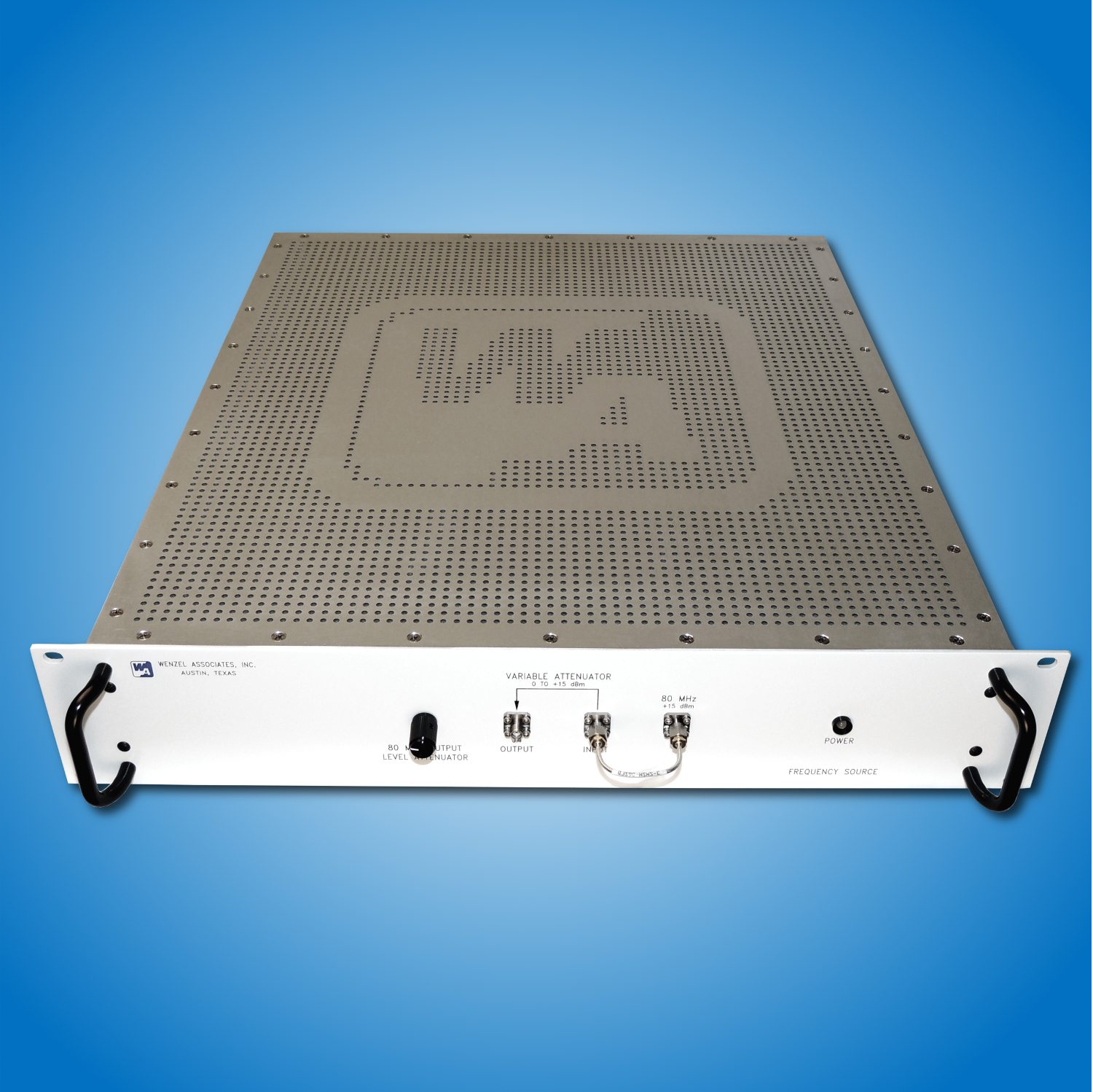

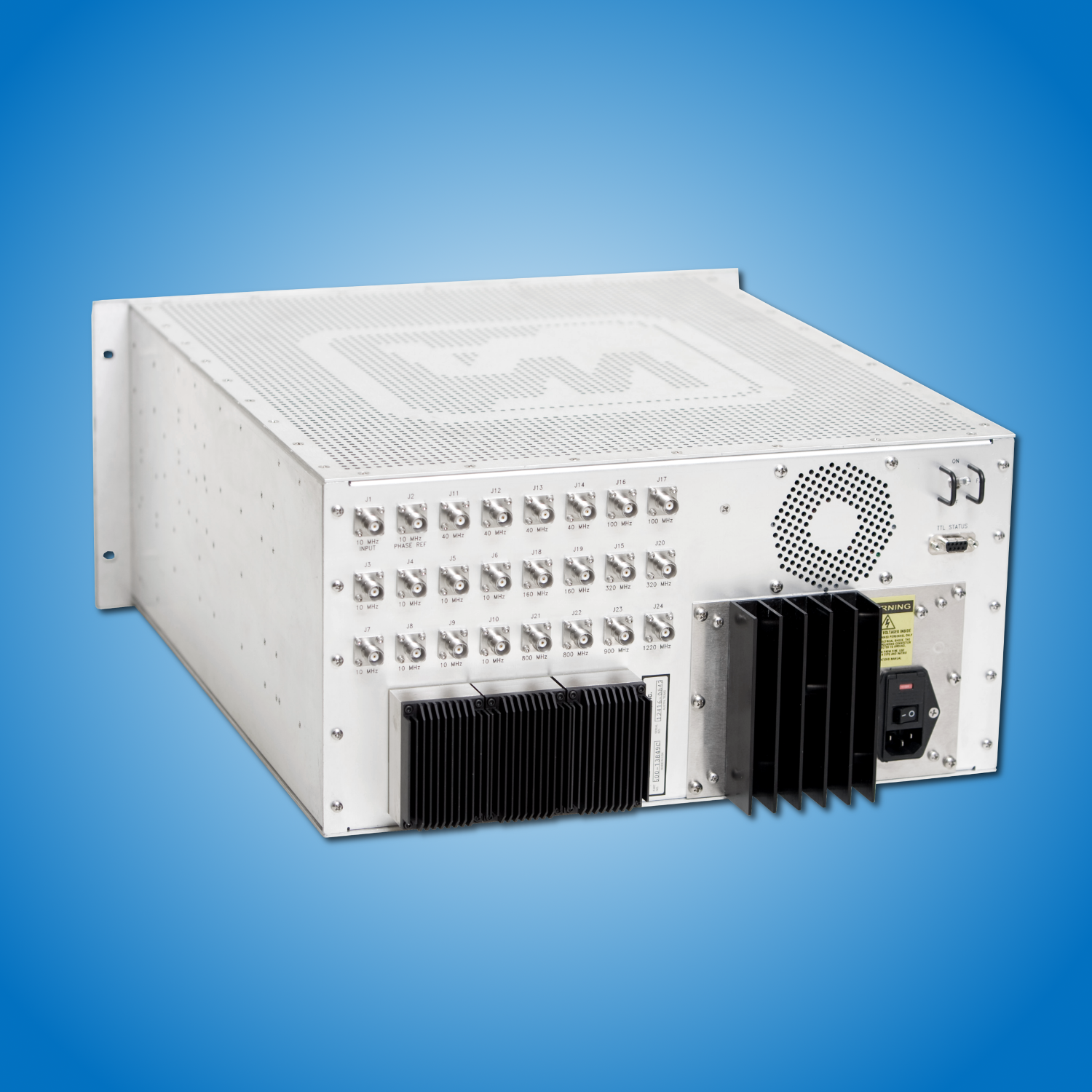

    19″ Rack Mount Chassis (1U, 2U, 3U & 5U Options)
    Customer Selected Frequencies from 5 MHz to 18 GHz
    Multiple Frequency / Multiple Output Options
    Low, Ultra Low and Golden Phase Noise Performance Options
    Phase Locking with External Reference Option

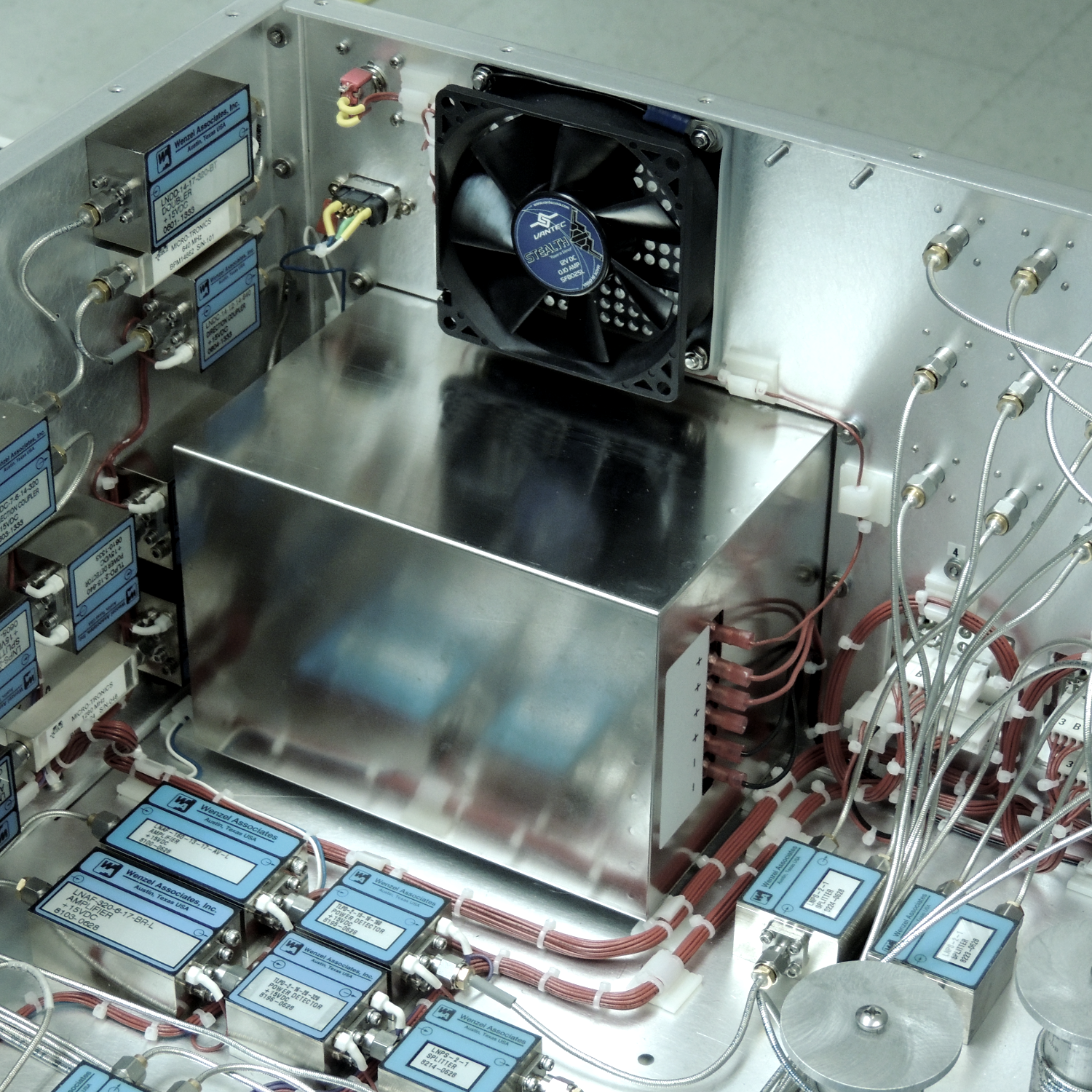

    Low Noise Voltage Regulators Included
    Supply Voltage: 120 VAC, 240 VAC 50/60 Hz or Specified DC Supply


    Bench Reference
    Radar Test Set
    Communication Systems
