• Product :
    Frequency Dividers

    inner-page-bg
    product-vhf-banner-img
    product-vhf-banner-img
    Model Description Application Phase Noise (100 kHz) Size

    Frequency Divider (LNFD2)

    • Input Frequency from 10 kHz to 500 MHz, fixed

    • Division Factors: 2 to 13
    • Output Waveform: Sine or CMOS Logic
    • Output Level: Up to +13 dBm
    • Intrinsic Phase Noise Floor to -165 dBc/Hz (Output Referred)
    • Integral Bandpass Filters and VReg
    • Current Draw: 50 mA
    • Nickel-Plated Machined Aluminum Housing
    • SMA(f) Input and Output Connectors, Standard

    Synthesizer Building Block
    Communication Systems
    Radar Systems
    Electronic Warfare Systems

    2 x 1.25 x 0.8"
    Model Description Application Phase Noise (100 kHz) Size

    Frequency Divider (LNFD)

    • Low Noise Frequency Divider

    • Input Frequency from 5 MHz to 100 MHz, fixed
    • Division Factors: Divide by 2 or 4
    • Output Waveform: Sine or Square Wave
    • Output Level: Up to +13 dBm
    • Intrinsic Phase Noise Floor to -167 dBc/Hz (Output Referred)
    • Integral Bandpass Filters and VReg
    • Current Draw: 60 mA
    • Nickel-Plated Machined Aluminum Housing
    • SMA(f) Input and Output Connectors, Standard

    Synthesizer Building Block
    Communication Systems
    Radar Systems
    Electronic Warfare Systems

    2 x 1.25 x 0.8"
    Model Description Application Phase Noise (100 kHz) Size

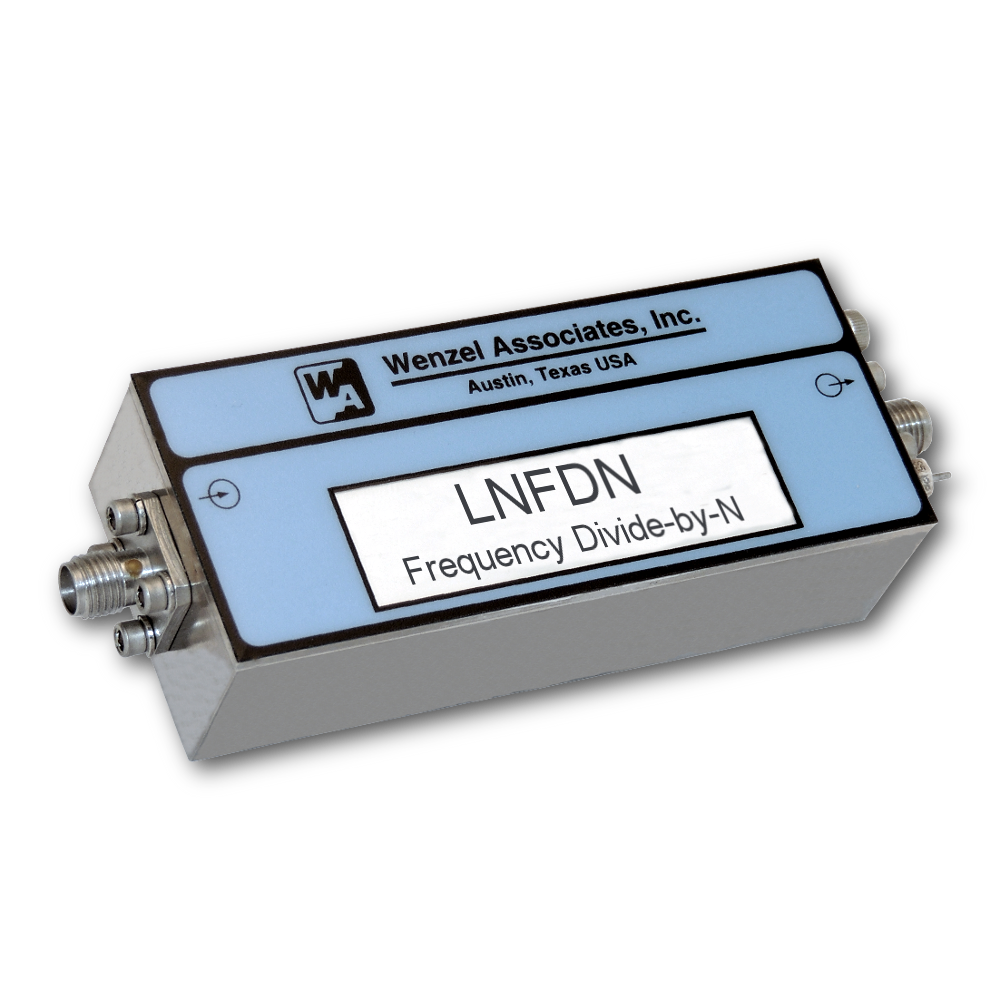

    Frequency Divide-By-N (LNFDN)

    • Low Noise Frequency Divide-By-N

    • Input Frequency from 5 MHz to 100 MHz, fixed
    • Division Factor: Customer Specifed from 2 to 256
    • Output Waveform: Sine or Square Wave
    • Output Level: Up to +13 dBm
    • Intrinsic Phase Noise Floor to -165 dBc/Hz (Output Referred)
    • Integral Bandpass Filters, Square-Up Circuit and VReg
    • Current Draw: 60 mA
    • Nickel-Plated Machined Aluminum Housing
    • SMA(f) Input and Output Connectors, Standard

    Synthesizer Building Block
    Communication Systems
    Radar Systems
    Electronic Warfare Systems

    3 x 1.25 x 0.8"
    Model Description Application Phase Noise (100 kHz) Size

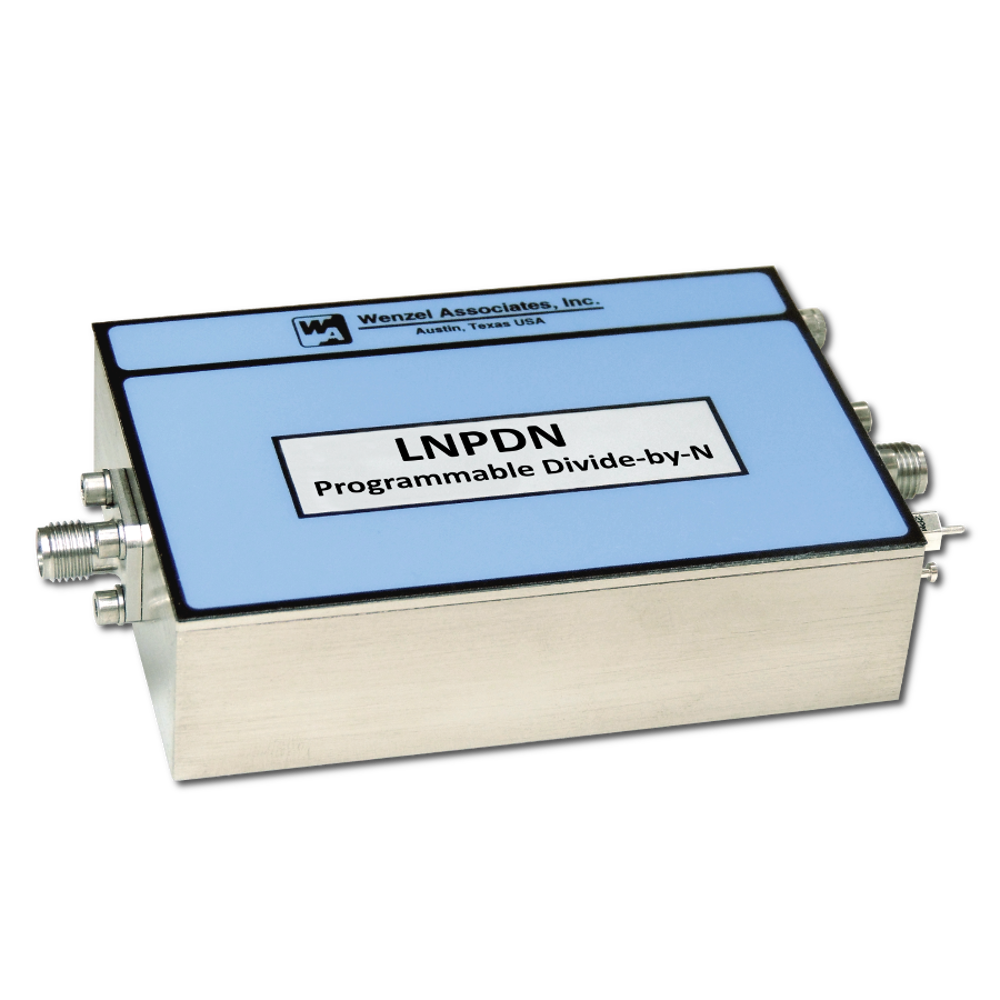

    Programmable Divide-By-N (LNPDN)

    • Low Noise Programmable Divide-By-N

    • Input Frequencies to 700 MHz, fixed
    • Division Factor: Customer Specifed from 2 to 256
    • Division Factor Easily Changed Using Internal Jumpers
    • Output Waveform: Sine or Square Wave
    • Output Level: Up to +10 dBm
    • Intrinsic Noise Floor: -150 dBc/Hz, No Clean-Up, to 700 MHz
    • Intrinsic Noise Floor: -170 dBc/Hz, With Clean-Up, to 200 MHz
    • Integral Bandpass Filters, Square-Up Circuit and VReg
    • Current Draw: < 250 mA
    • Nickel-Plated Machined Aluminum Housing
    • SMA(f) Input and Output Connectors, Standard

    3 x 2 x 0.8"
    Model Description Application Phase Noise (100 kHz) Size

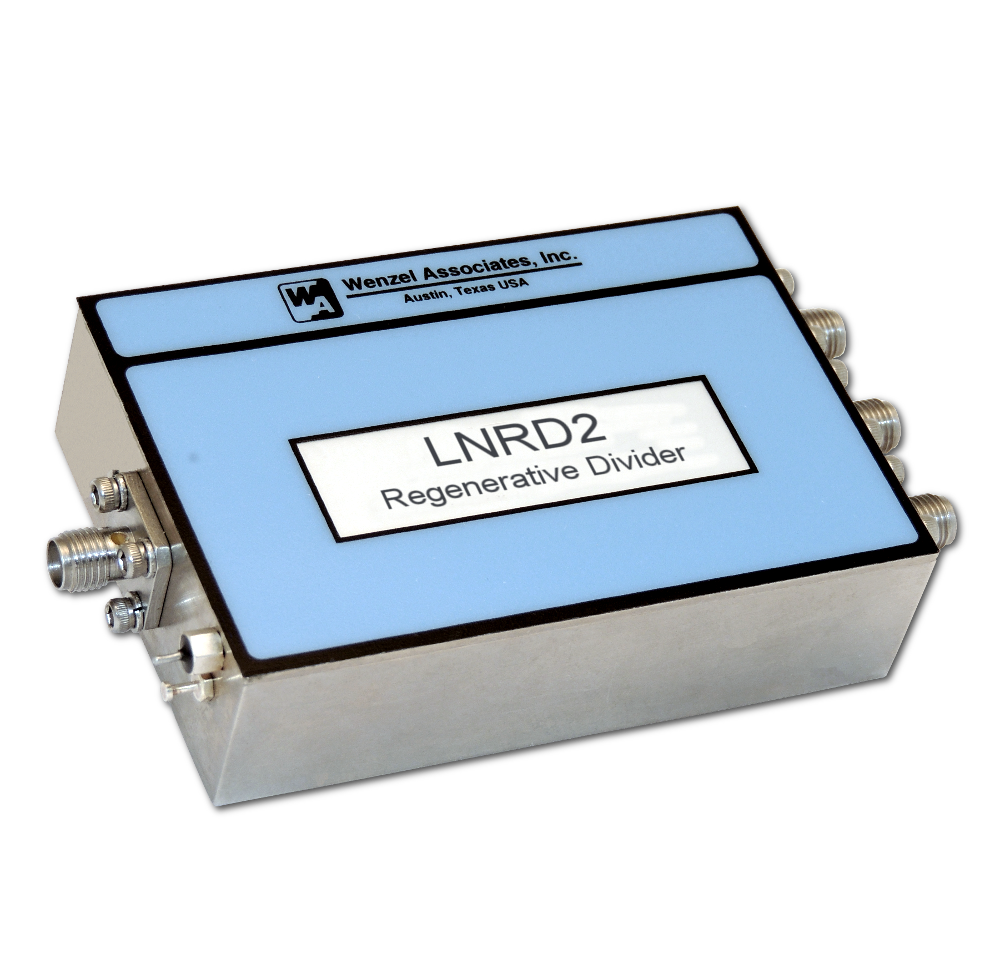

    Regenerative Divider (LNRD2)

    • Low Noise Regenerative Divider (LNRD2)

    • Input Frequency from 10 MHz to 2 GHz, fixed
    • Division Factors: Two (Divide by 2 outputs) and One (3/2 output)
    • Input/Output Waveform: Sine Wave
    • Input Level: +20 to +23 dBm
    • Output Level: Up to +15 dBm
    • Intrinsic Phase Noise Floor to -172 dBc/Hz (Output Referred)
    • Integral Mixer, Filters, Amplifers and Splitters
    • Current Draw: <200 mA
    • Nickel-Plated Machined Aluminum Housing
    • SMA(f) Input and Output Connectors, Standard

    3 x 2 x 0.8"
    Model Description Application Phase Noise (100 kHz) Size

    Regenerative Divider (LNRD4)

    • Low Noise Regenerative Divider (LNRD4)

    • Input Frequency from 10 MHz to 2 GHz, fixed
    • Division Factors: Two (Divide by 2 outputs) and One (3/2 output)
    • Input/Output Waveform: Sine Wave
    • Input Level: +10 to +20 dBm
    • Output Level: Up to +15 dBm
    • Intrinsic Phase Noise Floor to -172 dBc/Hz (Output Referred)
    • Integral Mixer, Filters, Amplifers and Splitters
    • Current Draw: <300 mA
    • Nickel-Plated Machined Aluminum Housing
    • SMA(f) Input and Output Connectors, Standard

    3 x 2 x 0.8"
    Model Description Application Phase Noise (100 kHz) Size

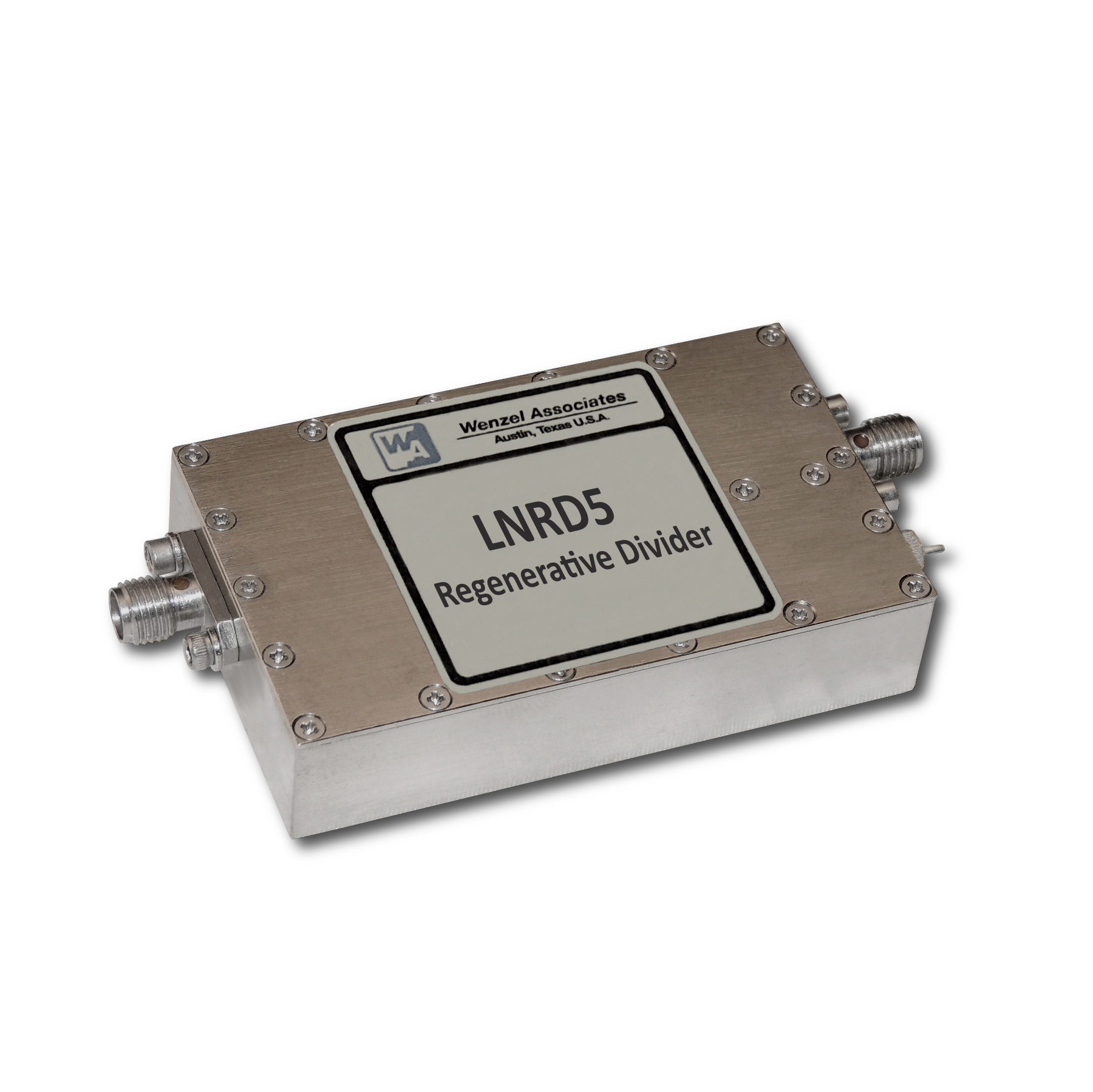

    Regenerative Divider (LNRD5)

    • Low Noise Regenerative Divider (LNRD5)

    • Input Frequency from 2 GHz to 12 GHz, fixed
    • Division Factors: Divide by 2
    • Input/Output Waveform: Sine Wave
    • Input Level: 0 to +3 dBm
    • Output Level: Up to +10 dBm
    • Intrinsic Phase Noise Floor to -168 dBc/Hz (Output Referred)
    • Integral Mixer, Filters, Amplifers and Splitter
    • Current Draw: < 150 mA
    • Nickel-Plated Machined Aluminum Housing
    • SMA(f) Input and Output Connectors, Standard

    2.5 x 1.5 x .55"
    Model Description Application Phase Noise (100 kHz) Size

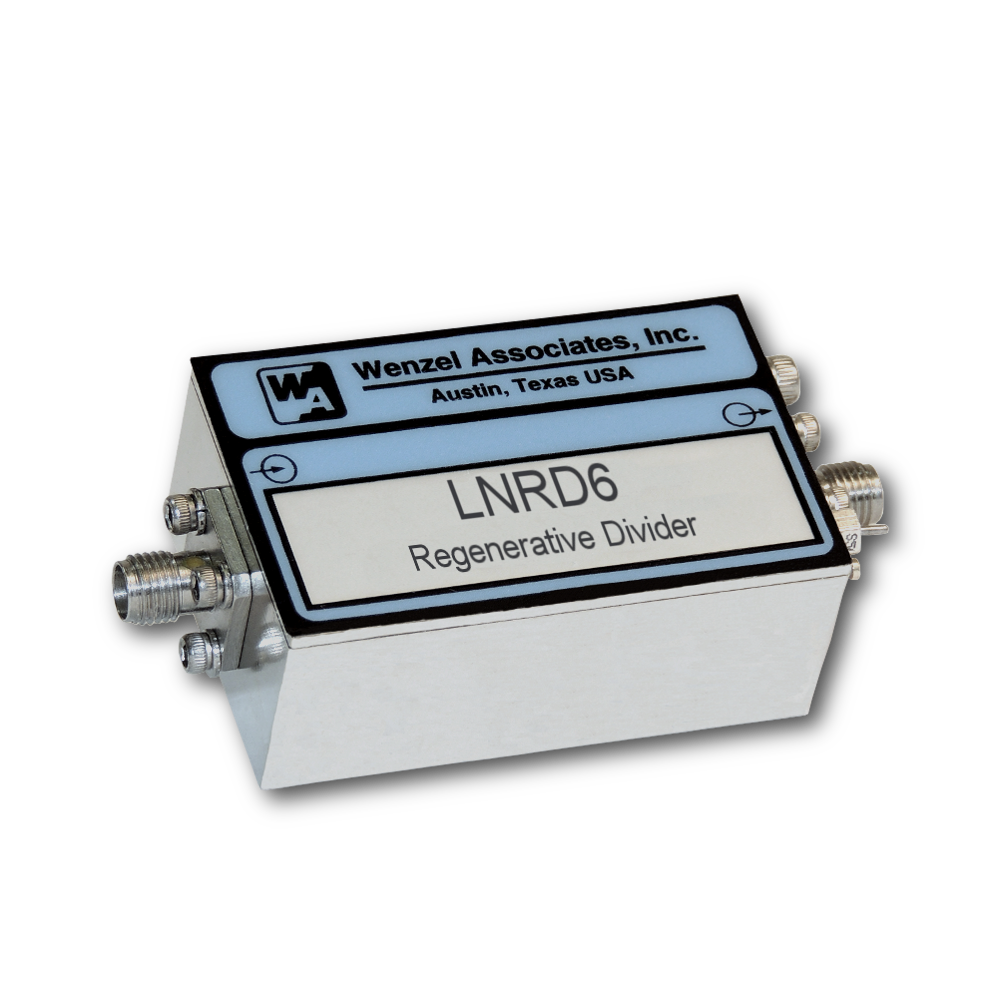

    Regenerative Divider (LNRD6)

    • Low Noise Regenerative Divider (LNRD6)

    • Input Frequency from 10 MHz to 2 GHz, fixed
    • Division Factors: Divide by 2
    • Input/Output Waveform: Sine Wave
    • Input Level: +20 to +23 dBm
    • Output Level: Up to +15 dBm
    • Intrinsic Phase Noise Floor to -172 dBc/Hz (Output Referred)
    • Integral Mixer, Filters, Amplifers and Splitter
    • Current Draw: <100 mA
    • Nickel-Plated Machined Aluminum Housing
    • SMA(f) Input and Output Connectors, Standard

    2 x 1.25 x 0.8"
    Model Description Application Phase Noise (100 kHz) Size

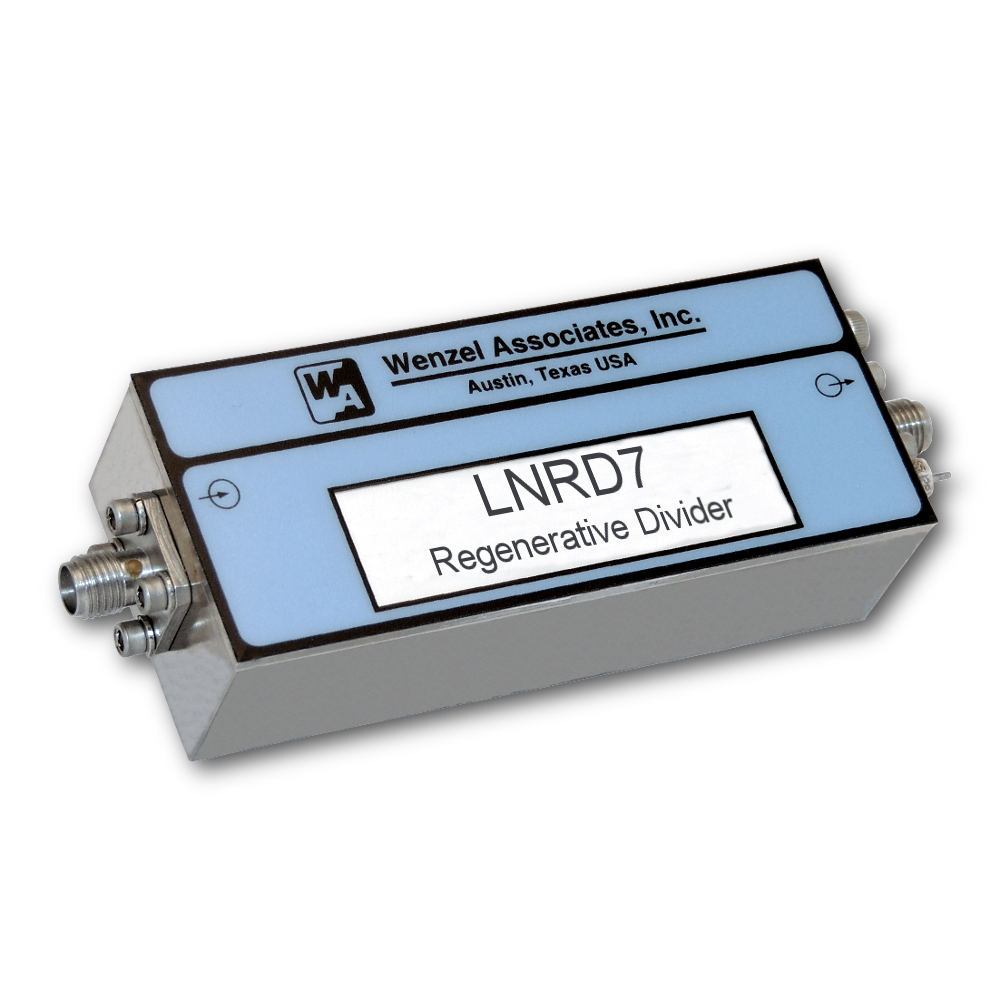

    Regenerative Divider (LNRD7)

    • Low Noise Regenerative Divider (LNRD7)

    • Input Frequency from 10 MHz to 2 GHz, fixed
    • Division Factors: Divide by 2
    • Input/Output Waveform: Sine Wave
    • Input Level: +10 to +20 dBm
    • Output Level: Up to +15 dBm
    • Intrinsic Phase Noise Floor to -172 dBc/Hz (Output Referred)
    • Integral Mixer, Filters, Amplifers and Splitter
    • Current Draw: 200 mA
    • Nickel-Plated Machined Aluminum Housing
    • SMA(f) Input and Output Connectors, Standard

    3 x 1.25 x 0.8"
    Model Description Application Phase Noise (100 kHz) Size

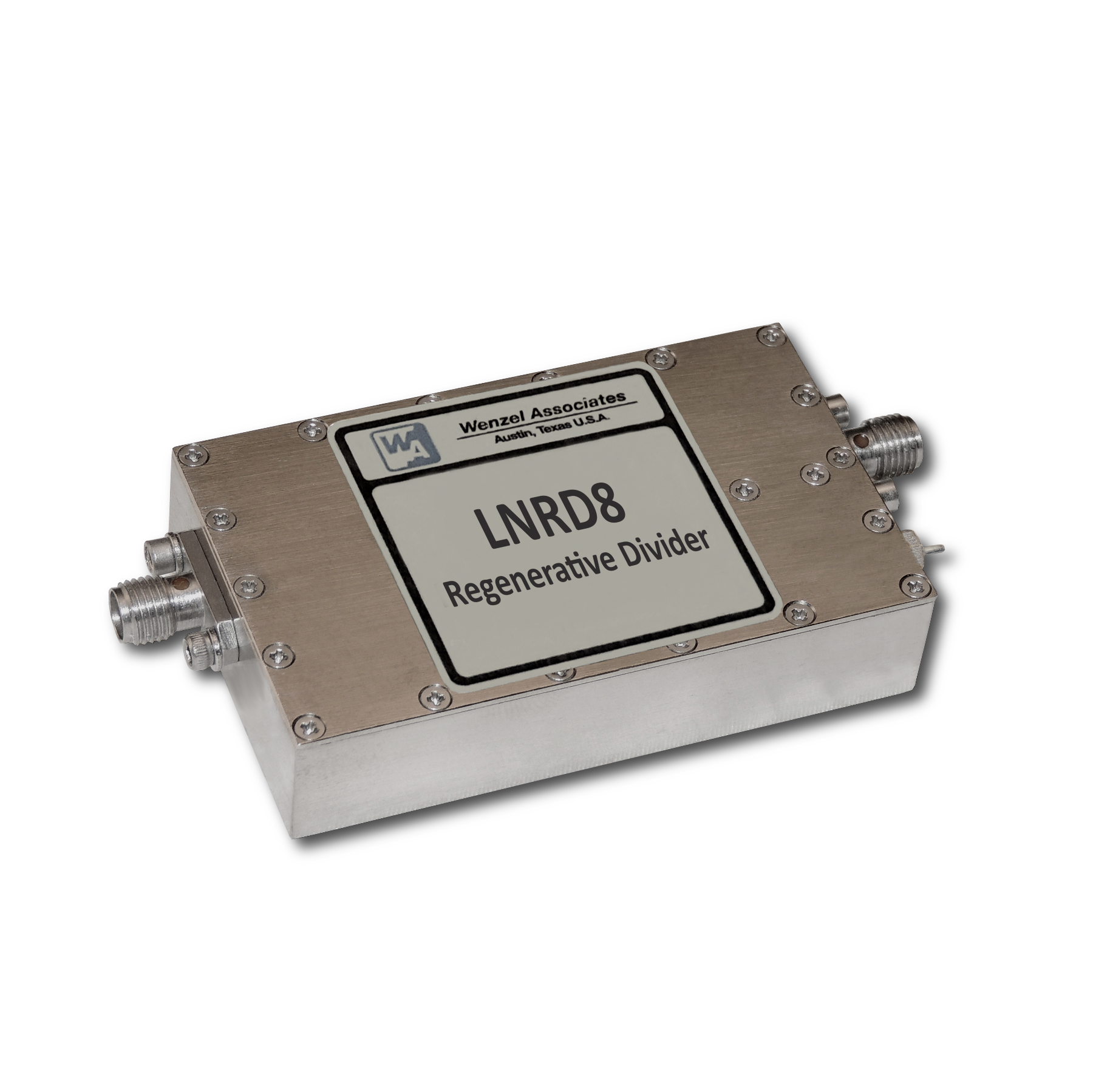

    Regenerative Divider (LNRD8)

    • Low Noise Regenerative Divider (LNRD8)

    • Input Frequency from 2 GHz to 12 GHz, fixed
    • Division Factors: Divide by 2
    • Input/Output Waveform: Sine Wave
    • Input Level: +10 to +13 dBm
    • Output Level: Up to +10 dBm
    • Intrinsic Phase Noise Floor to -168 dBc/Hz (Output Referred)
    • Integral Mixer, Filters, Amplifers and Splitter
    • Current Draw: < 100 mA
    • Nickel-Plated Machined Aluminum Housing
    • SMA(f) Input and Output Connectors, Standard

    Synthesizer Building Block
    Communication Systems
    Radar Systems
    Electronic Warfare Systems

    2.5 x 1.5 x .55"
