    Frequency Multipliers

    inner-page-bg
    product-vhf-banner-img
    product-vhf-banner-img
    Model Description Block Diagram Size

    IFM Series (Outputs to 16 GHz)

    • Integrated Frequency Multipliers

    • Multiplication Factors from x2 to x300
    • Input Frequency from 5 MHz to 8 GHz, fixed
    • Output Frequencies to 16GHz
    • Intrinsic Phase Noise Floor to -176 dBc/Hz (Input Referred)
    • Integral Multipliers, Filters, Amplifiers and Optional Voltage Regulator
    • Nickel-Plated Machined Aluminum Housing
    • SMA(f) Input and Output Connectors, Standard

    		 Various Package Configurations
    Model Description Block Diagram Size

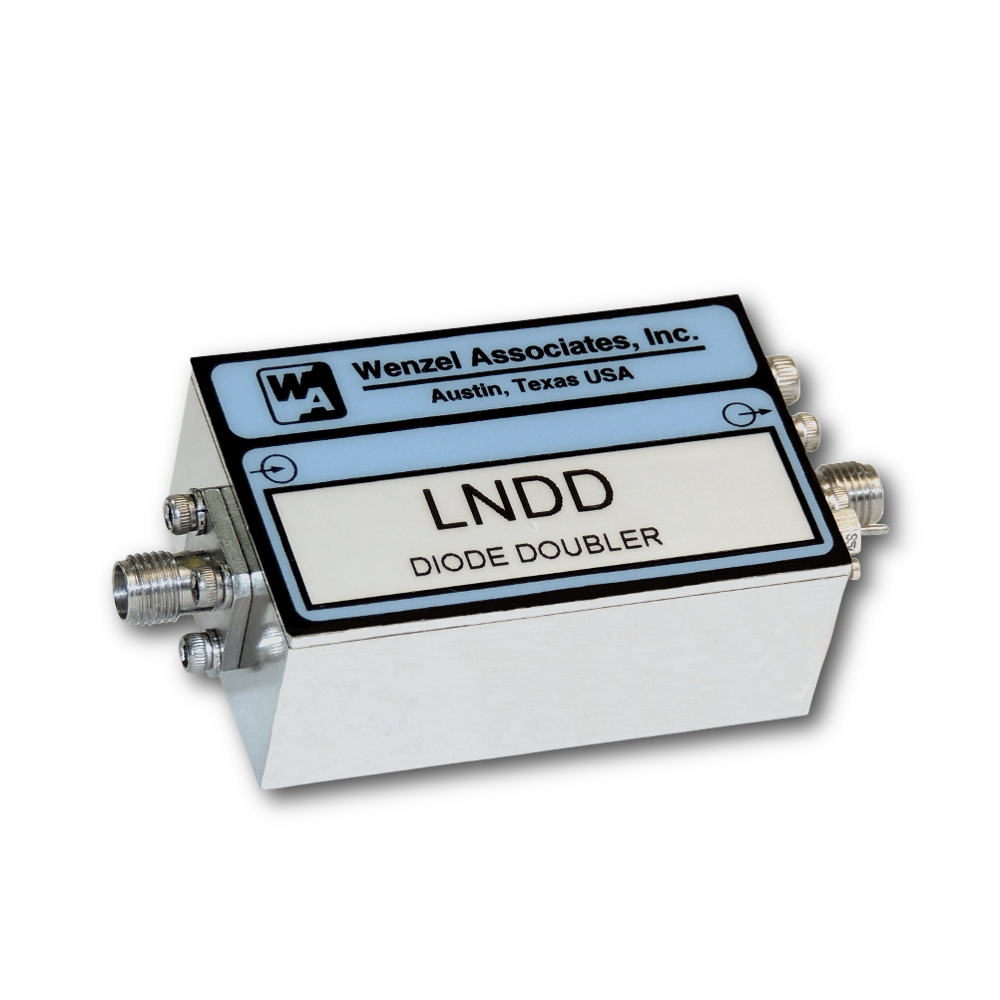

    Diode Doubler (LNDD)

    • Low Noise Diode Doubler

    • Multiplcation Factor: x2
    • Input Frequency from 5 MHz to 500 MHz, fixed
    • Output Frequencies to 1 GHz
    • Current Draw: 50 mA to 100 mA (amplifier dependent)
    • Intrinsic Phase Noise Floor to -176 dBc/Hz (Input Referred)
    • Conversion Loss: 0 dB, typical
    • Integral Bandpass Filters and Amplifier
    • Nickel-Plated Machined Aluminum Housing
    • SMA(f) Input and Output Connectors, Standard

    		 2 x 1.25 x 0.8"
    Model Description Block Diagram Size

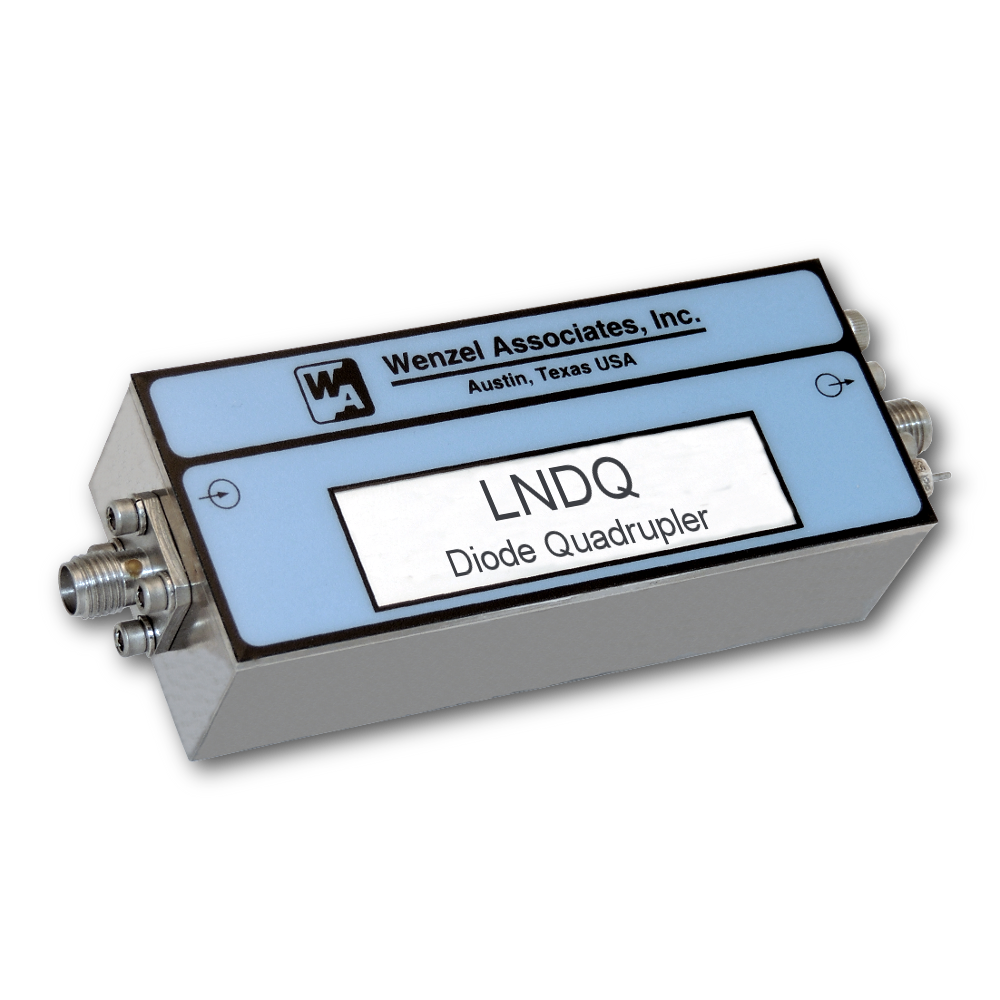

    Diode Quadrupler (LNDQ)

    • Low Noise Diode Quadrupler

    • Multiplcation Factor: x4
    • Input Frequency from 5 MHz to 250 MHz, fixed
    • Output Frequencies to 1GHz
    • Current Draw: 100 mA to 200 mA (amplifier dependent)
    • Intrinsic Phase Noise Floor to -176 dBc/Hz (Input Referred)
    • Conversion Loss: 0 dB, typical
    • Integral Bandpass Filters and Amplifiers
    • Nickel-Plated Machined Aluminum Housing
    • SMA(f) Input and Output Connectors, Standard

    		 3 x 1.25 x 0.8"
    Model Description Block Diagram Size

    HF Doubler (LNHD)

    • Low Noise HF Doubler

    • Multiplcation Factor: x2
    • Input Frequency from 5 MHz to 15 MHz, fixed
    • Output Frequencies to 30 MHz
    • Low Current Draw: ≤ 30 mA
    • Intrinsic Phase Noise Floor to -178 dBc/Hz (Input Referred)
    • Conversion Loss: 0 dB, typical
    • Integral Bandpass Filter
    • Supply Voltage Active Noise Filter
    • Nickel-Plated Machined Aluminum Housing
    • SMA(f) Input and Output Connectors, Standard

    		 2 x 1.25 x 0.8"
    Model Description Block Diagram Size

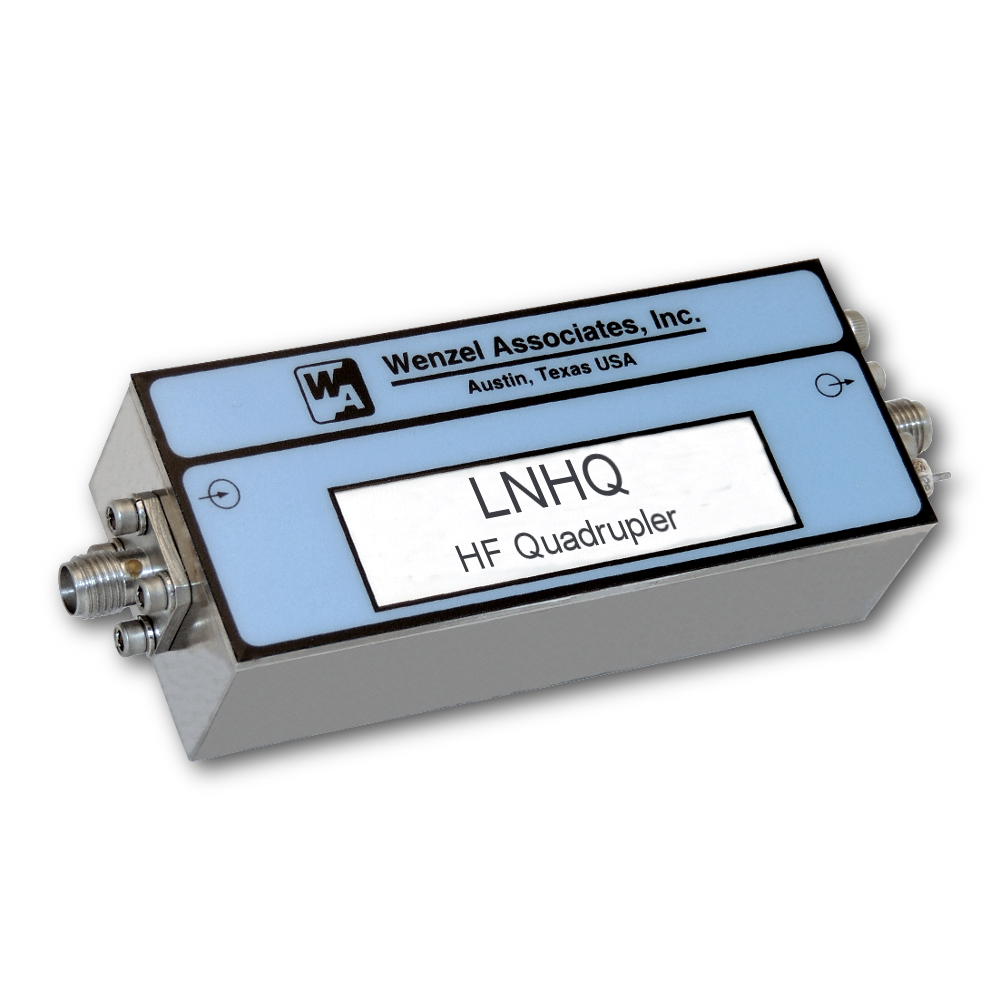

    HF Quadrupler (LNHQ)

    • Low Noise HF Quadrupler

    • Multiplcation Factor: x4
    • Input Frequency from 5 MHz to 10 MHz, fixed
    • Output Frequencies to 40 MHz
    • Low Current Draw: ≤ 40 mA
    • Intrinsic Phase Noise Floor to -176 dBc/Hz (Input Referred)
    • Conversion Loss: 0 dB, typical
    • Integral Bandpass Filter
    • Supply Voltage Active Noise Filter
    • Nickel-Plated Machined Aluminum Housing
    • SMA(f) Input and Output Connectors, Standard

    		 3 x 1.25 x 0.8"
    Model Description Block Diagram Size

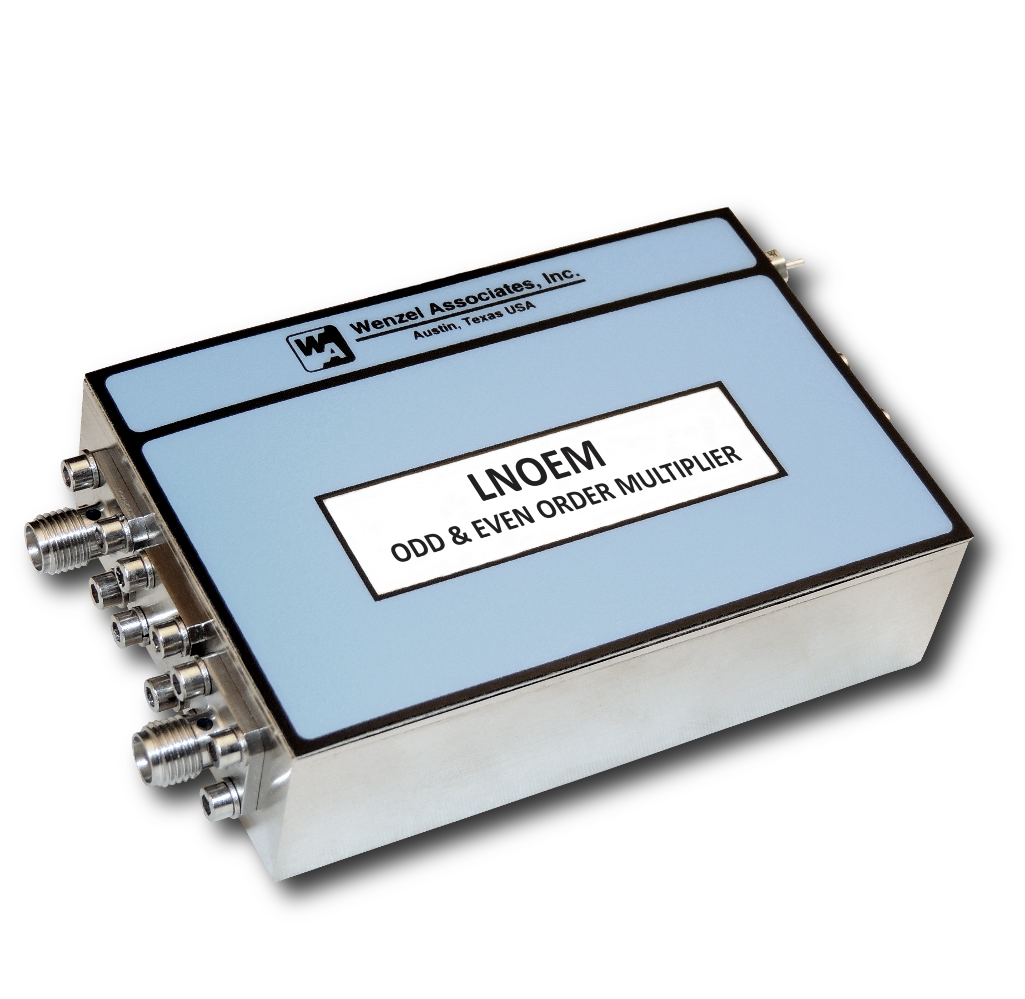

    Odd & Even Multiplier (LNOEM)

    • Low Noise Odd and Even Multiplier

    • Multiplcation Factors: x6, x10, and x14
    • Input Frequency from 5 MHz to 250 MHz, fixed
    • Output Frequencies to 1.5 GHz
    • Current Draw: 150 mA to 300 mA (amplifier dependent)
    • Intrinsic Phase Noise Floor to -177 dBc/Hz (Input Referred)
    • Conversion Loss: -5 dBm to +5 dBm
    • Output Level: Up to +15 dBm on some models
    • Integral Bandpass Filters and Amplifiers
    • Nickel-Plated Machined Aluminum Housing
    • SMA(f) Input and Output Connectors, Standard

    		 3 x 2 x 0.8"
    Model Description Block Diagram Size

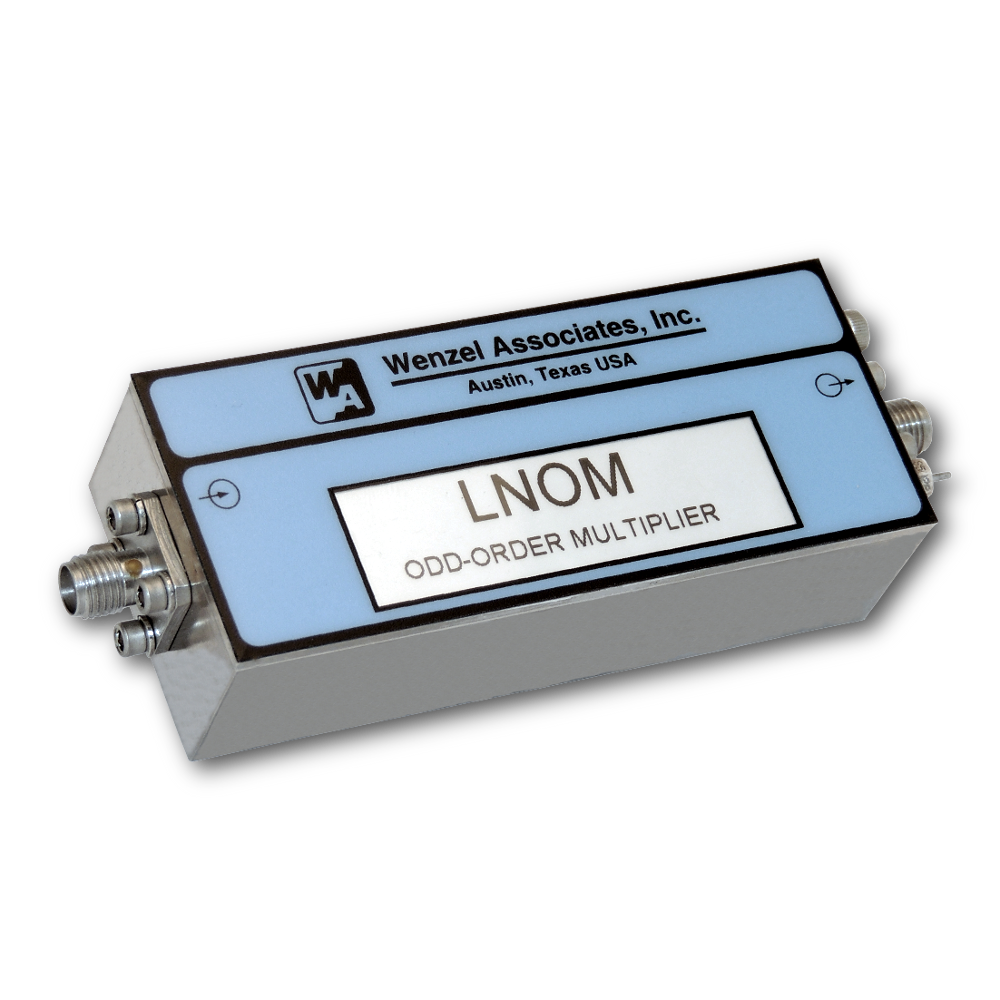

    Odd-Order Multiplier (LNOM)

    • Low Noise Odd-Order Multiplier

    • Multiplcation Factors: x3, x5, x7, and x9
    • Input Frequency from 5 MHz to 300 MHz, fixed
    • Output Frequencies to 1 GHz
    • Current Draw: 100 mA to 200 mA (amplifier dependent)
    • Intrinsic Phase Noise Floor to -178 dBc/Hz (Input Referred)
    • Conversion Loss: -3 dBm to +5 dBm
    • Output Level: Up to +20 dBm on some models
    • Integral Bandpass Filters and Amplifiers
    • Nickel-Plated Machined Aluminum Housing
    • SMA(f) Input and Output Connectors, Standard

    		 3 x 1.25 x 0.8"
    Model Description Block Diagram Size

    VHF Doubler (LNVD)

    • Low Noise VHF Doubler

    • Multiplcation Factor: x2
    • Input Frequency from 15 MHz to 160 MHz, fixed
    • Output Frequencies to 320 MHz
    • Low Current Draw: ≤ 50 mA
    • Intrinsic Phase Noise Floor to -175 dBc/Hz (Input Referred)
    • Conversion Loss: 0 dB, typical
    • Integral Bandpass Filter
    • Integral Voltage Regulator
    • Nickel-Plated Machined Aluminum Housing
    • SMA(f) Input and Output Connectors, Standard

    		 2 x 1.25 x 0.8"
    Model Description Block Diagram Size

    VHF Quadrupler (LNVQ)

    • Low Noise VHF Quadrupler

    • Multiplcation Factor: x4
    • Input Frequency from 15 MHz to 125 MHz, fixed
    • Output Frequencies to 500 MHz
    • Low Current Draw: ≤ 60 mA
    • Intrinsic Phase Noise Floor to -174 dBc/Hz (Input Referred)
    • Conversion Loss: Up to +3dB, typical
    • Integral Bandpass Filter
    • Integral Voltage Regulator
    • Nickel-Plated Machined Aluminum Housing
    • SMA(f) Input and Output Connectors, Standard

    		 2 x 1.25 x 0.8"
