    Card Assemblies

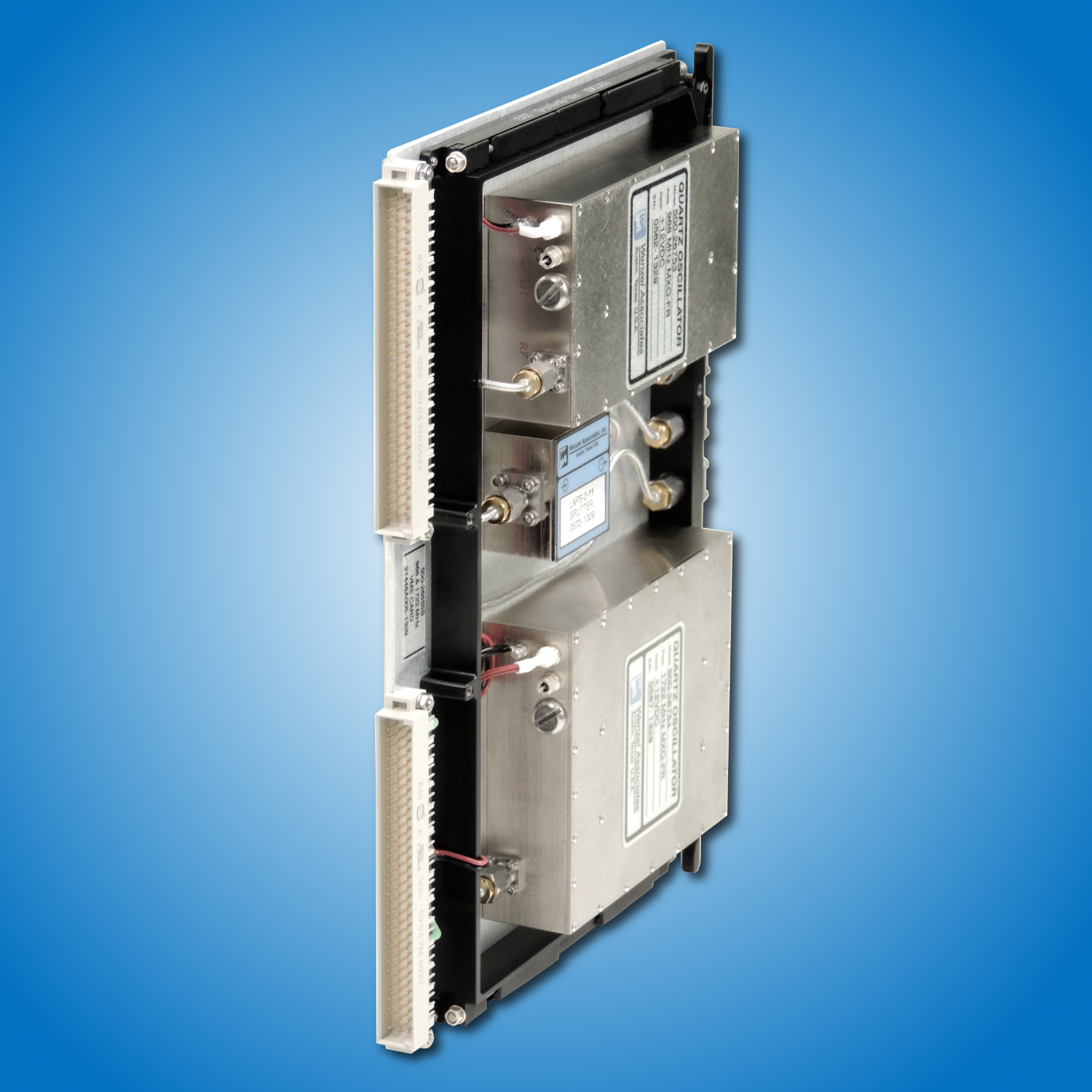

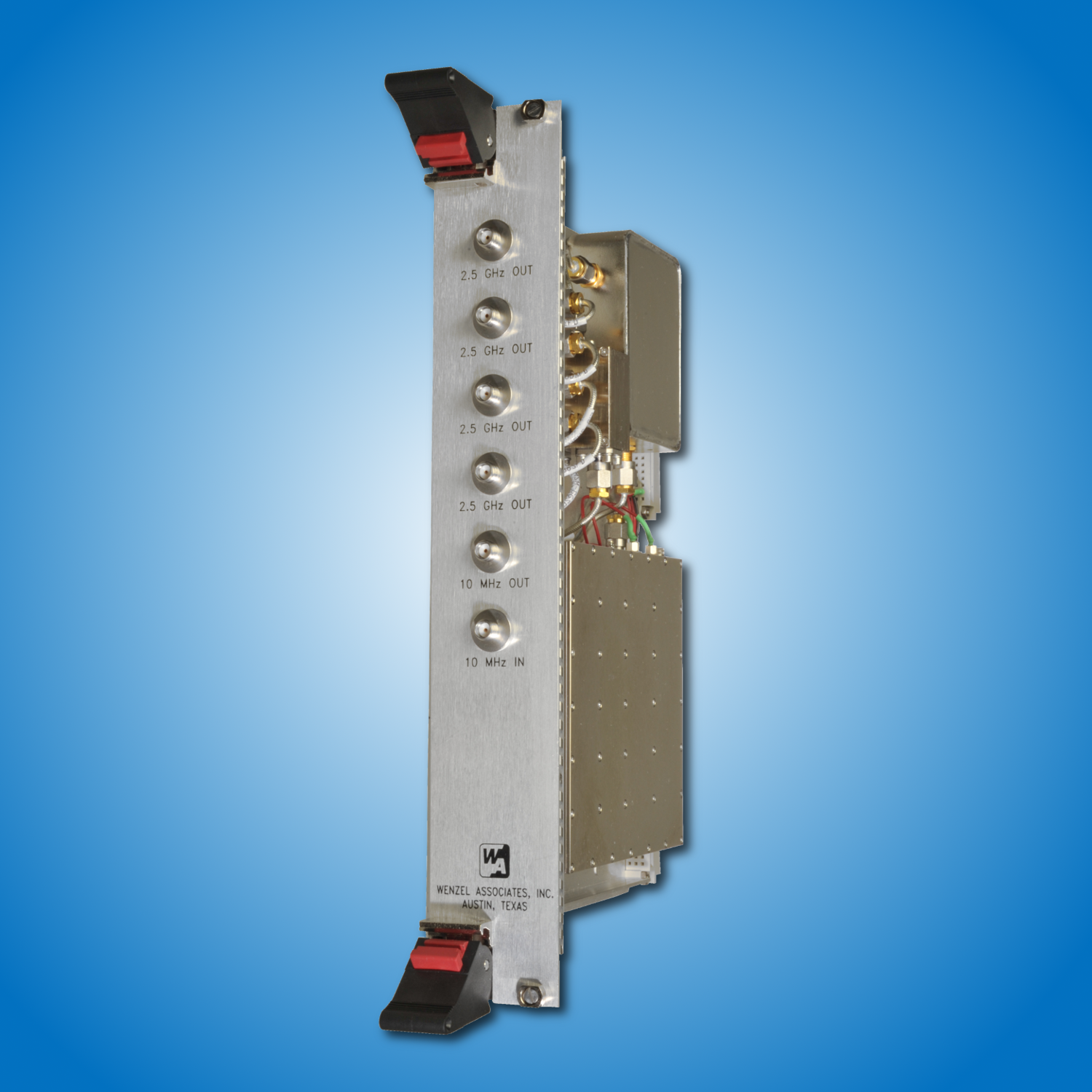

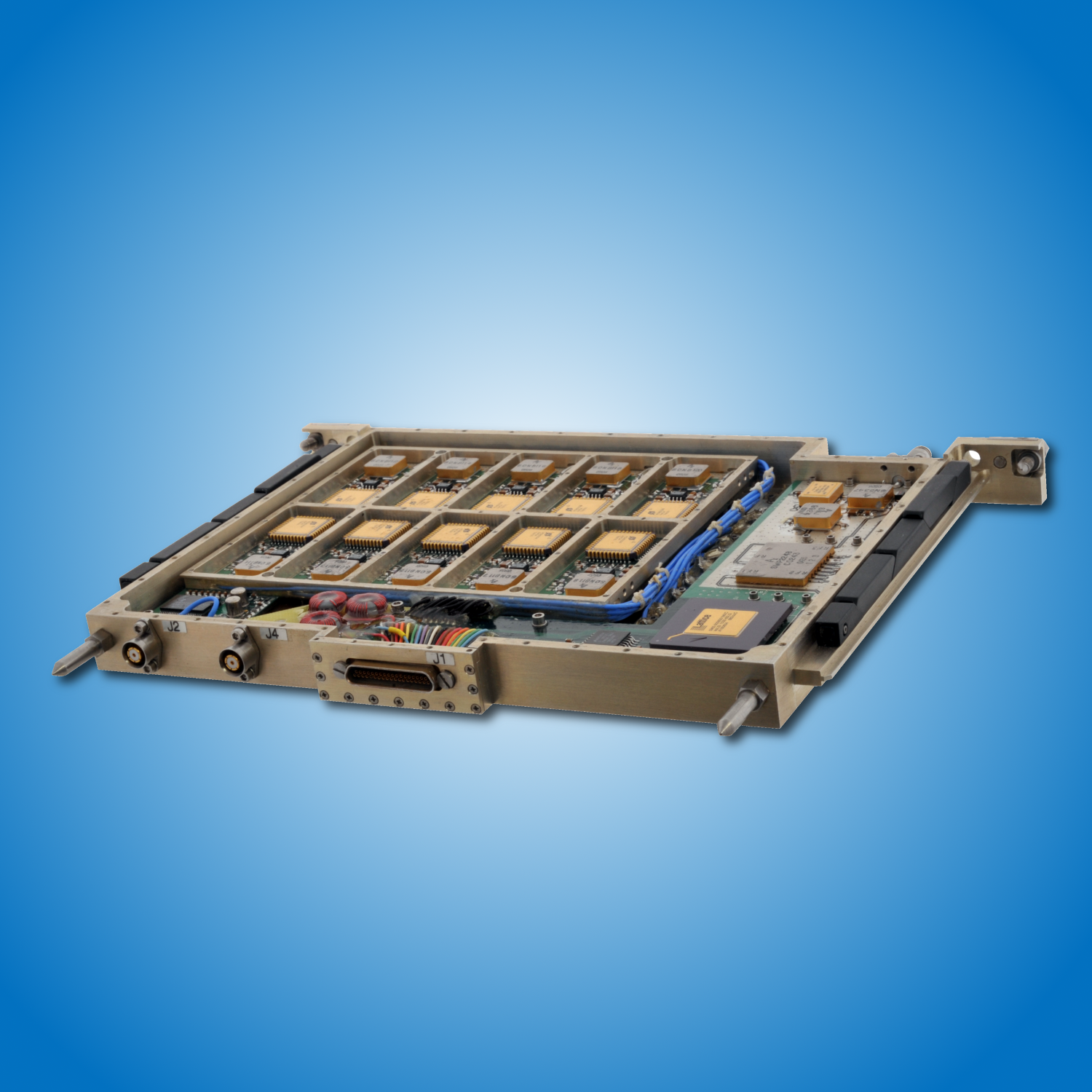

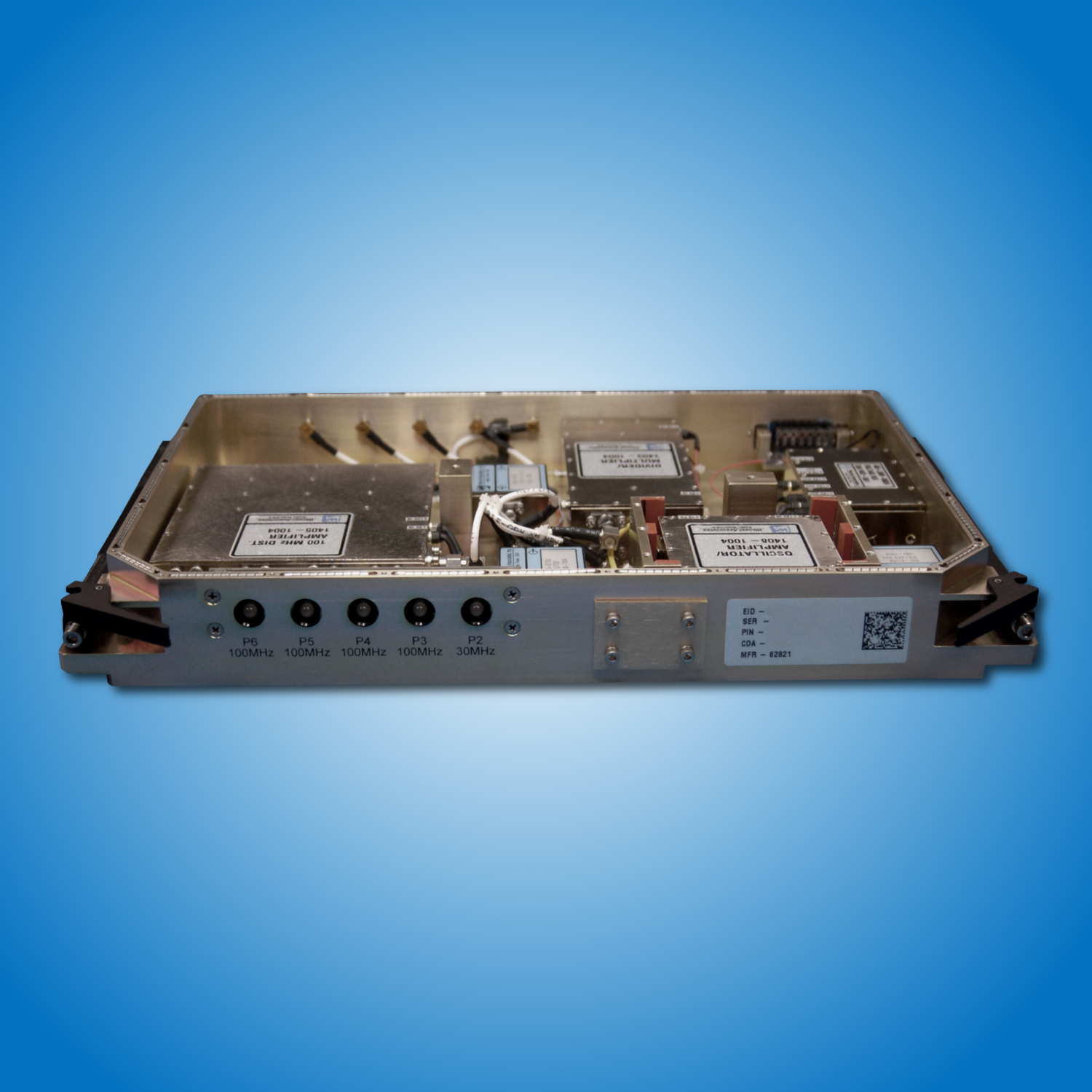

    Quantic Wenzel offers card assemblies in several standard form factors (OpenVPX, VME, VXI, etc.) as well as custom configurations to provide one or multiple low noise frequencies to 16 GHz. Each card assembly is comprised of one or more industry leading Ultra Low Noise Ovenized Crystal oscillators, Blue Tops RF Modules and other hardware mounted or integrated on a card assembly, to provide a high performance frequency source with unparalleled phase noise performance. These card assemblies can be plugged into the respective backplane platform and are suitable for use as a low noise frequency source or clocking signal as a key element in a system. Custom card assemblies are available with short development time and low cost.


    Featured Card Assembly:

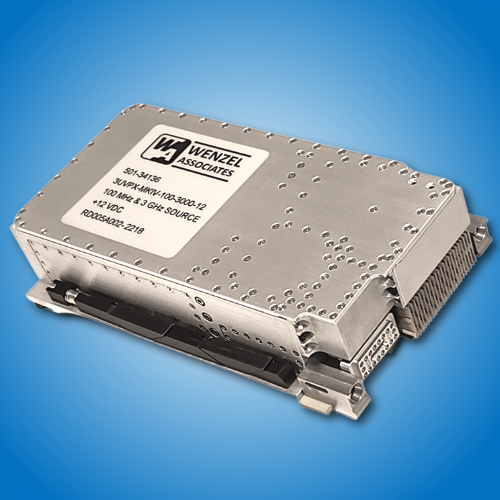

    3U OpenVPX

    Developed to meet VITA 67 technology standards, the 3U OpenVPX is SOSA aligned and environmentally sealed for exceptional phase noise performance. The 3U OpenVPX features low-g sensitivity and has a fixed frequency range of 100 MHz to 18 GHz.


    • OpenVPX Compliant
    • SOSA Aligned
    • VITA 67.X
    • VXO Vibration Isolation
    • 3U x 0.85″ Pitch


    Click here to learn more.


    Frequency Source or Frequency Conversion Modules

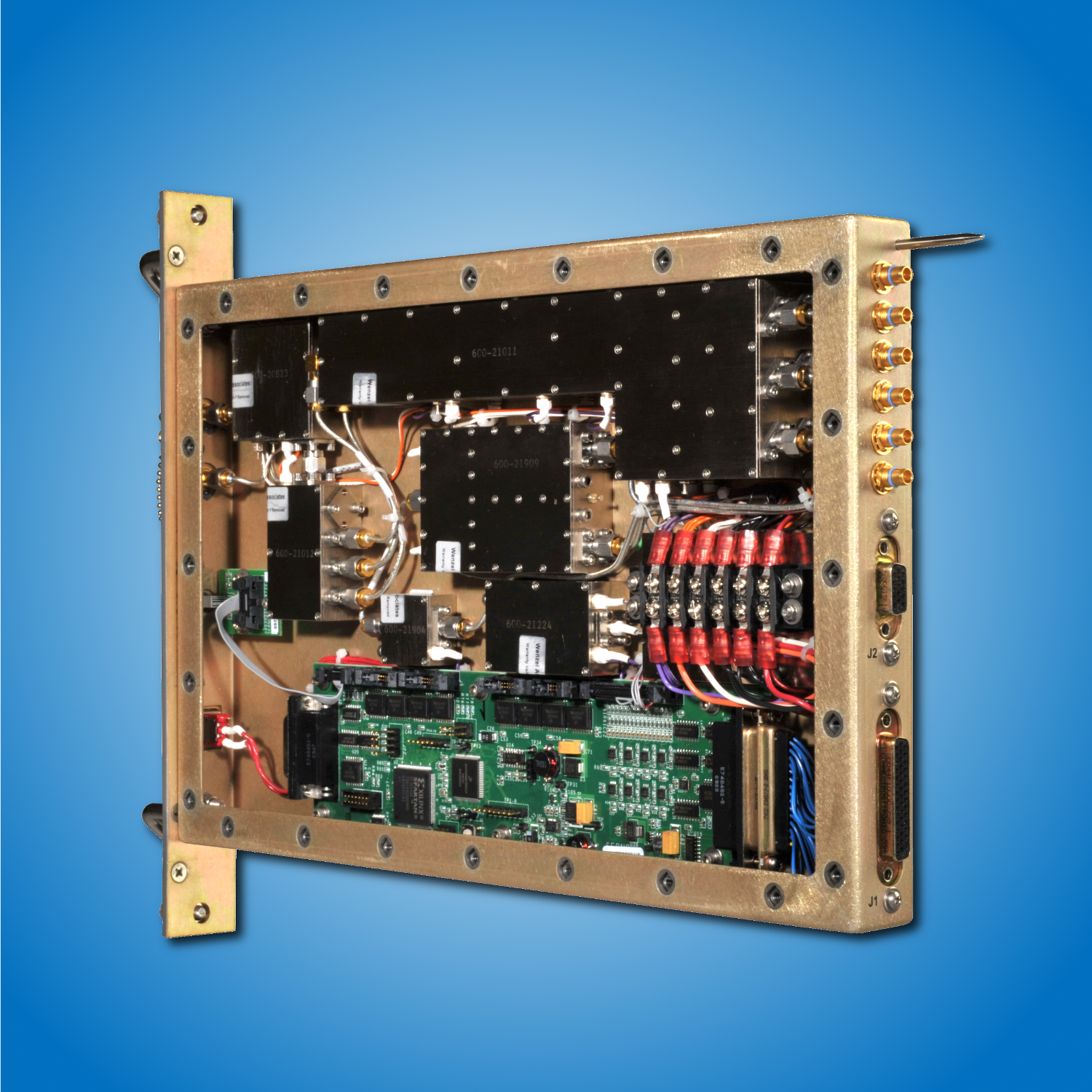

    VME, VXI, VPX and other Card Assembly Form Factors Available
    Customer Selected Frequencies from 5 MHz to 16 GHz
    Multiple Frequency / Multiple Output Options
    Low, Ultra Low & Golden Phase Noise Performance Options
    Phase Locking with External Reference Option
    Low Noise Voltage Regulator Option
    Supply Voltage: +12 VDC to +24 VDC, specify


    Radar Systems
    Communication Systems
