    Plate Assemblies

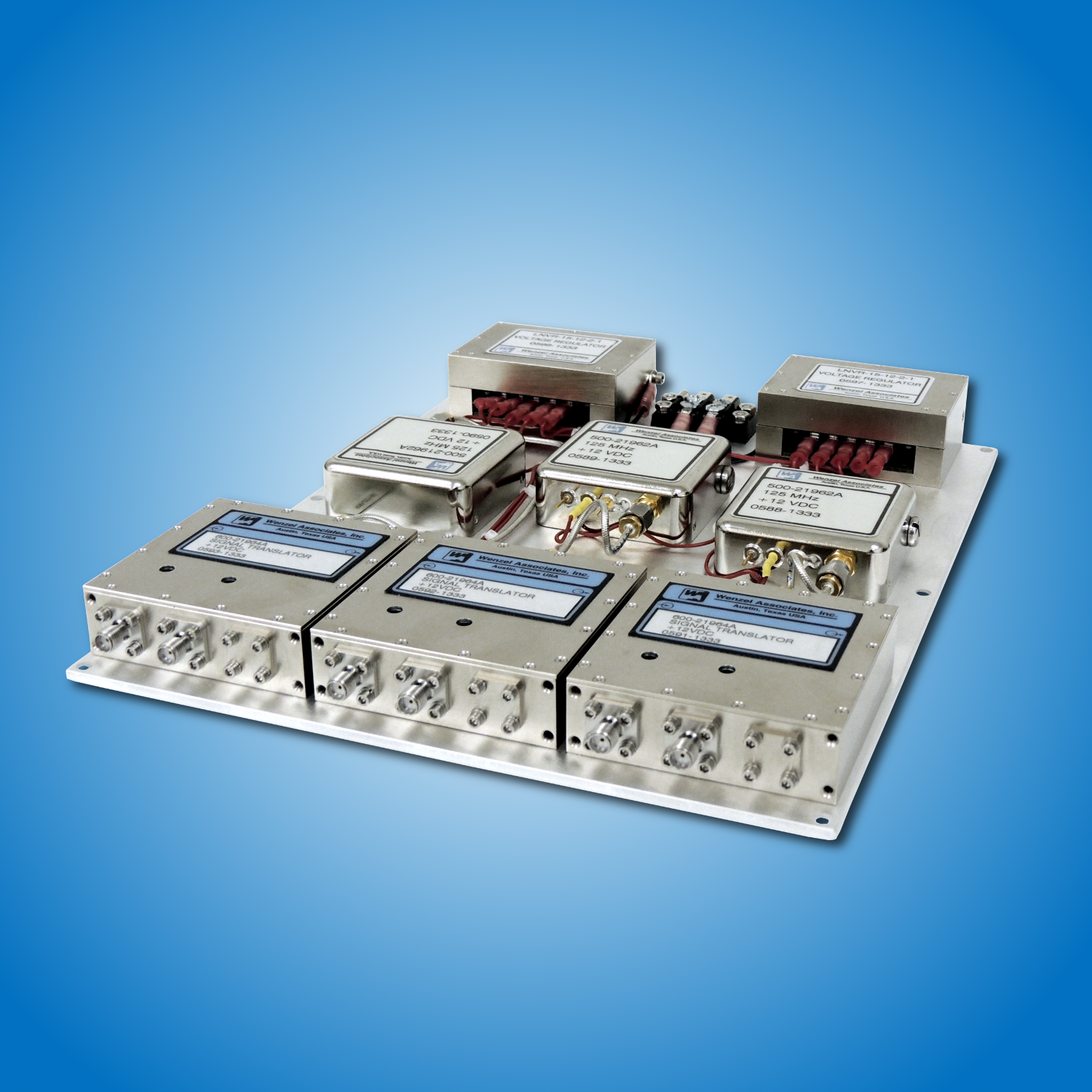

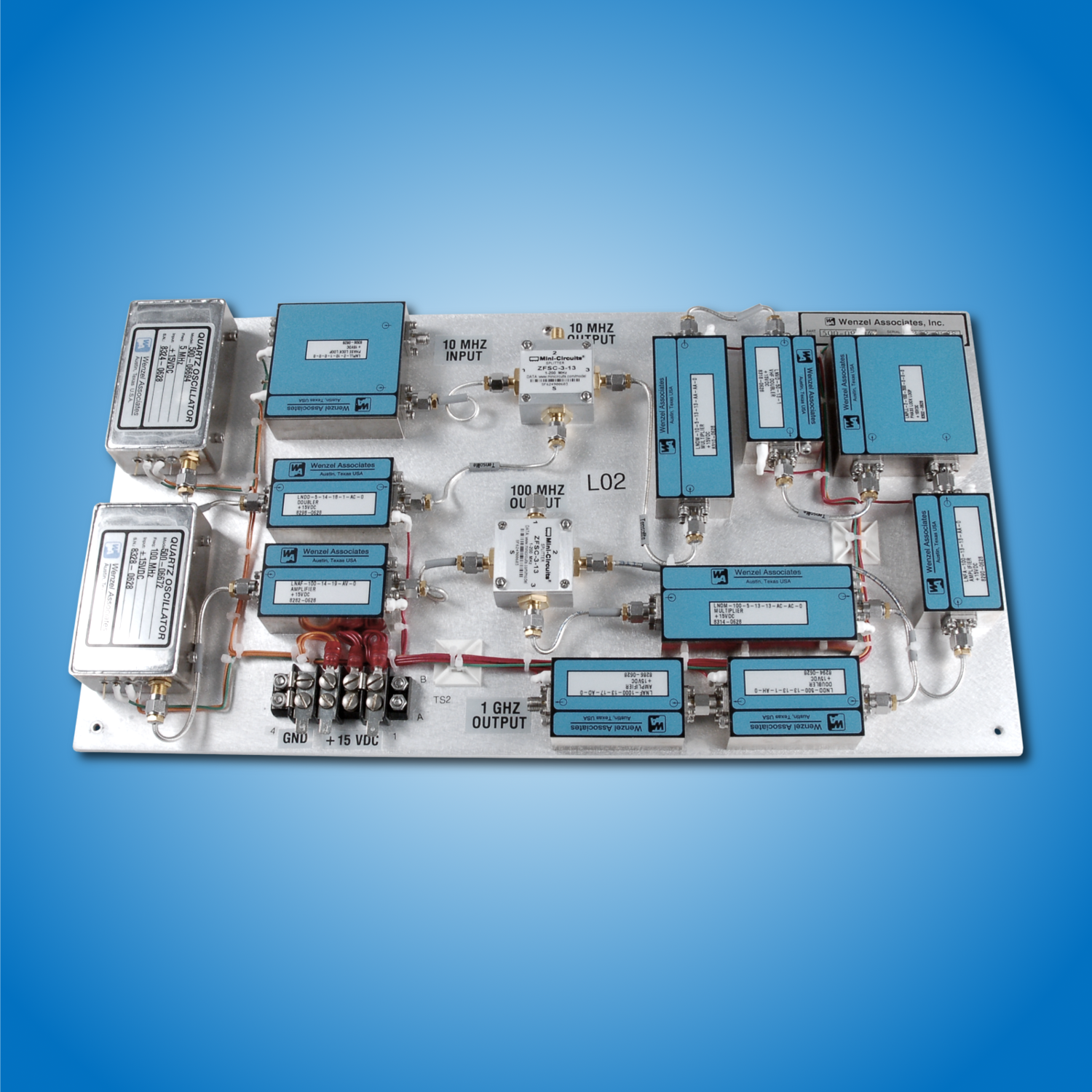

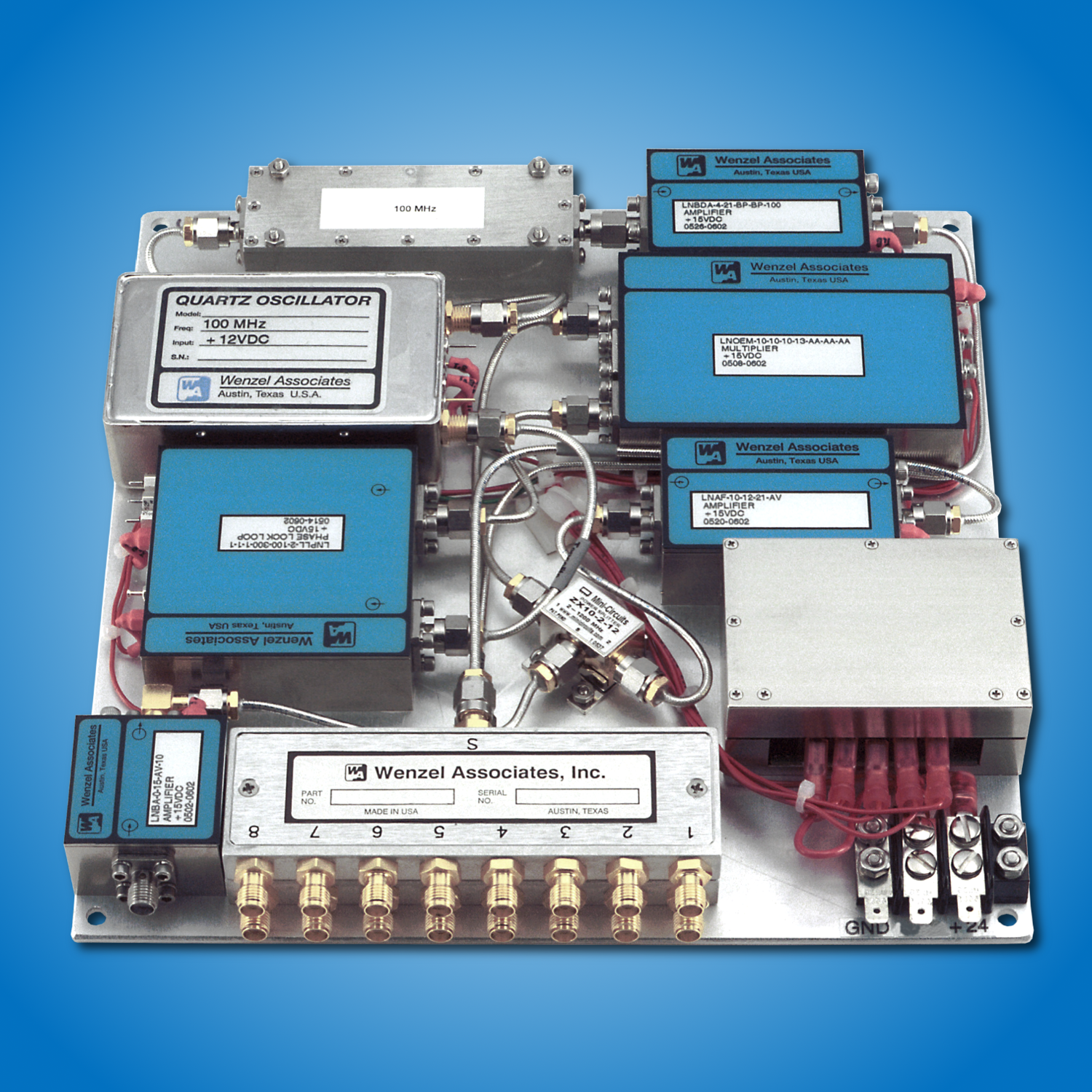

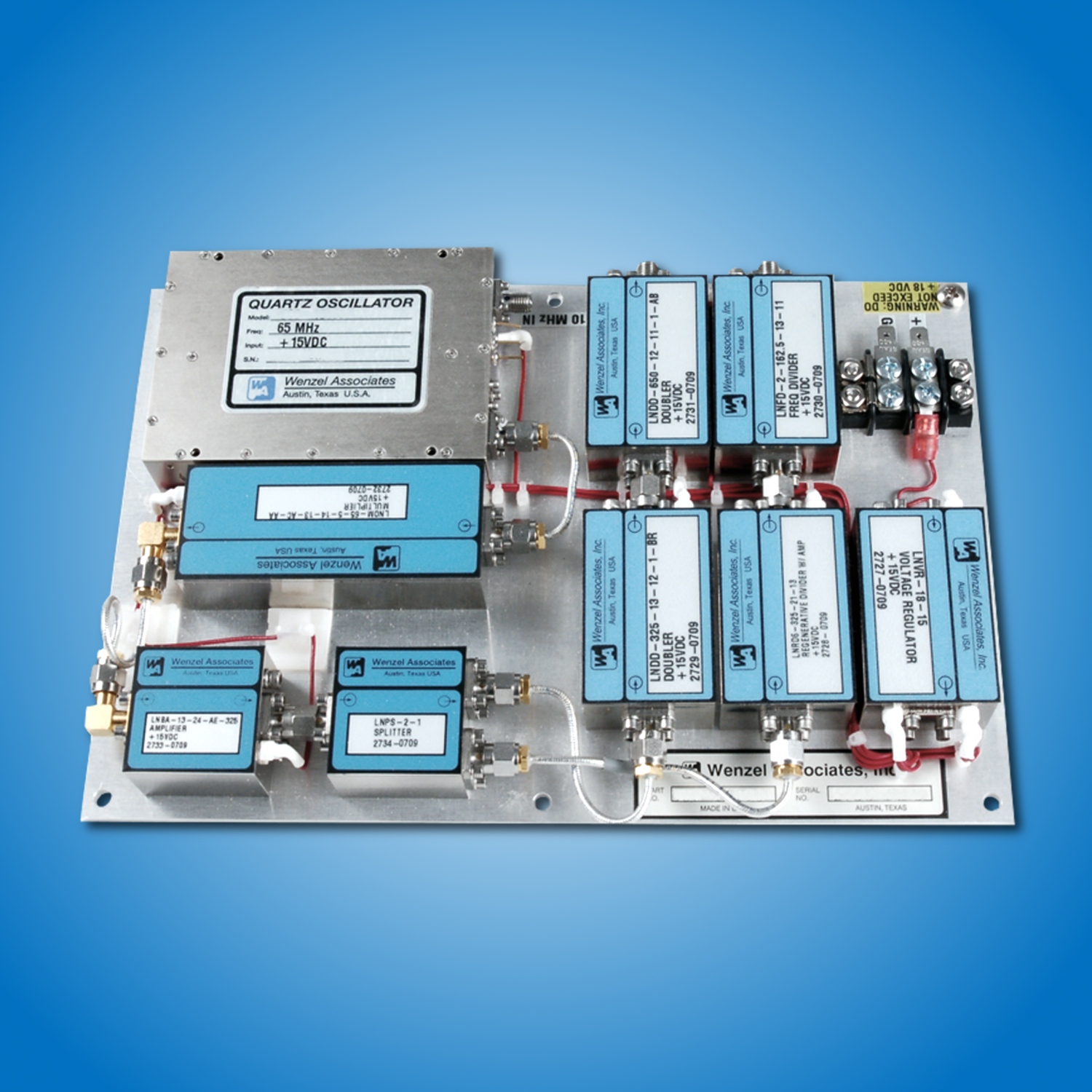

    Wenzel Associates’ offers plate assemblies which are comprised of one or more industry leading Ultra Low Noise Ovenized Crystal oscillators, Blue Tops RF Modules and other hardware mounted on an aluminum plate, to provide a high performance frequency source with unparalleled phase noise performance at frequencies to 16 GHz. These plates are suitable for use as a bench top frequency standard or mounting within a larger assembly as part of a system. Custom plate assemblies are available with short development time and low cost.


    Crystal Oscillator(s) and/or RF Modules Mounted on an Aluminum Plate
    Customer Selected Frequencies from 5 MHz to 16 GHz, fixed
    Multiple Frequency / Multiple Output Options
    Low, Ultra Low & Golden Phase Noise Performance Options
    Phase Locking with External Reference Option
    Low Noise Voltage Regulator Option
    Supply Voltage: +12 VDC to +24 VDC, specify


    Bench Reference
    Radar Systems
    Communication Systems
