Model	Description	Application	Phase Noise (100 kHz)	Size

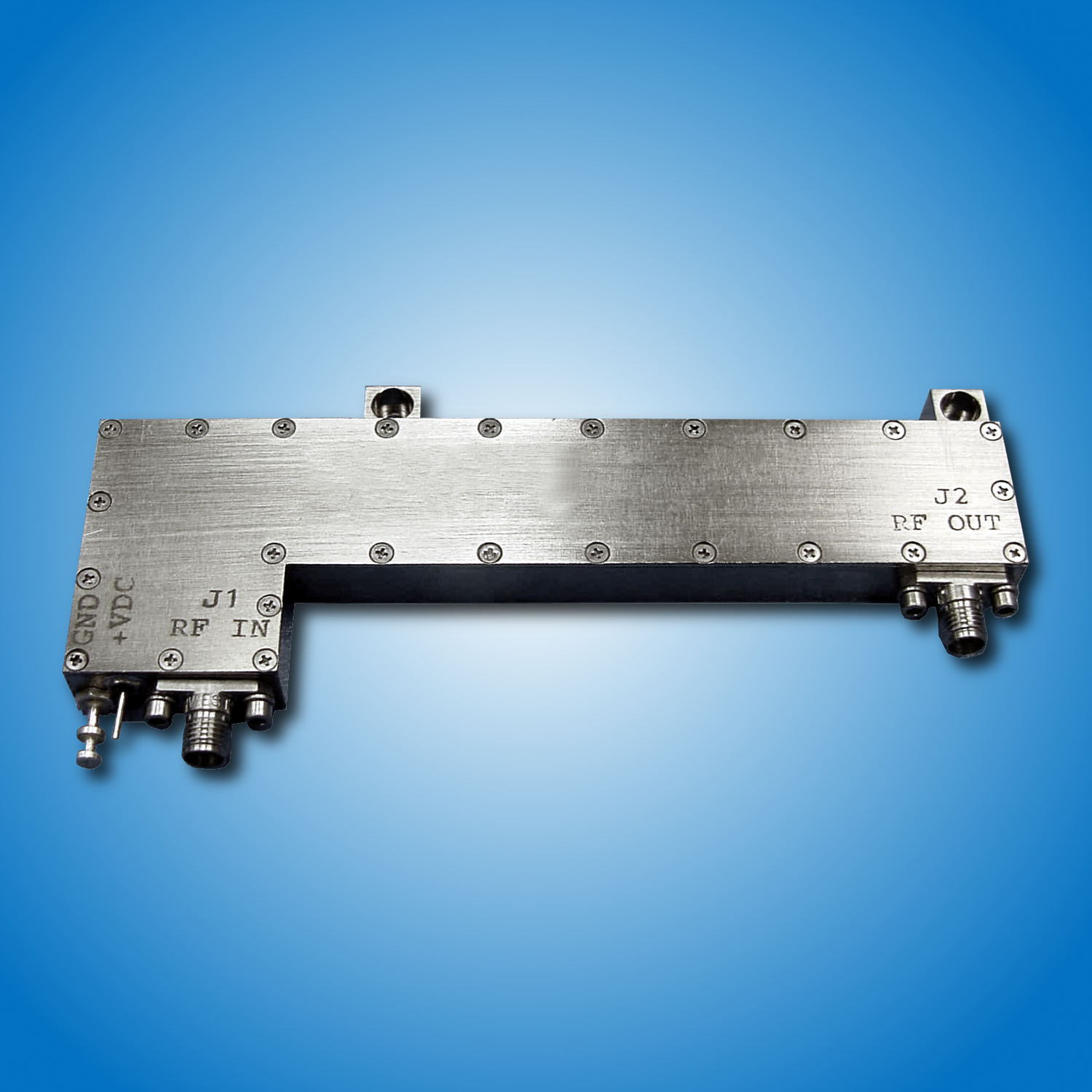

Doubler Filter Custom Assembly	100 MHz Frequency Multiplier (x2) and Filter Module Input: Sine, +13 dBm to +18 dBm Output: Sine, +27 dBm ±1 dB Low Intrinsic Phase Noise to -165 dBc/Hz Excellent Spectral Purity Harmonics <-50 dBc; Sub-Harmonics <-90 dBc Nickel-Plated Machined Aluminum Housing Designed for Minimal RF Leakage Screened to MIL Requirements COTS Discrete Component Construction Built to Customer SCD Includes Low Noise Voltage Regulator Supply Voltage: +15 VDC	Military Applications Airborne, Ground, Shipboard	to -165 dBc/Hz, intrinsic	1.5 x 4.85 x 0.4"

Model	Description	Application	Phase Noise (100 kHz)	Size

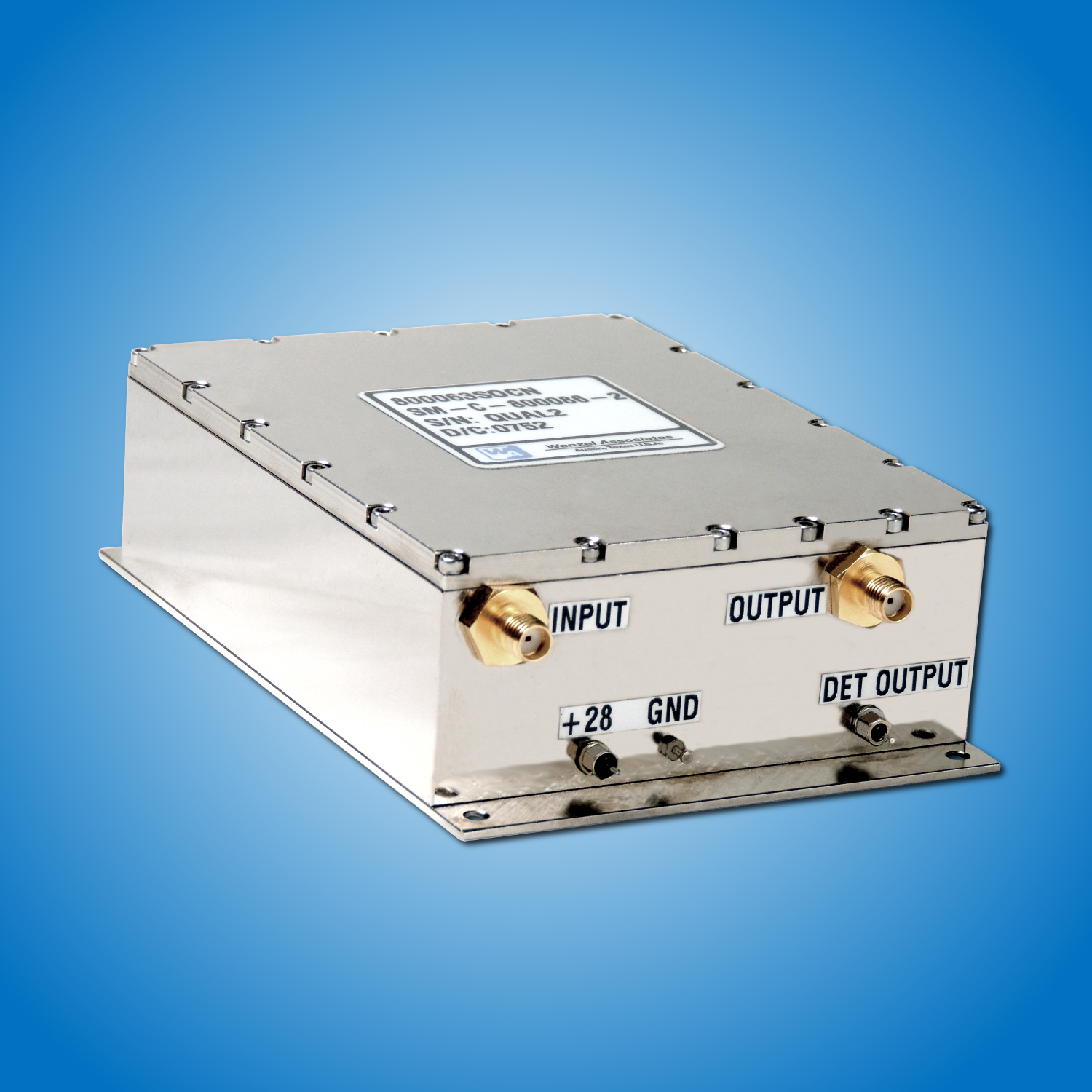

x16 Custom Multiplier Module	550 MHz ±3% Frequency Multiplier (x16) Output Frequencies to 8800 MHz ±3% Input: Sine, +12 dBm ±1 dB Output: Sine, +12 dBm ±1 dB Excellent Spectral Purity Harmonics <-60 dBc; Sub-Harmonics <-80 dBc Nickel-Plated Machined Aluminum Housing Designed for Minimal RF Leakage Screened to MIL Requirements COTS & Established Reliability Discrete Component Construction Built to Customer SCD Includes Low Noise Voltage Regulator Supply Voltage: +28 VDC	Mobile Radar System	to -140 dBc/Hz, intrinsic	3.5 x 5.25 x 1.5"

Model	Description	Application	Phase Noise (100 kHz)	Size

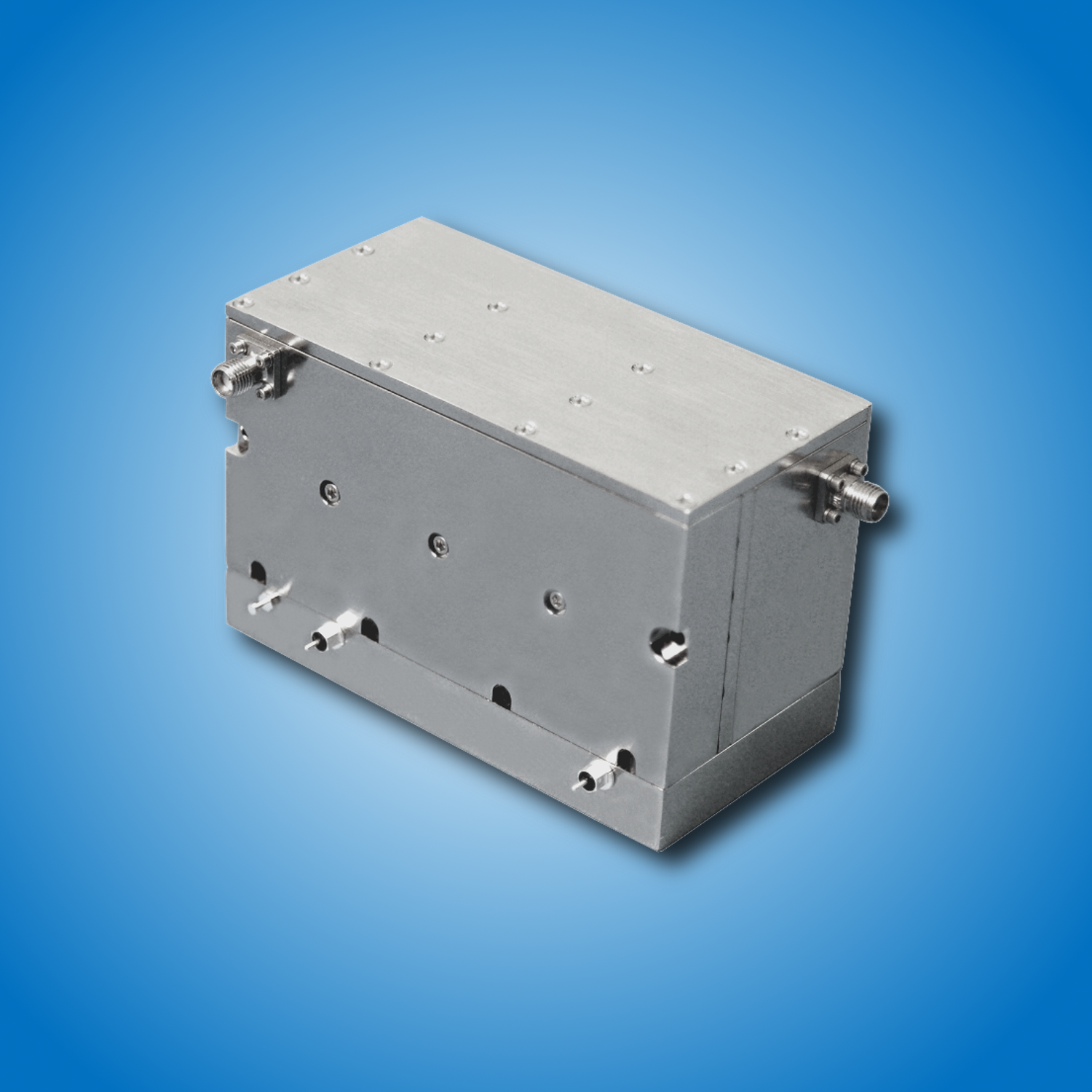

x24 Custom Multiplier Module	100 MHz to 109 MHz Frequency Multiplier (x24) Output Frequencies: 2400 MHz to 2616 MHz Input: Sine, +7 dBm ±3 dB Output: Sine, +20 dBm ±2 dB Excellent Spectral Purity Harmonics <-55 dBc; Sub-Harmonics <-70 dBc Nickel-Plated Machined Aluminum Housing Designed for Minimal RF Leakage Screened to MIL Requirements COTS Discrete Component Construction Built to Customer SCD Includes Low Noise Voltage Regulator Supply Voltage: +24 VDC	Shipboard Radar System	to -173 dBc/Hz, intrinsic	2 x 4 x 2.6"

Model	Description	Application	Phase Noise (100 kHz)	Size

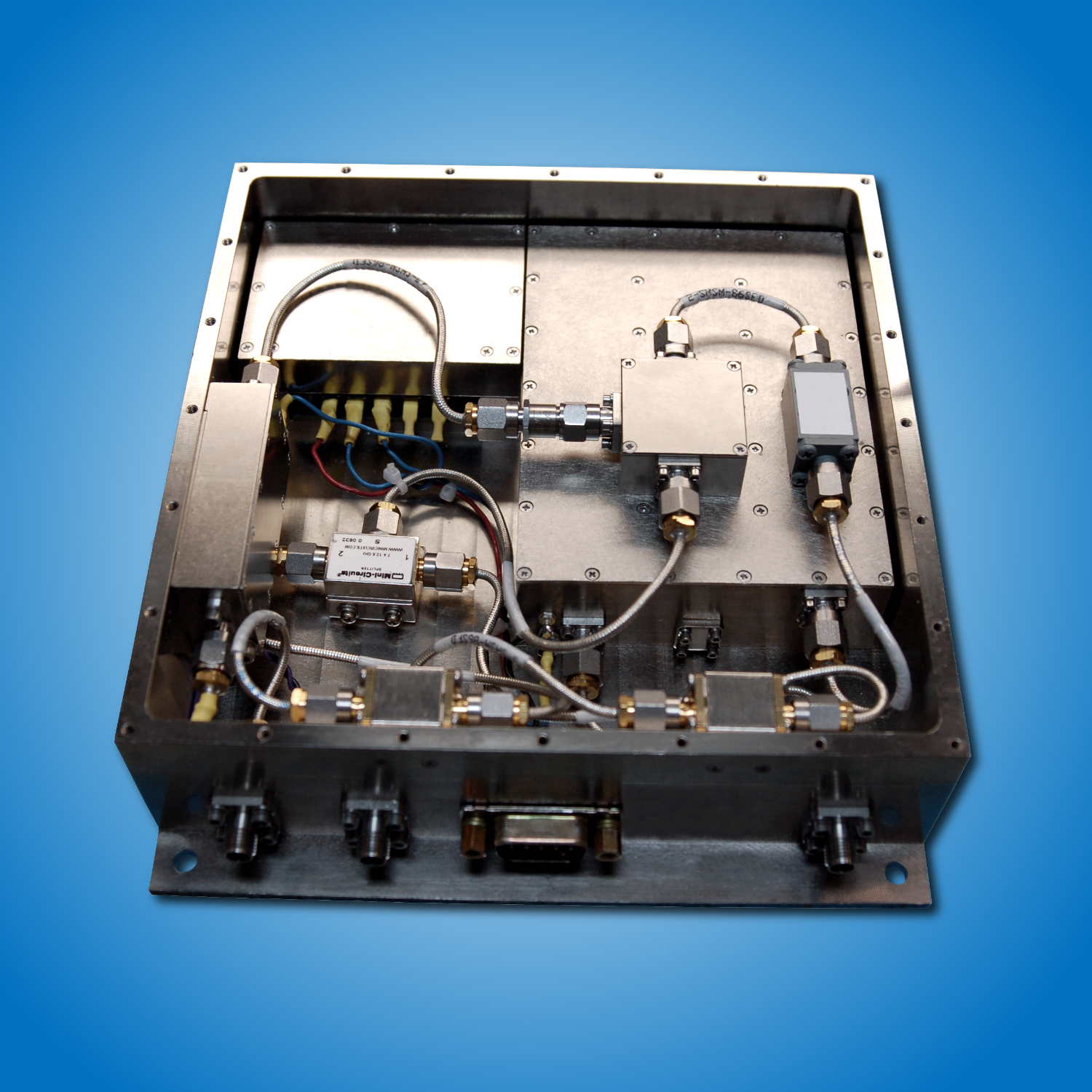

x48 Custom Multiplier Module	235 MHz ±1% Frequency Multiplier (x48) Dual Output Frequencies to 11,280 MHz ±1% Input: Sine, +10 dBm ±1.5 dB Output: Sine, +10 dBm ±1.5 dB Excellent Spectral Purity Harmonics <-60 dBc; Sub-Harmonics <-80 dBc Nickel-Plated Machined Aluminum Housing Designed for Minimal RF Leakage Screened to MIL Requirements COTS & Established Reliability Discrete Component Construction Built to Customer SCD Includes Low Noise Voltage Regulator Supply Voltage: +5 VDC & +15 VDC	Airborne Radar System	to -136 dBc/Hz, intrinsic	6 x 7 x 1.7"

Product :
Custom Frequency Conversion Modules
