• Product Model:

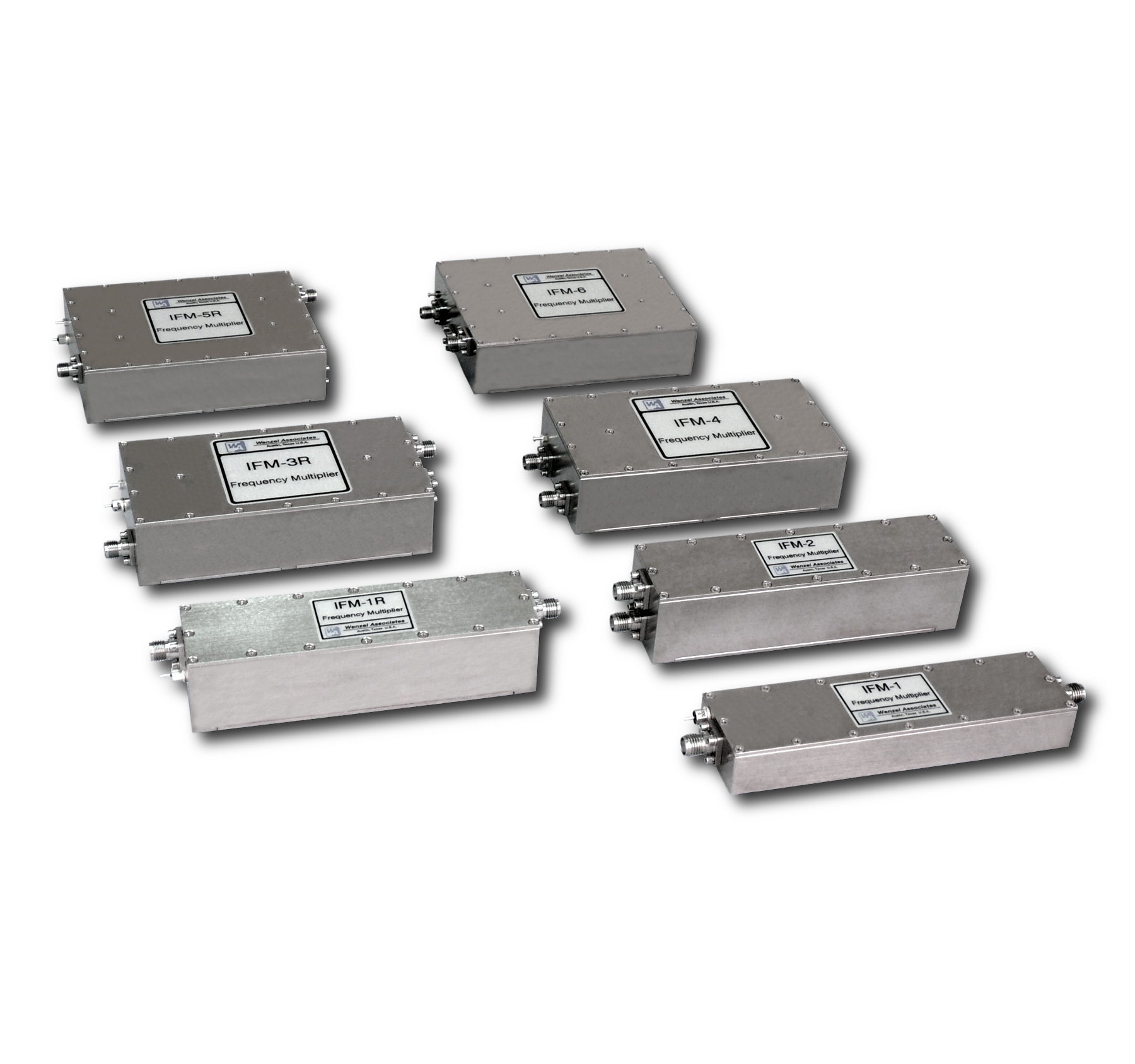

    IFM Series (Outputs to 16 GHz)



    The IFM Series products are low noise multiplier modules which are highly integrated with filters, amplifiers and an optional voltage regulator into a single package and offer exceptionally low phase noise, excellent spectral purity and good conversion efficiency.  Multiplication factors of x2 to x3200 are available using a combination of up to six (6) standard multipliers (x2, x3, x4, x5, x7, x9 and x11) cascaded together with output frequencies to 16 GHz. Ideal for up-converting ultra low noise frequency sources to higher frequencies.



    • Input Frequency: 5 MHz to 8 GHz
    • Multiplication Factors: x2 to x3200
    • Output Frequency to 16 GHz
    • Low Conversion Loss
    • Intrinsic Phase Noise to -176 dBc/Hz
    • Integral Filters and Amplifiers
    • Optional Low Noise Voltage Regulator




    • Synthesizer Building Block
    • Communication Systems
    • Radar Systems
    • Electronic Warfare Systems
    • Frequency Up-Converter


    Integrated Frequency Multipliers
    Multiplication Factors from x2 to x300
    Input Frequency from 5 MHz to 8 GHz, fixed
    Output Frequencies to 16GHz
    Intrinsic Phase Noise Floor to -176 dBc/Hz (Input Referred)
    Integral Multipliers, Filters, Amplifiers and Optional Voltage Regulator
    Nickel-Plated Machined Aluminum Housing
    SMA(f) Input and Output Connectors, Standard
