The LNHQ is a fixed frequency HF quadrupler that combines two LNHD doublers into a single package. The quadrupler exhibits exceptionally low phase noise performance and low conversion loss, and incorporates specially selected FETs and an output bandpass filter. With a total power consumption of only 40 mA, the LNHQ is particularly useful in HF x4 multiplication applications where power is limited.

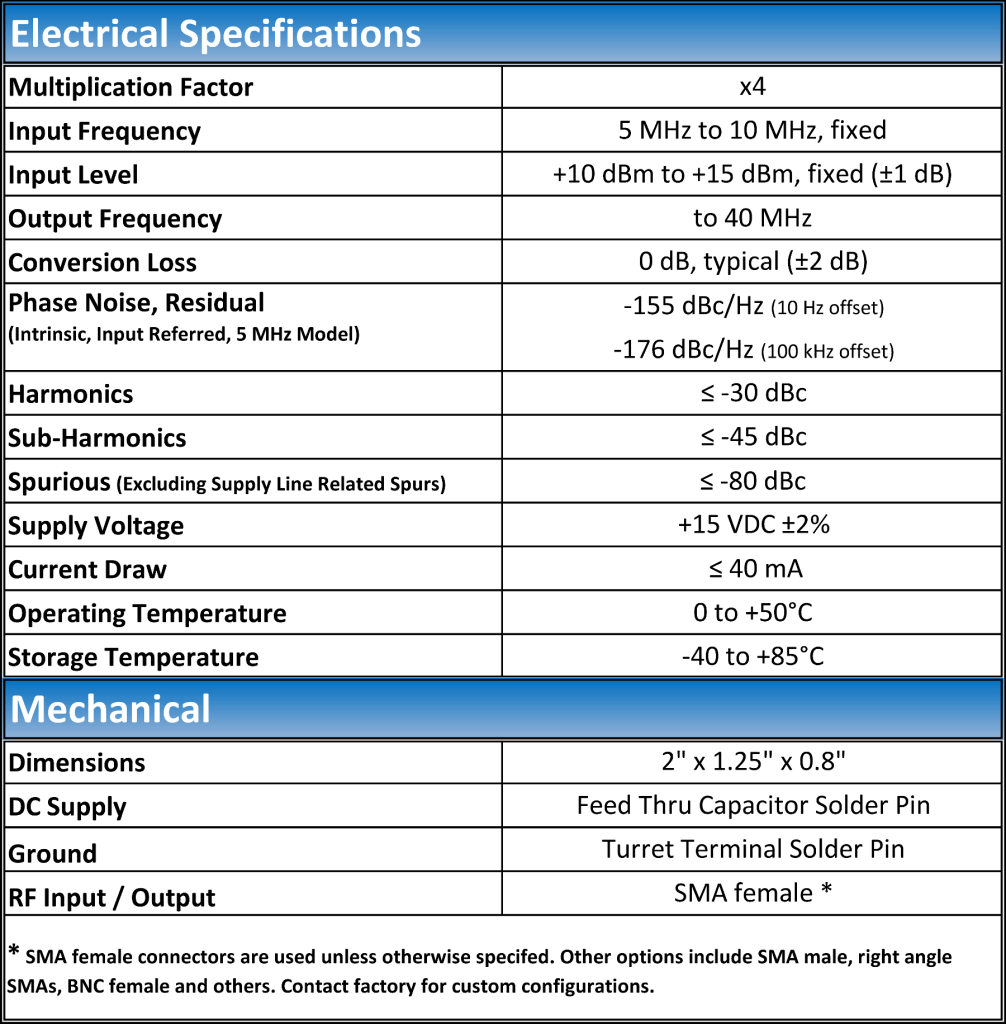

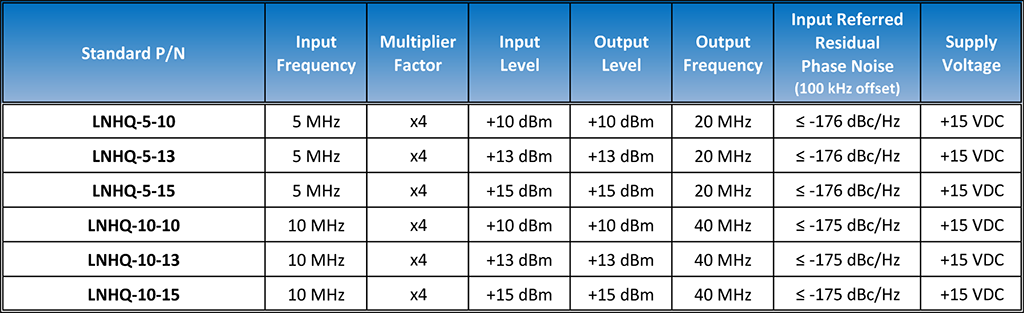

Low Noise HF Quadrupler
Multiplcation Factor: x4
Input Frequency from 5 MHz to 10 MHz, fixed
Output Frequencies to 40 MHz
Low Current Draw: ≤ 40 mA
Intrinsic Phase Noise Floor to -176 dBc/Hz (Input Referred)
Conversion Loss: 0 dB, typical
Integral Bandpass Filter
Supply Voltage Active Noise Filter

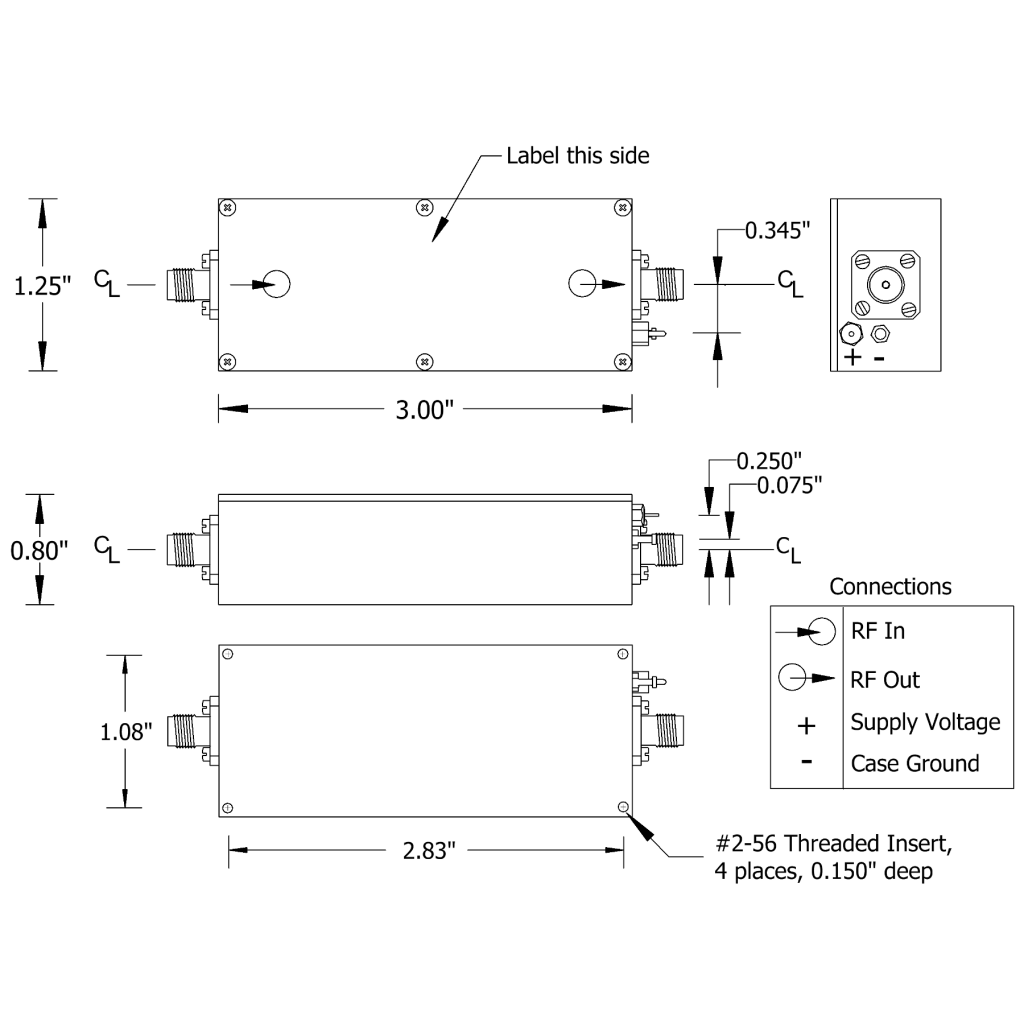

Nickel-Plated Machined Aluminum Housing
SMA(f) Input and Output Connectors, Standard
