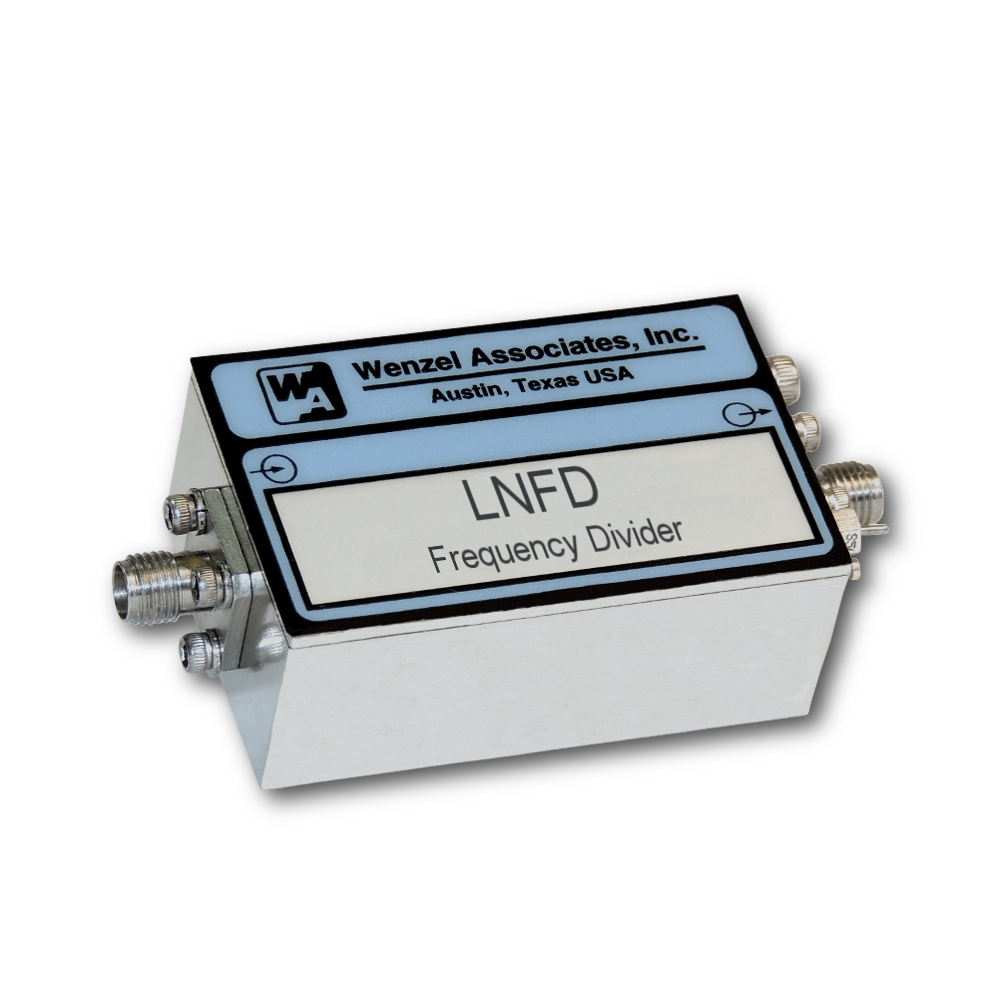

    Frequency Divider (LNFD)



    The LNFD is a frequency divider module with division factors of 2 or 4 for input frequencies up to 100 MHz. This module features a divider, an output bandpass filter for excellent harmonic suppression and a low noise voltage regulator for power supply spurious rejection, all integrated into a single housing. The output bandpass filter can be included as required or bypassed for a broadband response (TTL compatible square wave output).



    • Division Factors: 2 or 4
    • Output Waveform: Sine or Square
    • Intrinsic Phase Noise to -167 dBc/Hz
    • Optional Output Bandpass Filter
    • Low Power Consumption




    • Synthesizer Building Block
    • Communication Systems
    • Radar Systems
    • Electronic Warfare Systems


    Low Noise Frequency Divider
    Input Frequency from 5 MHz to 100 MHz, fixed
    Division Factors: Divide by 2 or 4
    Output Waveform: Sine or Square Wave
    Output Level: Up to +13 dBm
    Intrinsic Phase Noise Floor to -167 dBc/Hz (Output Referred)
    Integral Bandpass Filters and VReg
    Current Draw: 60 mA
    Nickel-Plated Machined Aluminum Housing
    SMA(f) Input and Output Connectors, Standard

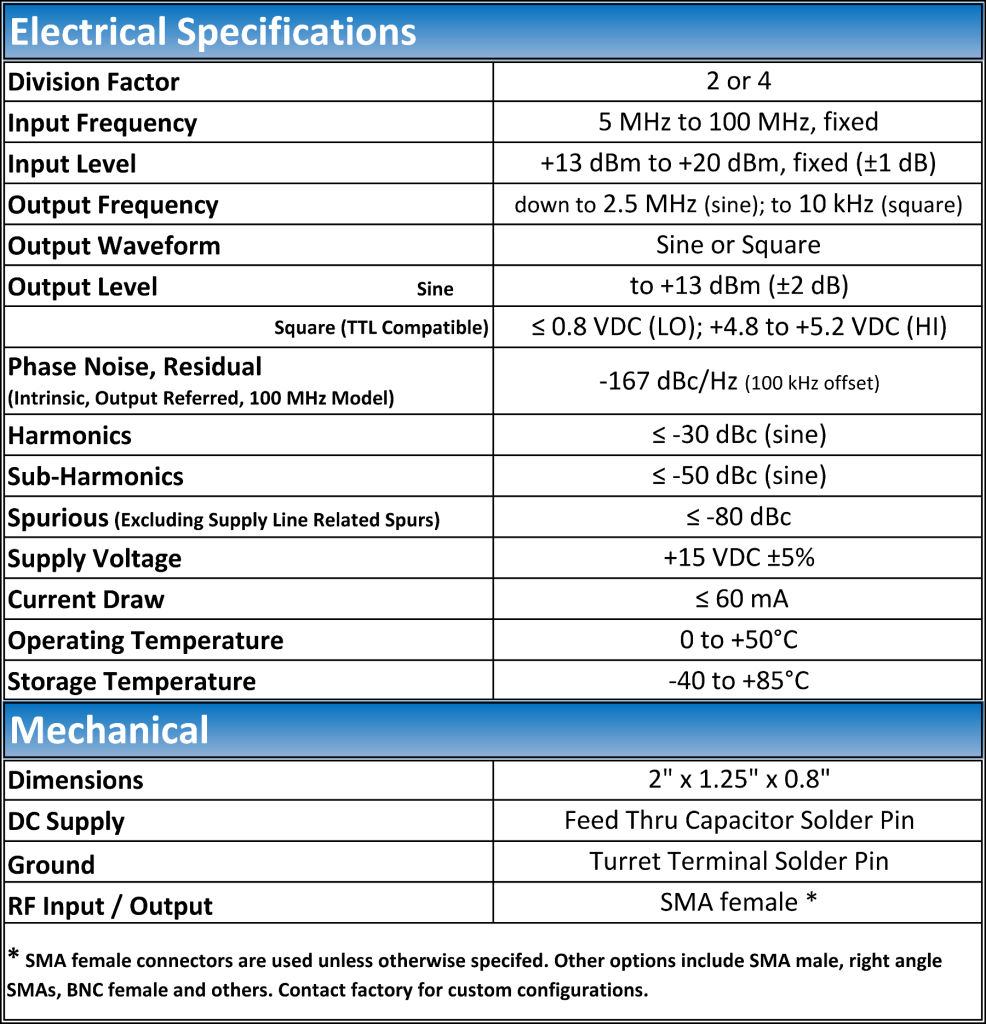

    Typical Specifications

    Mechanical Drawing

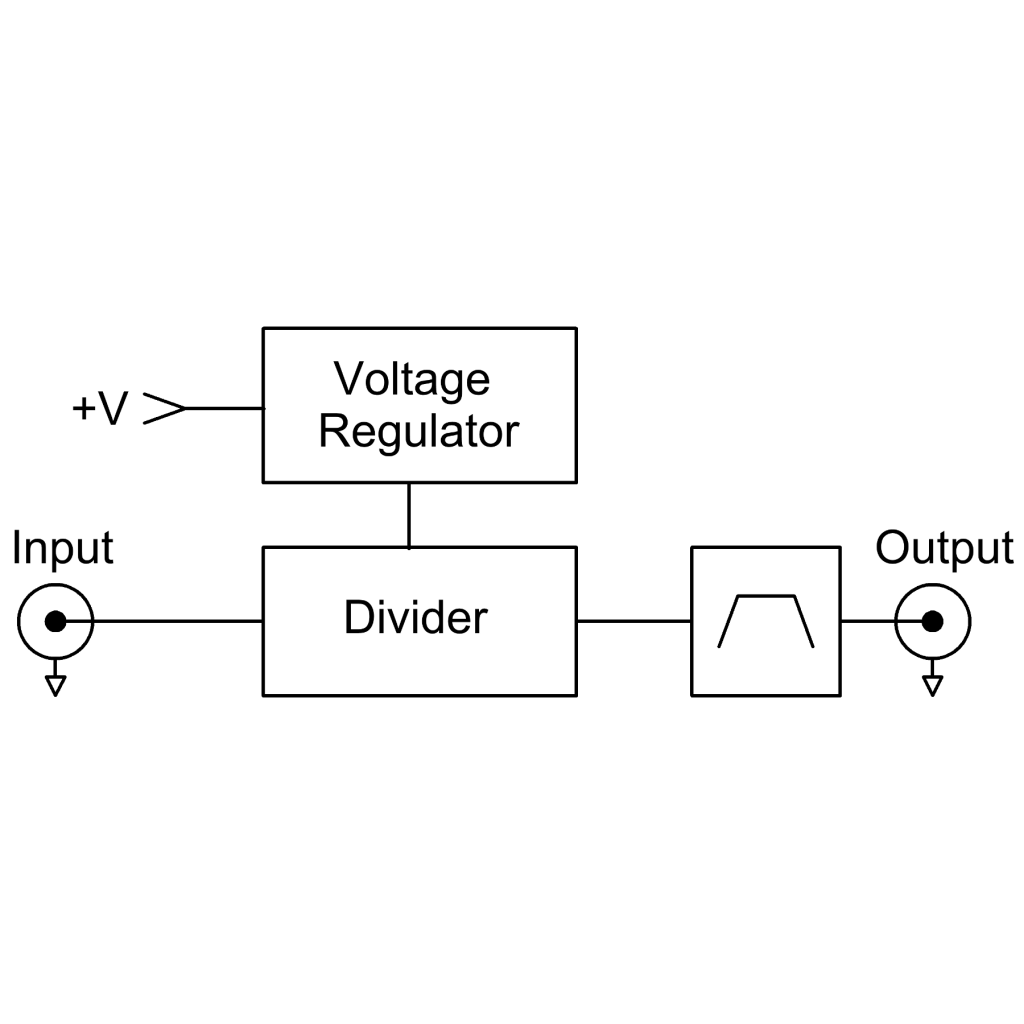

    Block Diagram

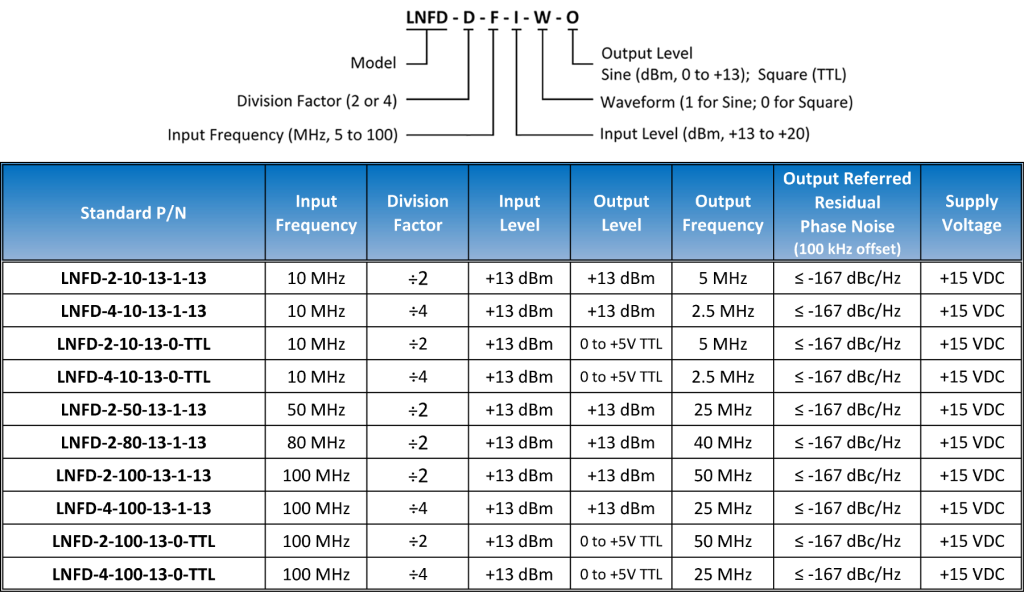

    Standard Frequency Divider Module Ordering Information
