• Product Model:
    Regenerative Divider (LNRD8)

    inner-page-bg
    product-vhf-banner-img
    product-vhf-banner-img

    DESCRIPTION

    The LNRD8 is a regenerative frequency divide-by-two module with one f/2 output. The input power can range from +10 to +13 dBm. Division is accomplished with a low noise mixer and amplifier yielding exceptional phase noise performance. The module includes the high-level mixer, filters, amplifier and power splitter. The typical output noise floor is -170 dBc/Hz (-168 dBc/Hz, guaranteed) and the close-in noise is significantly lower than the best crystal sources making the LNRD8 a nearly ideal frequency divider. This divider is designed for a fixed input frequency between 2 GHz and 12 GHz.



    FEATURES:

    • Input Frequency: 2 GHz to 12 GHz
    • Single (f/2) Output
    • Includes Input Amplifier
    • Intrinsic Phase Noise to -170 dBc/Hz
    • Integral Output Filters



    APPLICATIONS:

    • Synthesizer Building Block
    • Communication Systems
    • Radar Systems
    • Electronic Warfare Systems

    Features

    Low Noise Regenerative Divider (LNRD8)
    Input Frequency from 2 GHz to 12 GHz, fixed
    Division Factors: Divide by 2
    Input/Output Waveform: Sine Wave
    Input Level: +10 to +13 dBm
    Output Level: Up to +10 dBm
    Intrinsic Phase Noise Floor to -168 dBc/Hz (Output Referred)
    Integral Mixer, Filters, Amplifers and Splitter
    Current Draw: < 100 mA
    Nickel-Plated Machined Aluminum Housing
    SMA(f) Input and Output Connectors, Standard

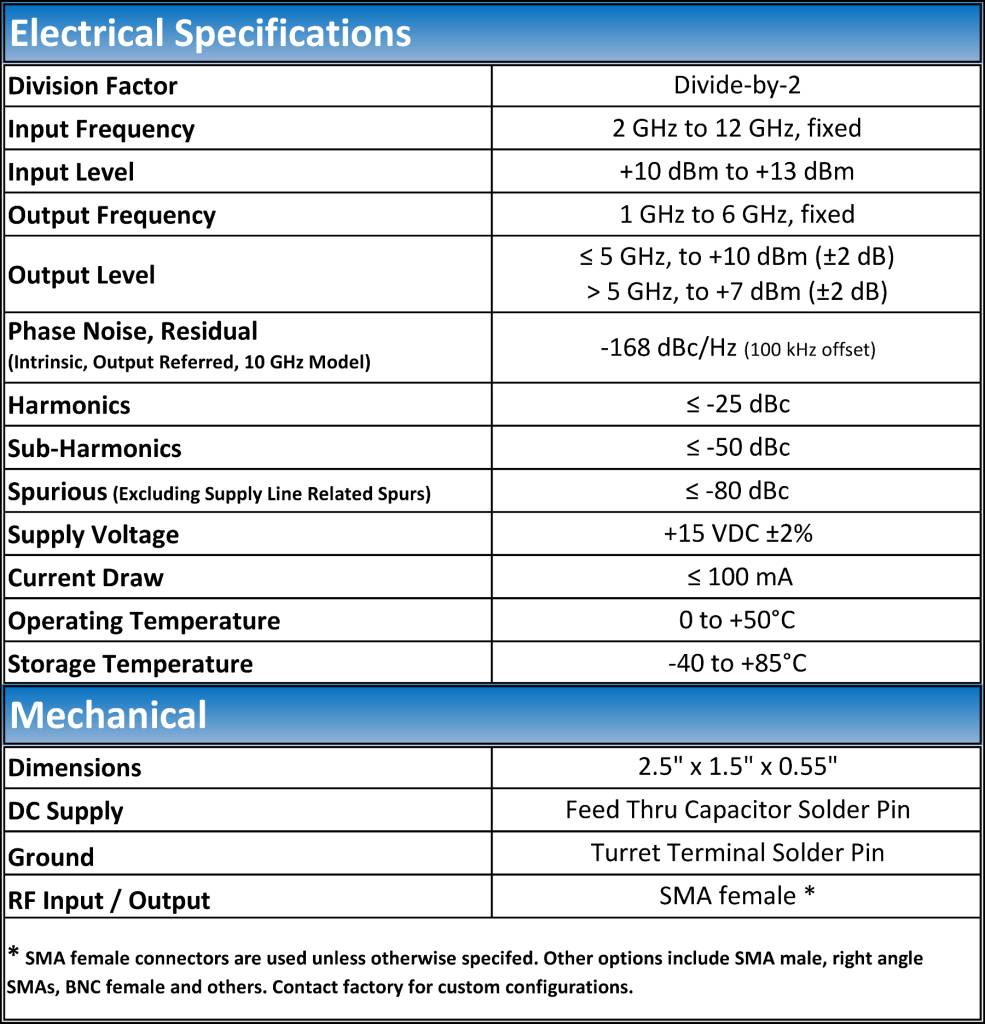

    Typical Specifications

    Mechanical Drawing

    Block Diagram

    Low Noise Regenerative Divider (LNRD8)

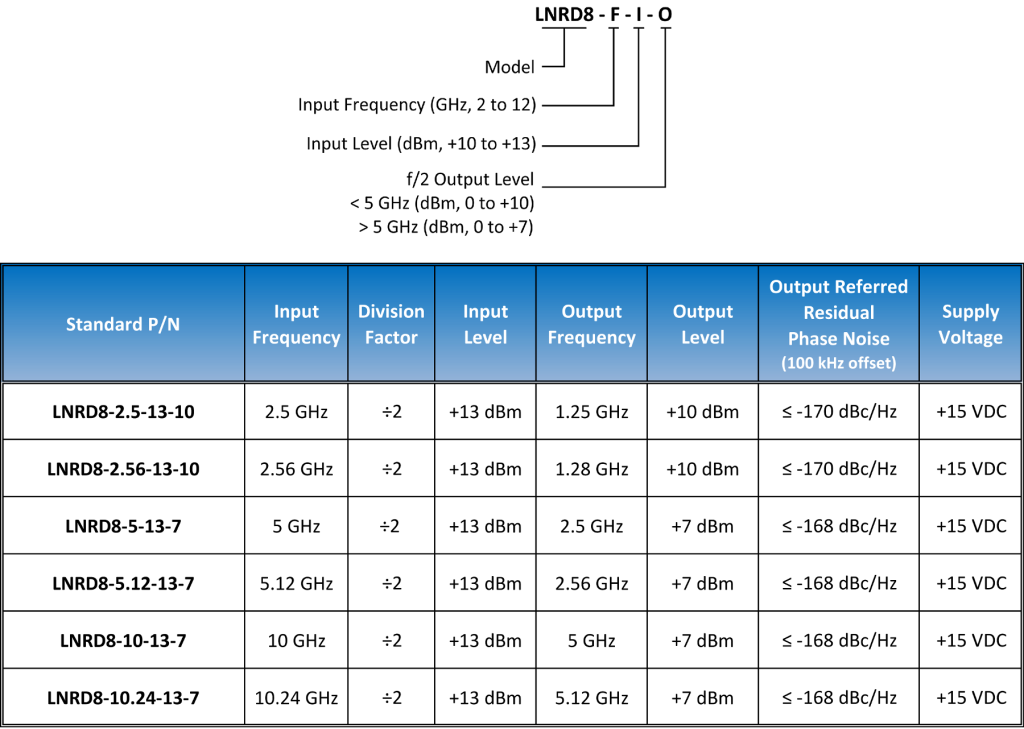

    Ordering Information
