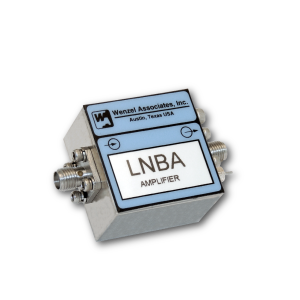

    DESCRIPTION

    The LNBA is a broadband amplifier that is characterized to a specific customer specified frequency within the operating band. A wide selection of common amplifiers and input/output attenuators provide flexibility in configuring gain and input/output levels (see amplifier selection table for options). Residual phase noise is verified at 100 MHz unless otherwise specified. Please consult our technical staff for assistance in configuring an amplifier to suit your input and output requirements.



    FEATURES:

    • Frequencies to 2 GHz
    • Characterized Phase Noise
    • Integral Attenuators for Flexibility



    APPLICATIONS:

    • Low Phase Noise Amplification
    • Broadband Amplification

    Features

    Low Noise Broadband Amplifier
    Input Frequency from DC to 2 GHz
    Intrinsic Phase Noise Floor to -178 dBc/Hz (Input Referred)
    Integral Attenuators for Flexibility and Customized Options
    Gain: Up to +25 dB on some models
    Output Level P1dB: Up to +26 dBm on some models
    Nickel-Plated Machined Aluminum Housing
    SMA(f) Input and Output Connectors, Standard

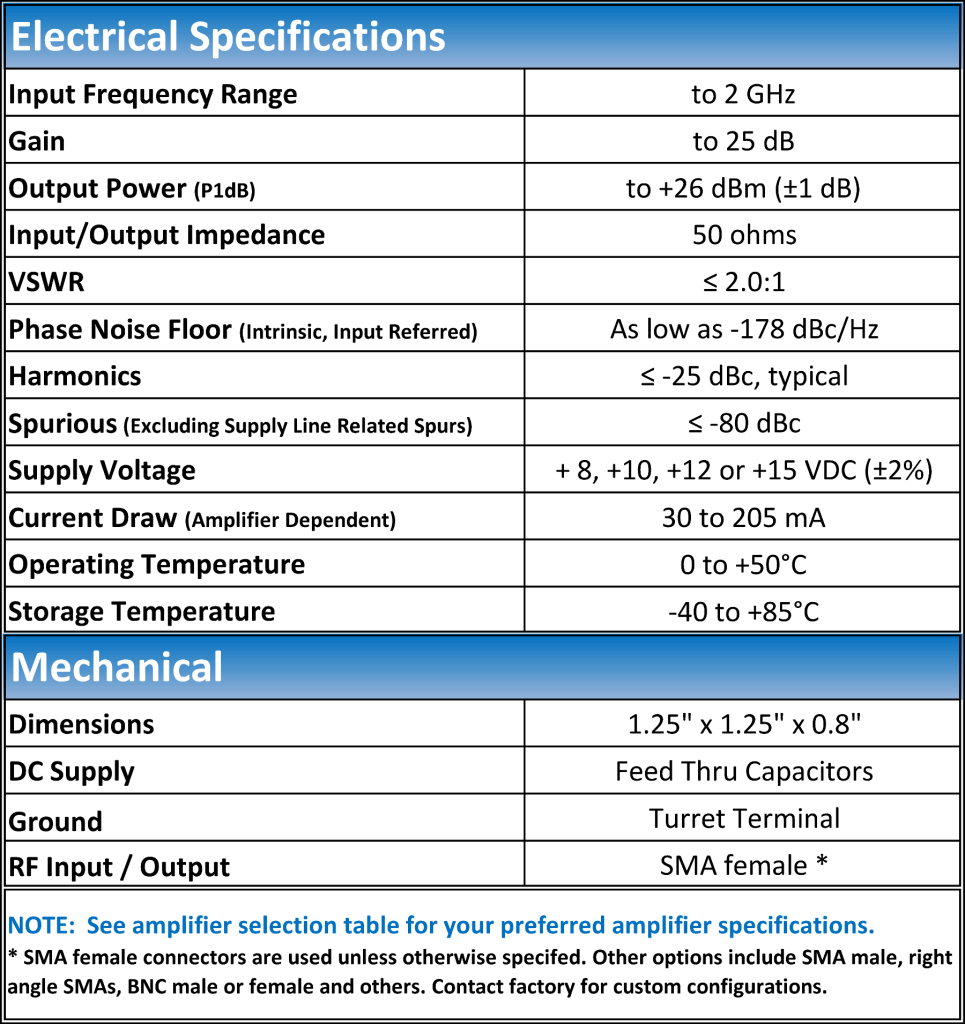

    Typical Specifications

    LNBA Specs

    Mechanical Drawing

    LNBA mechanical

    Block Diagram

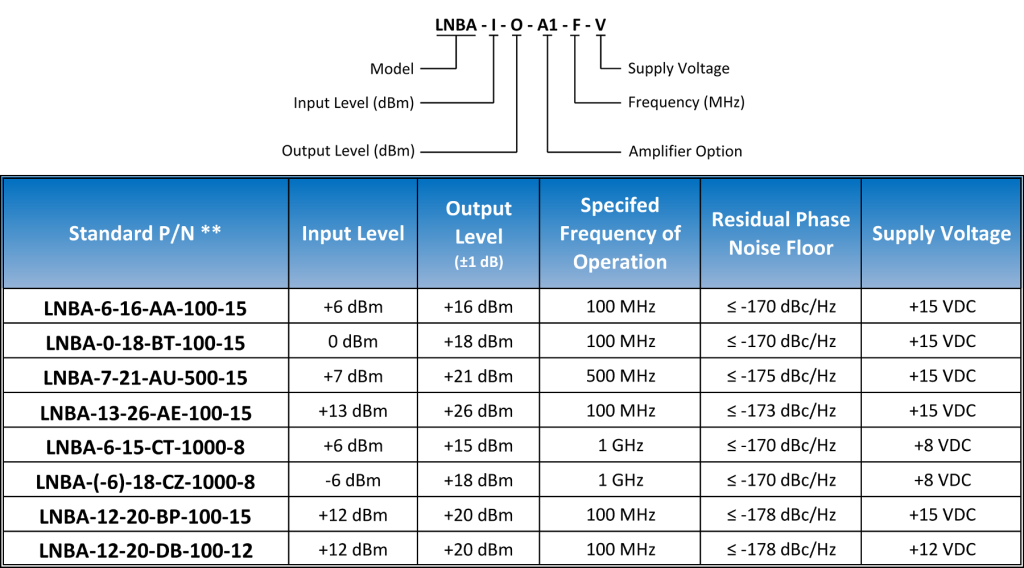

    Ordering Information

    lnba standard oi

    ** These part numbers are a few common configurations. Use the Ordering Information guide and theAmplifier Selection Table for additional amplifier options or consult the factory for assistance.

    Standard Amplifier Options

    standard amplifying options

    *** See the completeAmplifier Selection Table for additional amplifier options.
