    Distribution Amplifier (LNDA-10)



    The LNDA-10 is a high performance 10-way frequency distribution amplifier designed to distribute HF ULN crystal oscillator or other low phase noise source signals and features a phase noise floor as low as  -178 dBc/Hz intrinsic at the 100 kHz offset. The distribution amplifier operates on +15 VDC and includes a low noise voltage regulator for excellent power supply line rejection.



    • 5 MHz and 10 MHz Standard
    • Ultra Low Phase Noise
    • Ten Isolated Outputs
    • Output Levels to +16 dBm
    • Integral Voltage Regulator



    • Frequency Distribution
    • Ultra Low Noise Signal Distribution
    • RF Systems Component


    Low Noise Distribution Amplifier (10-Way)
    Formerly Known as LNDA4
    Low Phase Noise Frequency Distribution
    5 MHz and 10 MHz Models Available
    Intrinsic Phase Noise Floor to -178 dBc/Hz (Input Referred)
    Integral Low Noise Voltage Regulator
    Conversion Gain: 0 ±1.5 dB into 50 ohms, typical
    Output Levels to +16 dBm, each port
    Port-to-Port Isolation: > 50 dB
    Nickel-Plated Machined Aluminum Housing
    SMA(f) Input and Output Connectors, Standard

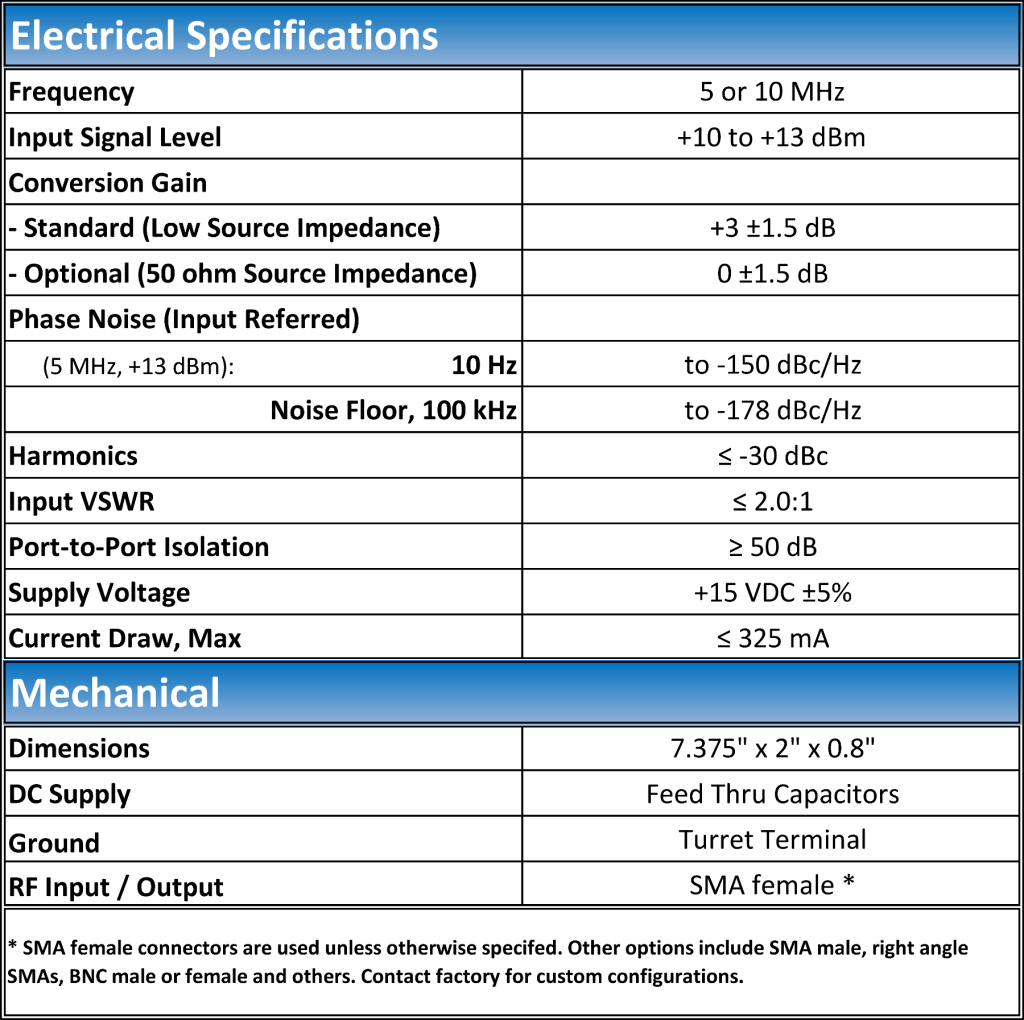

    Typical Specifications

    LNDA-10 Specs

    Mechanical Drawing

    LNDA-10 mechanical

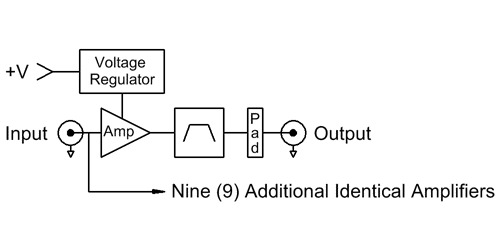

    Block Diagram

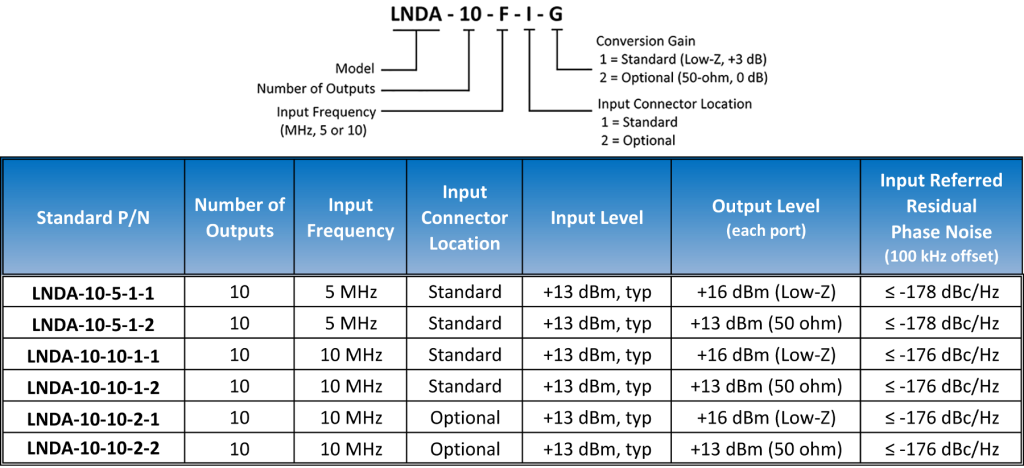

    Ordering Information

    lnda10 standard oi
