• Product Model:
    Distribution Amplifier (LNDA-6)

    inner-page-bg
    product-vhf-banner-img
    product-vhf-banner-img

    DESCRIPTION

    The LNDA-6 is a high performance frequency 6-way distribution amplifier designed to distribute HF ULN crystal oscillator or other low phase noise source signals and features a phase noise floor as low as -178 dBc/Hz intrinsic at the 100 kHz offset. The distribution amplifier operates on +15 VDC and includes a low noise voltage regulator for excellent power supply line rejection.



    FEATURES:

    • 5 MHz and 10 MHz Standard
    • Ultra Low Phase Noise
    • Six Isolated Outputs
    • Output Levels to +16 dBm
    • Integral Voltage Regulator



    APPLICATIONS:

    • Frequency Distribution
    • Ultra Low Noise Signal Distribution
    • RF Systems Component

    Features

    Low Noise Distribution Amplifier (6-Way)
    Formerly Known as LNDA8
    Low Phase Noise Frequency Distribution
    5 MHz and 10 MHz Models Available
    Intrinsic Phase Noise Floor to -178 dBc/Hz (Input Referred)
    Integral Low Noise Voltage Regulator
    Conversion Gain: 0 ±1.5 dB into 50 ohms, typical
    Output Levels to +16 dBm, each port
    Port-to-Port Isolation: > 50 dB
    Nickel-Plated Machined Aluminum Housing
    SMA(f) Input and Output Connectors, Standard

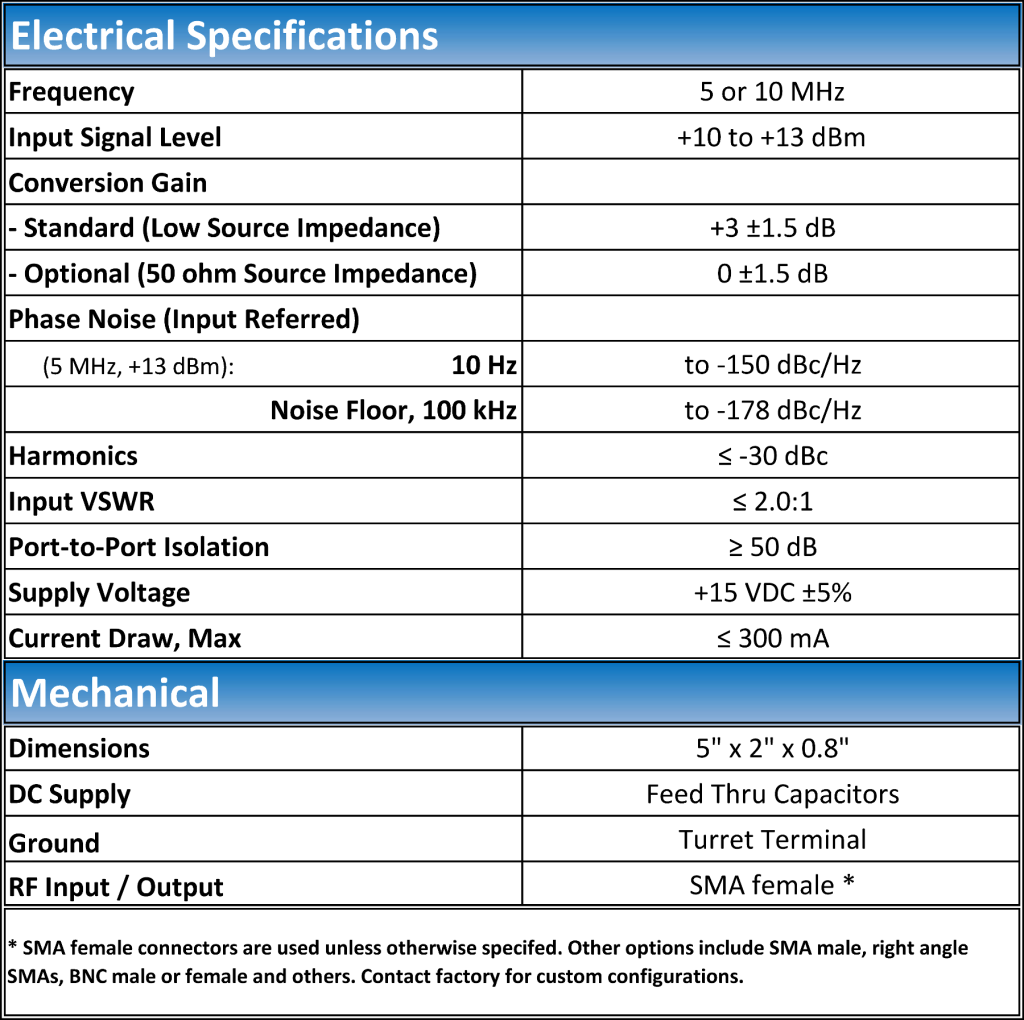

    Typical Specifications

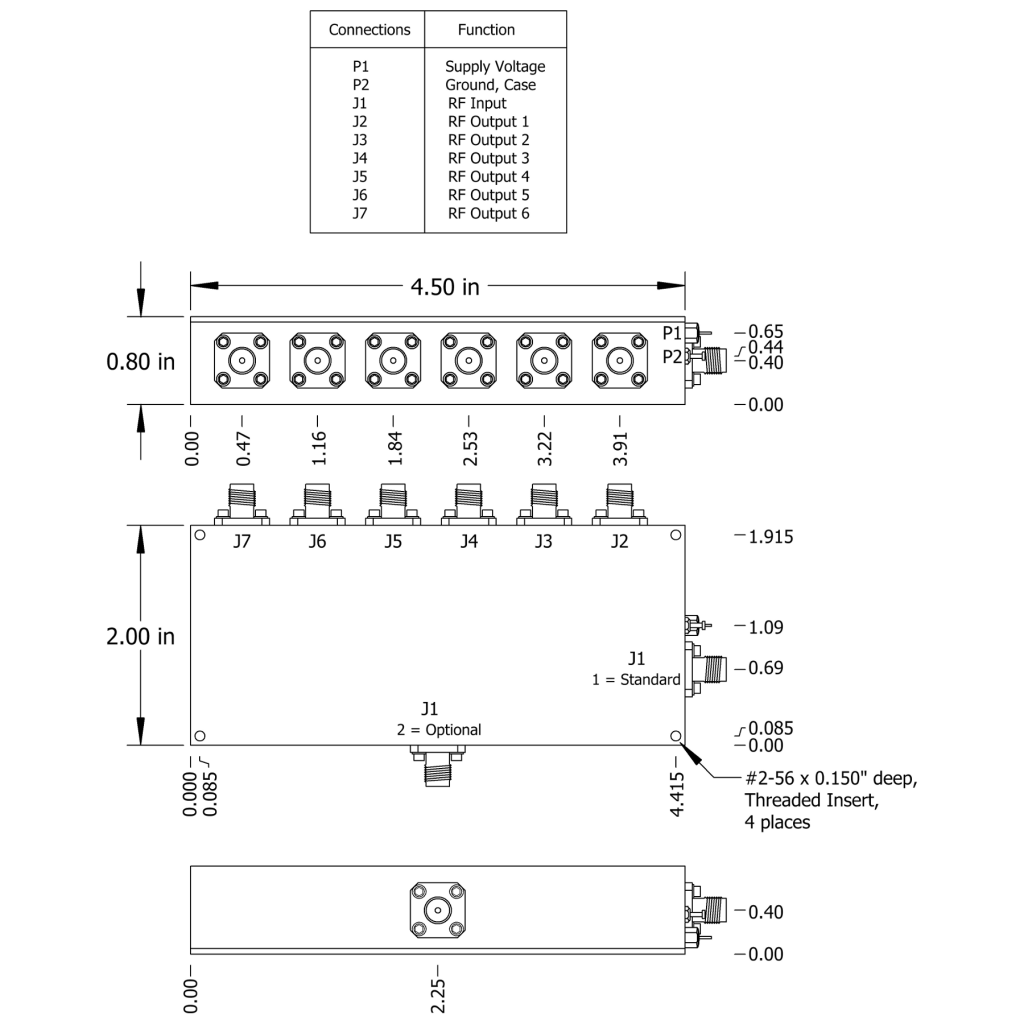

    Mechanical Drawing

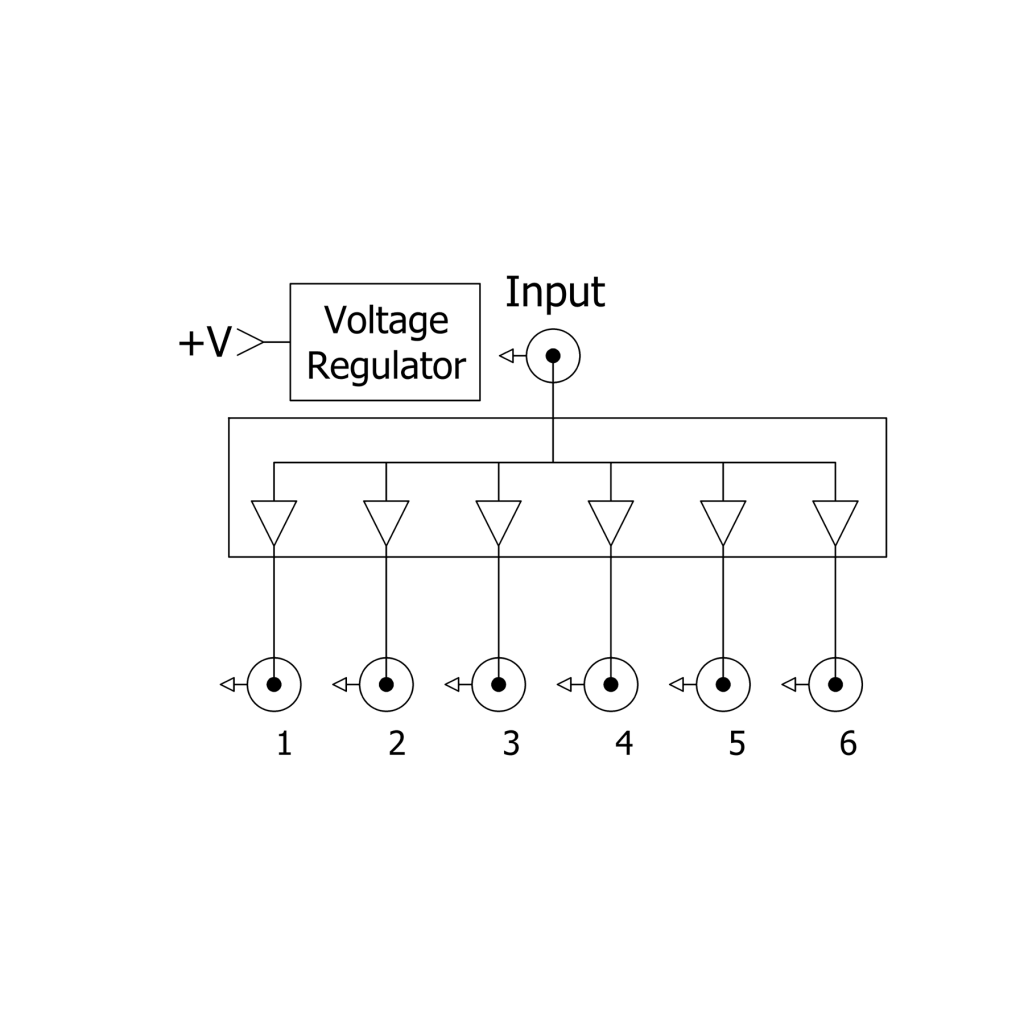

    Block Diagram

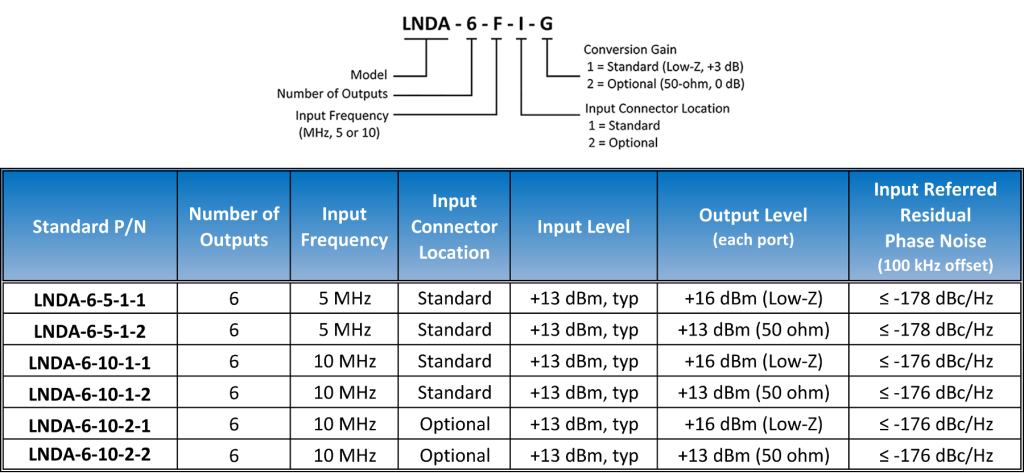

    Ordering Information

    https://www.quanticwenzel.com/wp-content/uploads/lnda6-standard-oi1-1024x475.png
