    Filter Amplifier (LNFA)



    The LNFA is a broadband amplifier that is characterized to a specific customer specified frequency within the operating band and includes an integrated bandpass filter. The LNFA’s integral 2-section BPF attenuates unwanted mixer products, harmonics and other undesired signals at the output before amplification. A 3 dB bandwidth, typically 5 – 10% of the center frequency, is standard.  A wide selection of common amplifiers and input/output attenuators provide flexibility in configuring gain and input/output signal levels (see amplifier selection table for options). Residual phase noise is verified at the design frequency when suitable low noise sources are available. Please consult our technical staff for assistance in configuring an amplifier to suit your input and output requirements.


    • Frequencies to 1 GHz
    • Integral Bandpass Filter
    • Characterized Phase Noise
    • Integral Attenuators


    • Low Phase Noise Amplification
    • Broadband Amplification


    Low Noise Filter Amplifier
    RF Signal Amplification and Unwanted Signal Suppression
    Input Frequency from 5 MHz to 1 GHz
    Intrinsic Phase Noise Floor to -178 dBc/Hz (Input Referred)
    Integral 2-Section Bandpass Filter
    Integral Attenuators for Flexibility and Customized Options
    Gain: Up to +22 dB on some models
    Output Level P1dB: Up to +26 dBm on some models
    Nickel-Plated Machined Aluminum Housing
    SMA(f) Input and Output Connectors, Standard

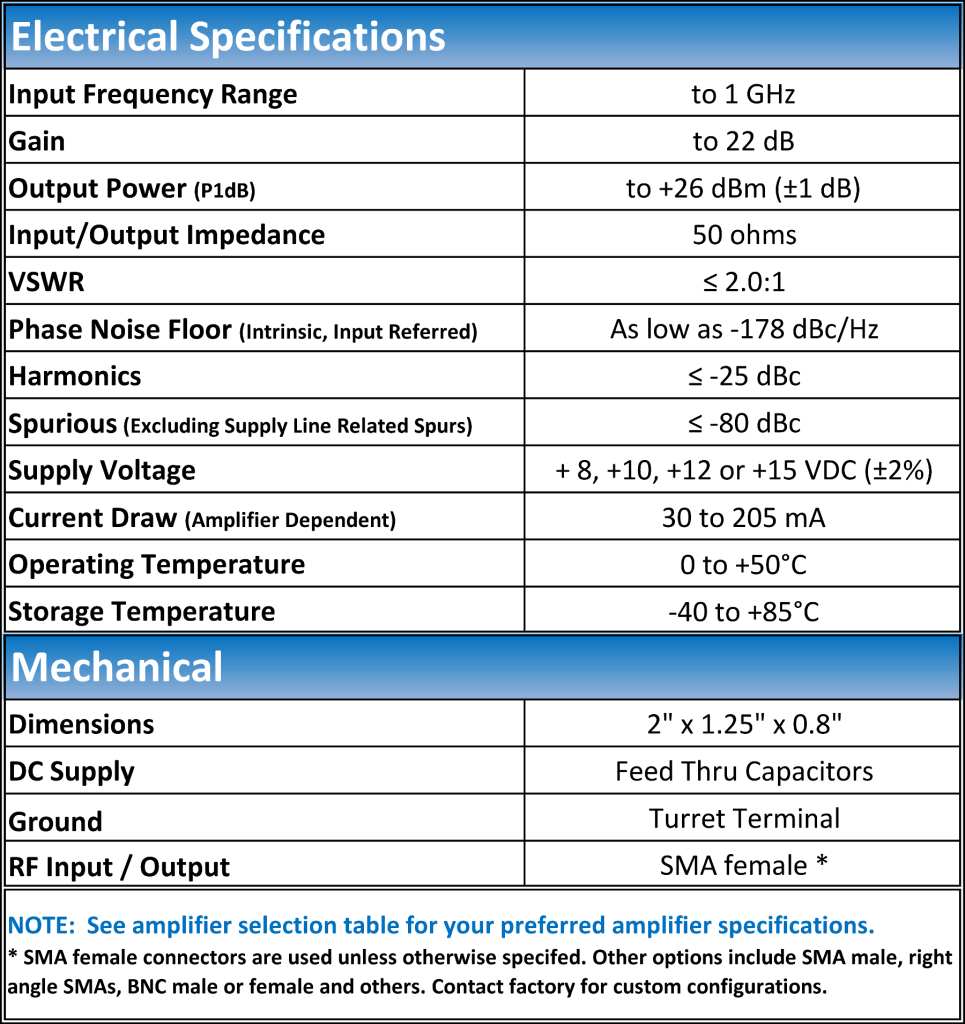

    Typical Specifications

    Mechanical Drawing

    Block Diagram

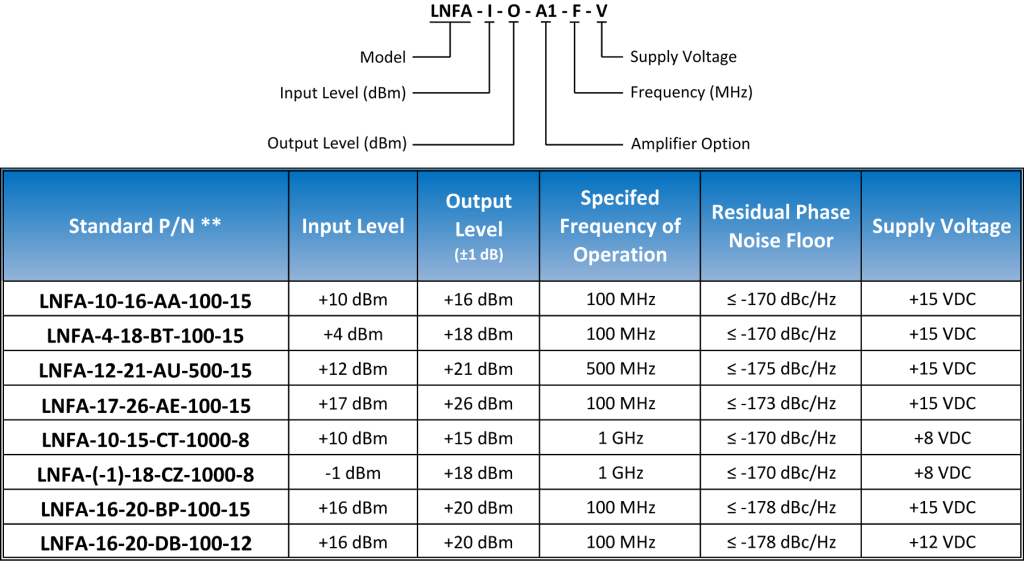

    Ordering Information

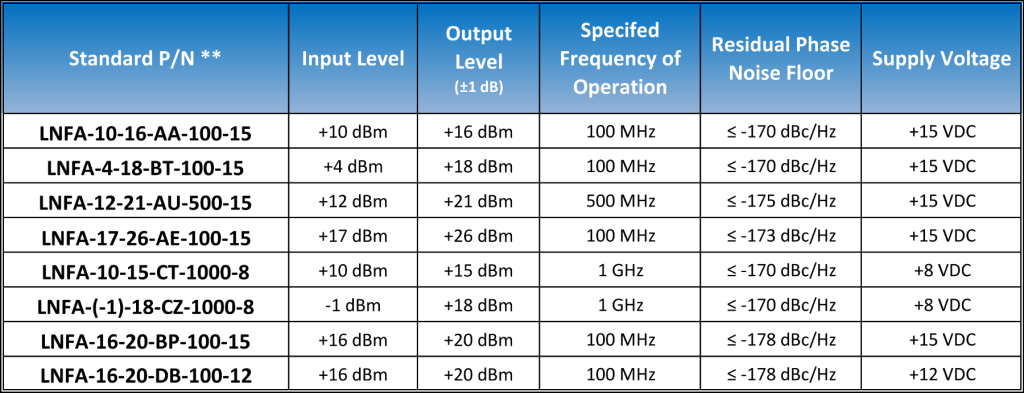

    Standard Amplifier Options
