• Product Model:
    Integrated Mixer (LNIMX)



    The LNIMX module is an integrated mixer module which incorporates a low noise mixer, band-pass and low-pass filters and low noise amplifiers, providing a space saving solution for combining two RF signals. The standard low noise mixer is the M/A Com M8TH, but other mixers options are available. The user can select the desired signal by following the unfiltered output with the appropriate customer provided filter. Many internal amplifier options are available and will be selected based on the input signal frequencies, input signal levels and phase noise performance. Please consult our technical staff for assistance in configuring an LNIMX module to meet your needs.



    • LO Input Frequency to 3.4 GHz
    • RF Input Frequency to 2 GHz
    • Intrinsic Phase Noise to -170 dBc/Hz
    • Integral Amplifiers, Filters and Mixer



    • Synthesizer Building Block
    • Communication Systems
    • Radar Systems
    • Electronic Warfare Systems


    Low Noise Integrated Mixer (LNIMX)
    Mixer Selected Based on Frequencies Required
    Integral Attenuators to Adjust Levels as Required
    LO Frequency Range – Up to 3.4 GHz, fixed
    RF Frequency Range – Up to 2 GHz, fixed
    Output Frequency: Up to 2 GHz
    (Raw Unfiltered Sum, Difference and Originals)
    Nickel-Plated Machined Aluminum Housing
    SMA(f) Input and Output Connectors, Standard

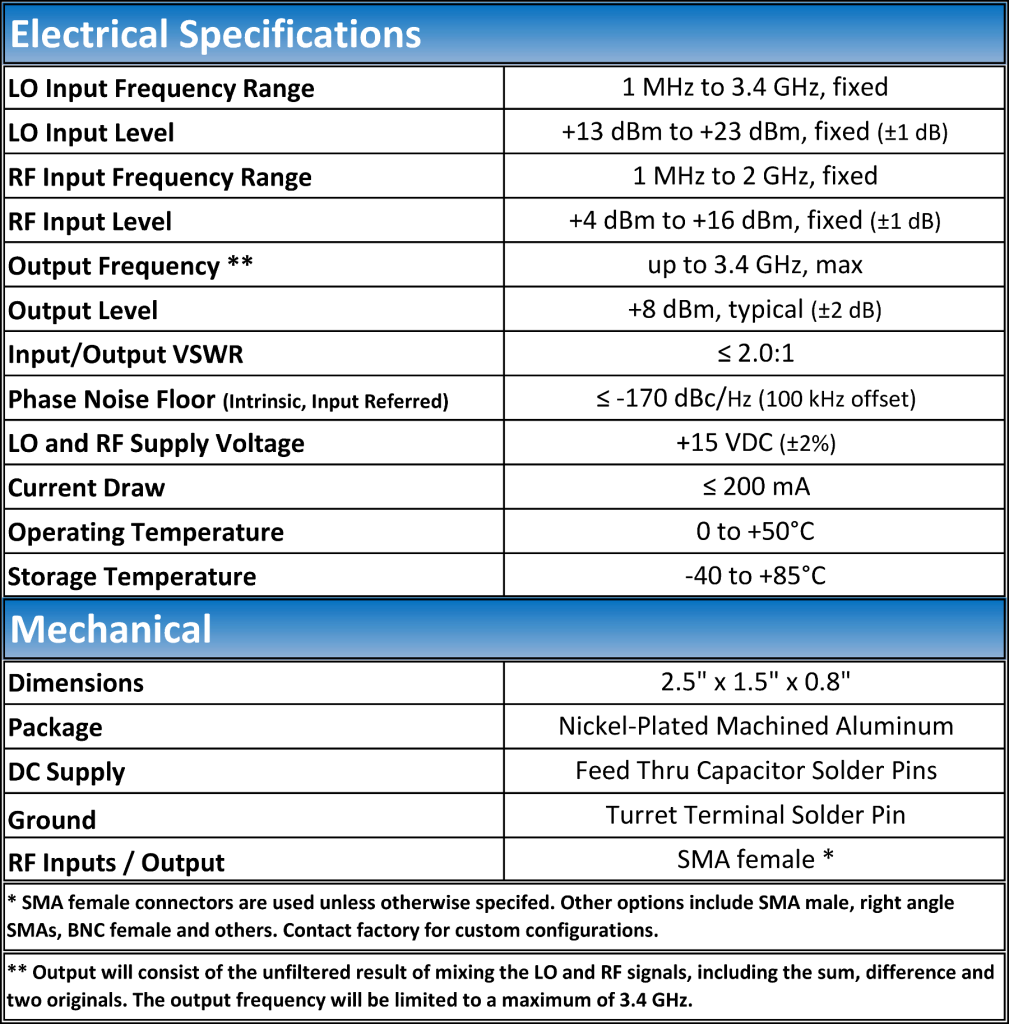

    Typical Specifications

    Mechanical Drawing

    Block Diagram

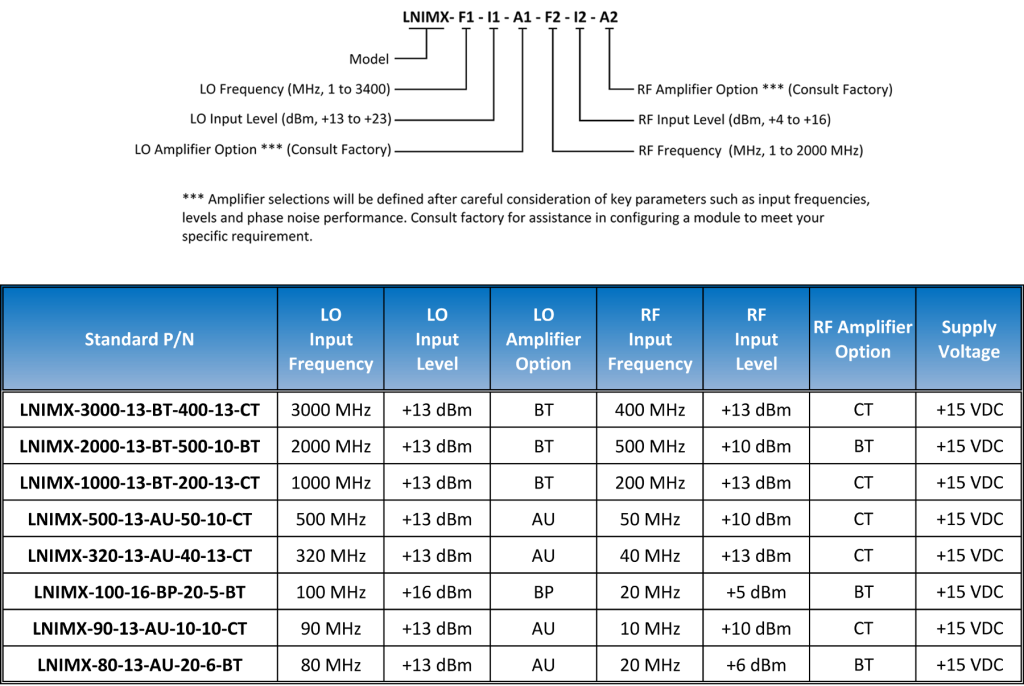

    Ordering Information

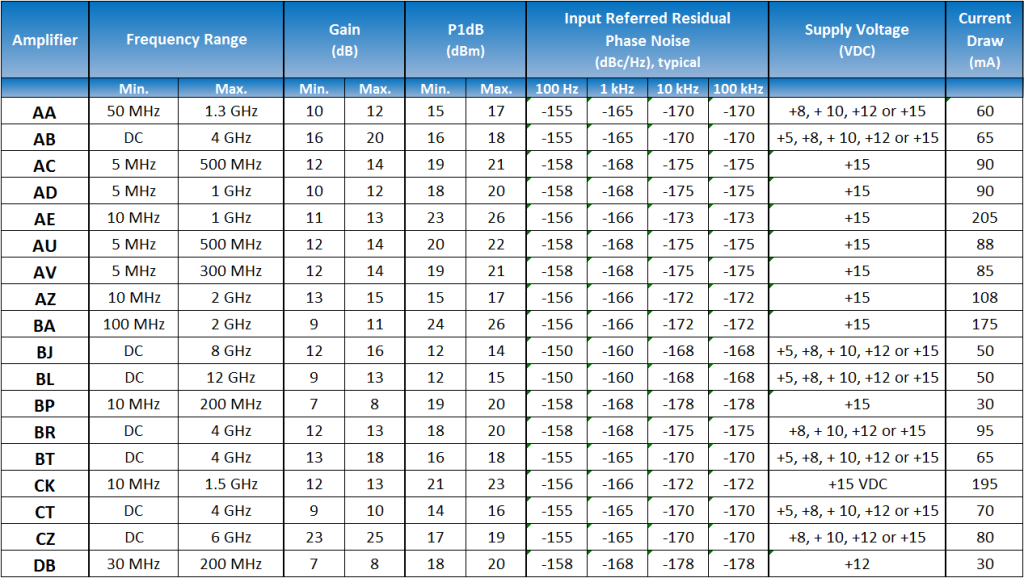

    Standard Amplifier Options
