    The Multiplied Crystal Oscillator (MXO-PLD) is a fixed frequency industry leading ultra-low noise PLO highly integrated with one or more low noise multiplier stages to create a high performance frequency signal between 200 MHz and 12 GHz. The MXO-PLD also provides good temperature stability (when free-running) and excellent spectral purity. Frequency dividers are used to prescale the internal VHF oscillator and the external reference frequencies to phase lock at a common lower frequency. The PLL loop bandwidth is typically ≤ 10 Hz, but can be configured for optimal performance considering the reference signal provided. The package varies depending on the number of multiplier stages needed to create the desired frequency and range in size from 3.45” x 4” x 1”, 4.40” x 4” x 1” and 5.36” x 4” x 1”. The base VHF oscillator frequency and multiple outputs are available as options. (i.e. If ordering a 10 GHz MXO-PLD, you may also request the 100 MHz, 500 MHz and 5 GHz outputs since they are also being created in the multiplier string.) An internal voltage regulator is provided for excellent power supply line rejection. Please consult the factory if you need any specifications to be modified to better suit your application.



    • PLO with Integrated Multipliers
    • Frequency Dividers Used When Phase Locking
    • Frequencies from 200 MHz to 12 GHz, fixed
    • Ultra Low Phase Noise Performance
    • Excellent Spectral Purity
    • Easily Customized to Specific Frequency



    • Military Applications
    • Radar Systems
    • Test Equipment
    • Instruments
    • Reference Source


    Frequencies from 200 MHz to 12 GHz, fixed
    Ultra Low Phase Noise
    Includes Integrated Multipliers, Filters and Amps
    Ruggedized for Dynamic Environments
    Nickel-Plated Machined Aluminum Case
    SMA(f) and Solder Pins on Side
    Output: Sine, +13 dBm, Standard; To +21 dBm, Optional
    Multiple Frequency Outputs Optional
    Automatic Input Detection
    Ext Ref and Int Osc Divided Down to a Common Frequency
    LBW: ≤ 10 Hz, typical
    Low G-Sensitivity


    Radar Systems
    Test Equipment
    Reference Oscillator

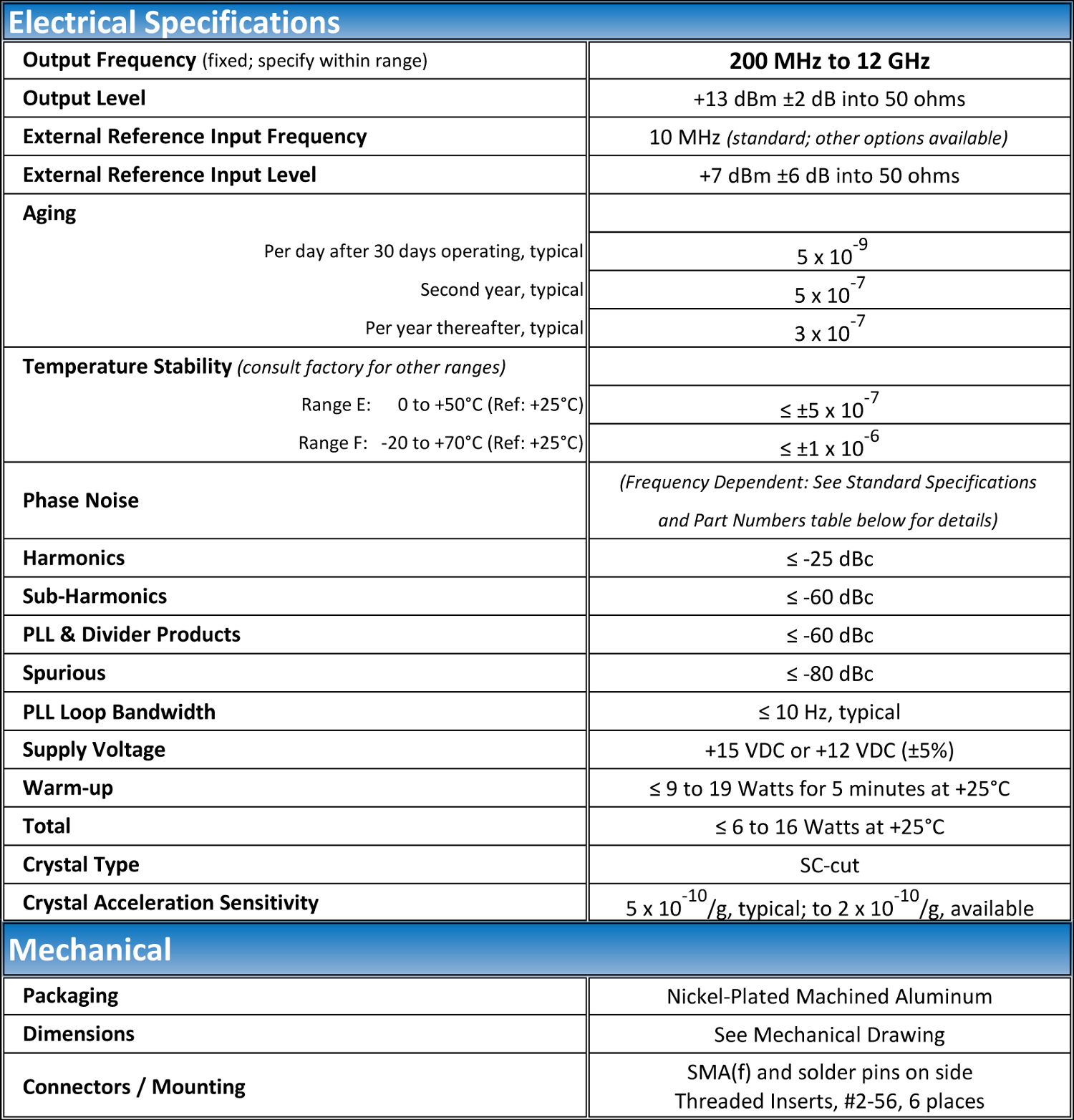

    Typical Specifications

    MXO-PLD Typical Specs

    Mechanical Drawing

    MXO-PLD mechanical
