• Product Model:
    Power Splitter (LNPS)



    The LNPS module is a standard splitter that can be customized with input/output attenuators to provide flexibility in setting gain and input/output power levels. This module is ideal for applications requiring 2-way signal distribution, and works well with Wenzel oscillators and other Blue Tops modules. Please consult our technical staff for assistance in configuring an LNPS module to meet your specific requirement needs.



    • Frequency Range: 5 MHz to 2 GHz
    • Integral Attenuators
    • Modular Integrated Design
    • Output Connectors on the Same Face



    • Synthesizer Building Block
    • Communication Systems
    • Radar Systems
    • Electronic Warfare Systems


    Low Noise Power Splitter (LNPS)
    Input Frequency from 5 MHz to 2 GHz, fixed
    Integral Splitter and Attenuators
    Flexibility in Setting Gain and Input/Output Levels
    Input Level: Up to +15 dBm
    Insertion Loss: ≤ 3.5 dB
    Port-to-Port Isolation: ≥ 20 dB
    Nickel-Plated Machined Aluminum Housing
    SMA(f) Input and Output Connectors, Standard

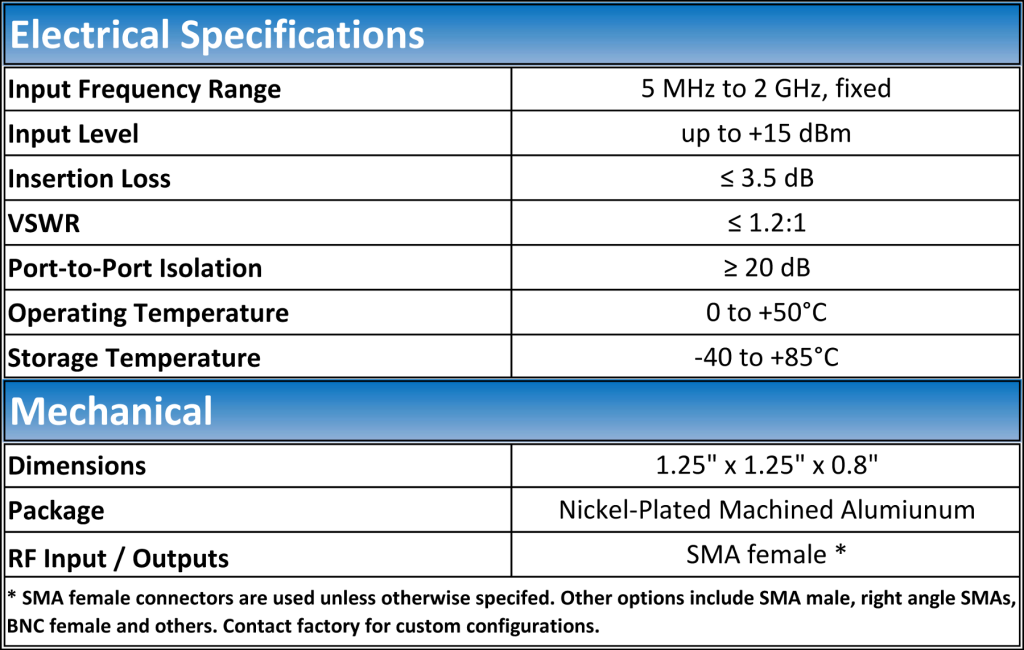

    Typical Specifications

    LNPS Specs

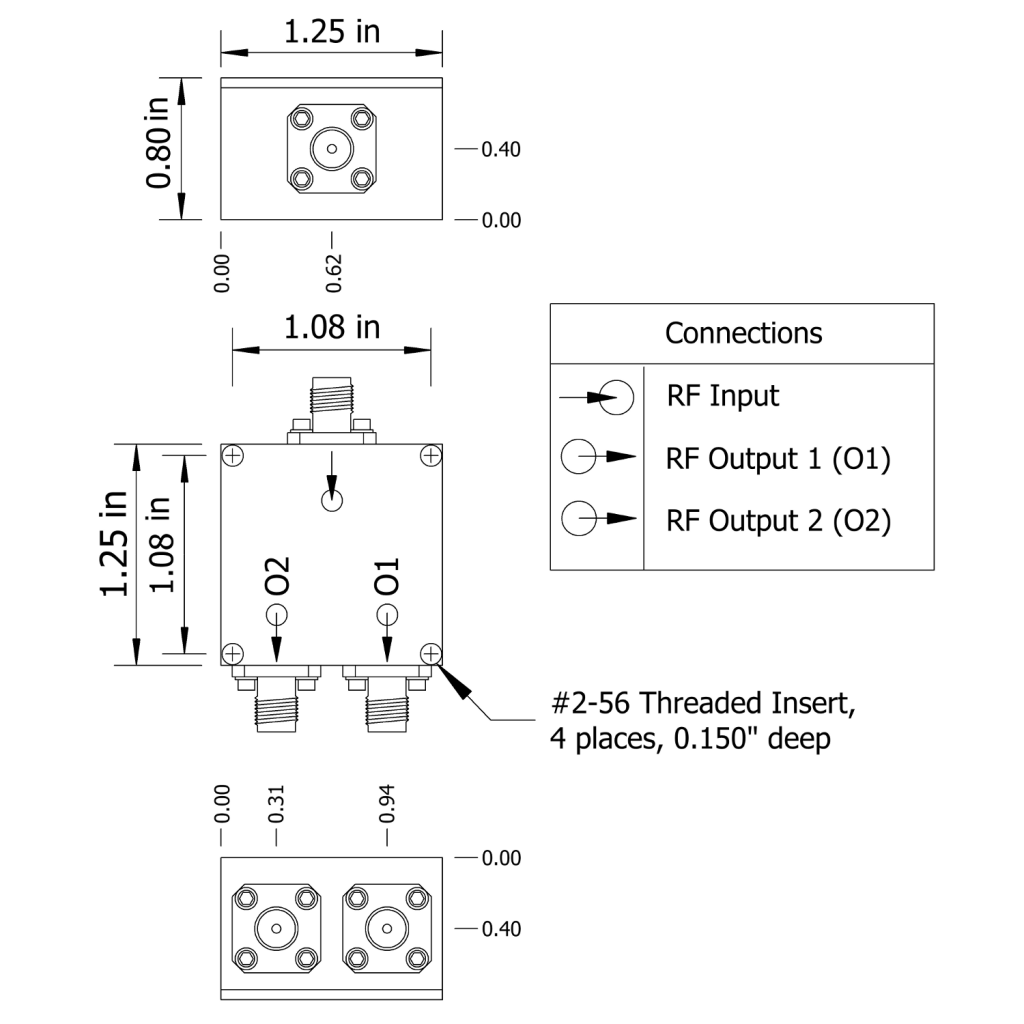

    Mechanical Drawing

    LNPS mechanical

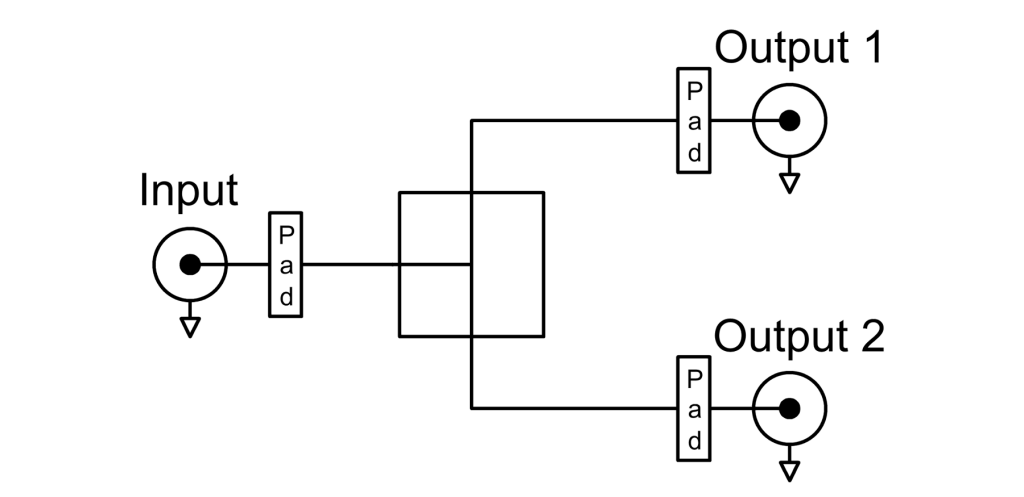

    Block Diagram

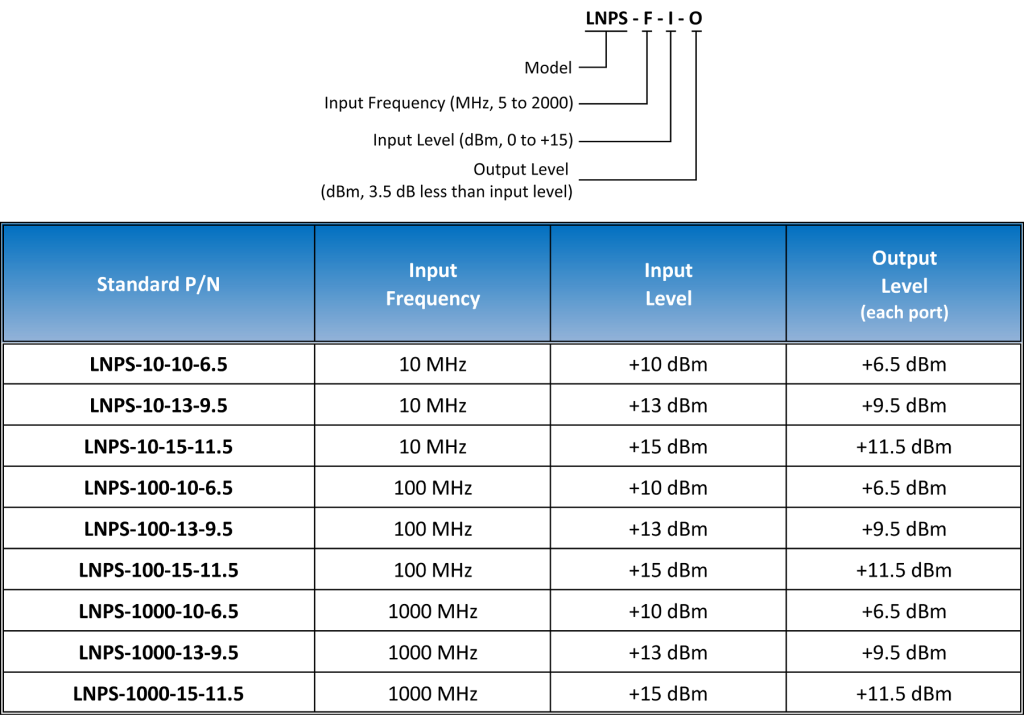

    Ordering Information

    lnps standard oi
