    Vibration Isolated HF Citrine PLO



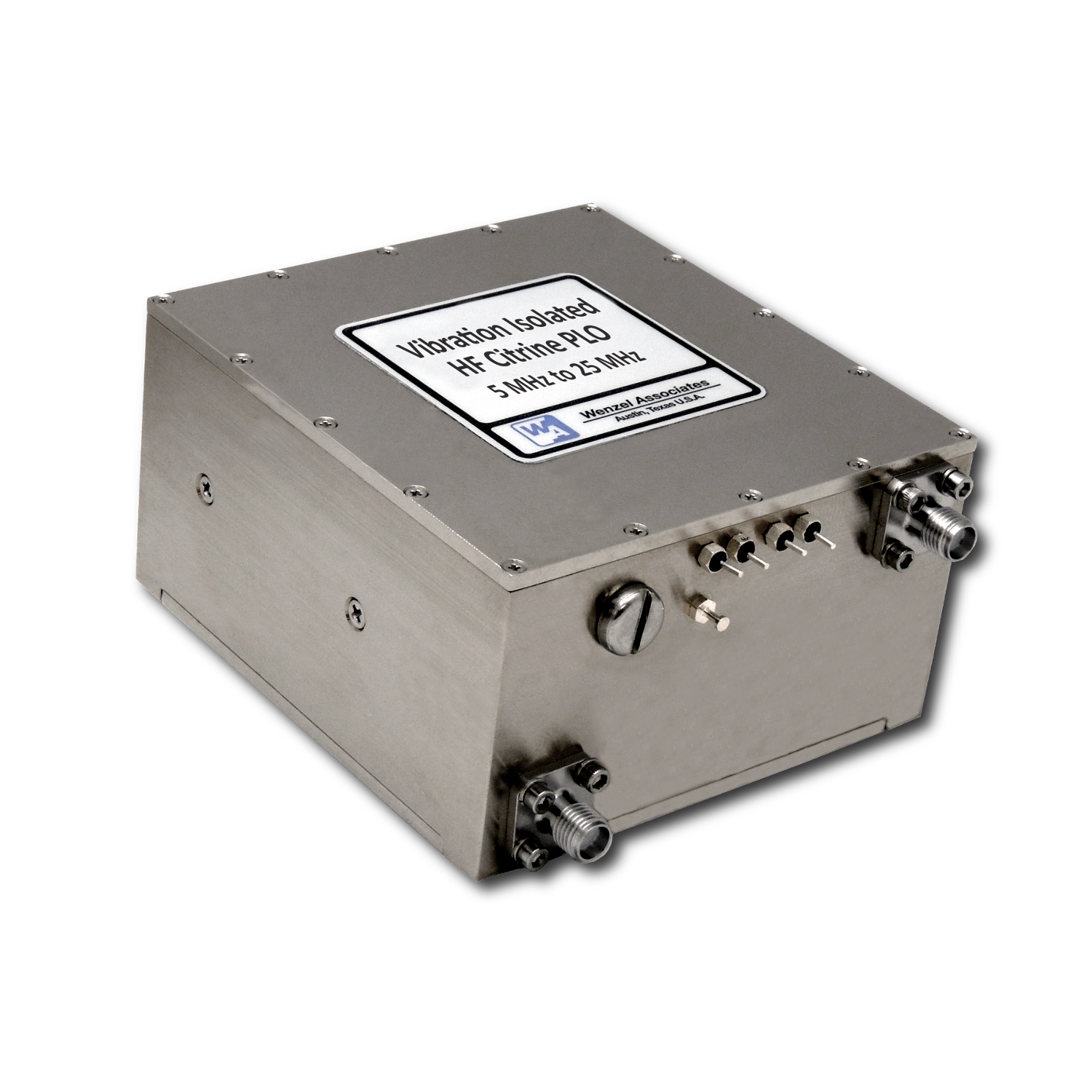

    The Vibration Isolated HF Citrine PLO is a 10 MHz to 25 MHz fixed frequency rugged OCXO integrated with a low noise phase lock loop circuit and mounted within an outer enclosure using shock mounts. The PLO offers excellent aging and temperature stability (when free-running), Standard or Premium phase noise options and low g-sensitivity (to 1E-10/g per axis). Frequency dividers are used to prescale the internal HF oscillator and the external reference frequencies to phase lock at a common lower frequency. The PLL loop bandwidth is typically ≤ 1 Hz, but can be configured for optimal performance considering the reference signal provided. Although vibration isolation may not be a viable solution for some applications, it works well for dampening vibration beyond the natural resonant frequency of the isolated unit, typically 30 Hz to 50 Hz, and varies depending on the weight of the isolated unit and vibration profile. The Vibration Isolated HF Citrine PLO is an ideal solution for airborne and mobile applications with random vibration requiring improved dynamic phase noise performance at offsets at and beyond 80 Hz. Effective g-sensitivity to 5E-12/g (2 kHz offset) can be realized. The nickel-plated machined aluminum outer enclosure is 3.25” x 3.05” x 1.75”. An internal voltage regulator is provided for excellent power supply line rejection. Please consult the factory if you need any specifications to be modified to better suit your application.



    • Frequencies from 10 MHz to 25 MHz, fixed
    • Standard or Premium Phase Noise
    • Ruggedized for Dynamic Environments
    • PLL Loop Bandwidth: ≤ 1 Hz
    • Low G-Sensitivity to 1E-10/g per axis
    • Natural Mount Frequency: ~35 Hz, typical
    • Effective G-Sensitivity to 5E-12/g (2 kHz offset)



    • Military Applications
    • Airborne and Ground
    • Radar Systems
    • Tactical Radio
    • Vehicular Communication


    Frequencies 10 MHz to 25 MHz, fixed
    Standard or Premium Phase Noise Options
    Ruggedized for Dynamic Environments
    Nickel-Plated Machined Aluminum Case
    SMA(f) and Solder Pins on Side
    Optional Voltage Reference and Oven Monitor Pins
    Output: Sine, +13 dBm, Standard
    Automatic Input Detection
    Low Loop Bandwidth: ≤ 1 Hz, typical
    Low G-Sensitivity to 1E-10/g per axis
    Excellent Temperature Stability, Free-Running
    Low Aging rate
    Natural Mount Resonant Frequency (~35 Hz, typical)


    Radar Systems
    Tacticle Radio
    Vehicular Communication
    System Synchronization

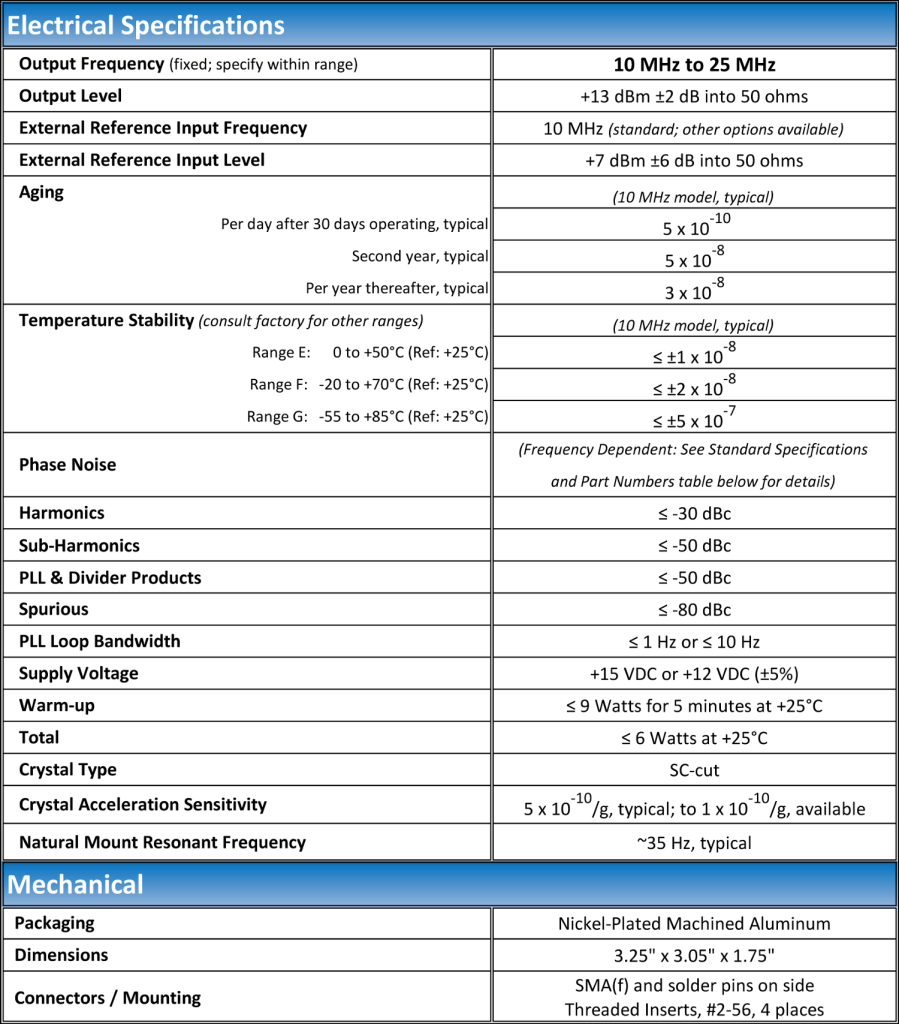

    Typical Specifications


    Mechanical Drawing
