    Vibration Isolated VHF Citrine Plus



    The Vibration Isolated VHF Citrine Plus is a 25 MHz to 160 MHz fixed frequency rugged OCXO coupled with an additional circuit such as a multiplier, divider, amplifier or filter, when the application demands something extra, and mounted within an outer enclosure using shock mounts. This integrated assembly can provide a fixed output frequency between 50 MHz and 700 MHz and offers good temperature stability, Standard or Premium phase noise and low g-sensitivity (to 2E-10/g per axis). Although vibration isolation may not be a viable solution for some applications, it works well for dampening vibration beyond the natural resonant frequency of the isolated unit, typically 30 Hz to 50 Hz, and varies depending on the weight of the isolated unit and vibration profile. This unit is an ideal solution for airborne and mobile applications with random vibration requiring improved dynamic phase noise performance at offsets at and beyond 80 Hz. Effective g-sensitivity to 5E-12/g (2 kHz offset) can be realized. The nickel-plated machined aluminum outer enclosure is 3” x 2.8” x 1.75”. An internal voltage regulator is provided for excellent power supply line rejection. Please consult the factory if you need any specifications to be modified to better suit your application.



    • Frequencies from 50 MHz to 700 MHz, fixed
    • Standard or Premium Phase Noise Options
    • Ruggedized for Dynamic Environments
    • Low G-Sensitivity to 2E-10/g per axis
    • Natural Mount Frequency: ~35 Hz, typical
    • Effective G-Sensitivity to 5E-12/g (2 kHz offset)



    • Military Applications
    • Airborne and Ground
    • Radar Systems
    • Tactical Radio
    • Vehicular Communication


    Frequencies from 50 MHz to 700 MHz, fixed
    Standard or Premium Phase Noise Options
    VHF OCXO (25 MHz to 160 MHz) Plus an Additional Circuit
    Option to add Multiplier, Divider, Filter, PLL or Amplifier
    Ruggedized for Dynamic Environments
    Nickel-Plated Machined Aluminum Case
    SMA(f) and Solder Pins on Side
    Optional Voltage Reference and Oven Monitor Pins
    Output: Sine, +13 dBm, Standard; To +21 dBm (w/Integrated Amplifier)
    Low G-Sensitivity to 2E-10/g per axis
    Natural Mount Resonant Frequency (~35 Hz, typical)


    Radar Systems
    Tacticle Radio
    Vehicular Communication

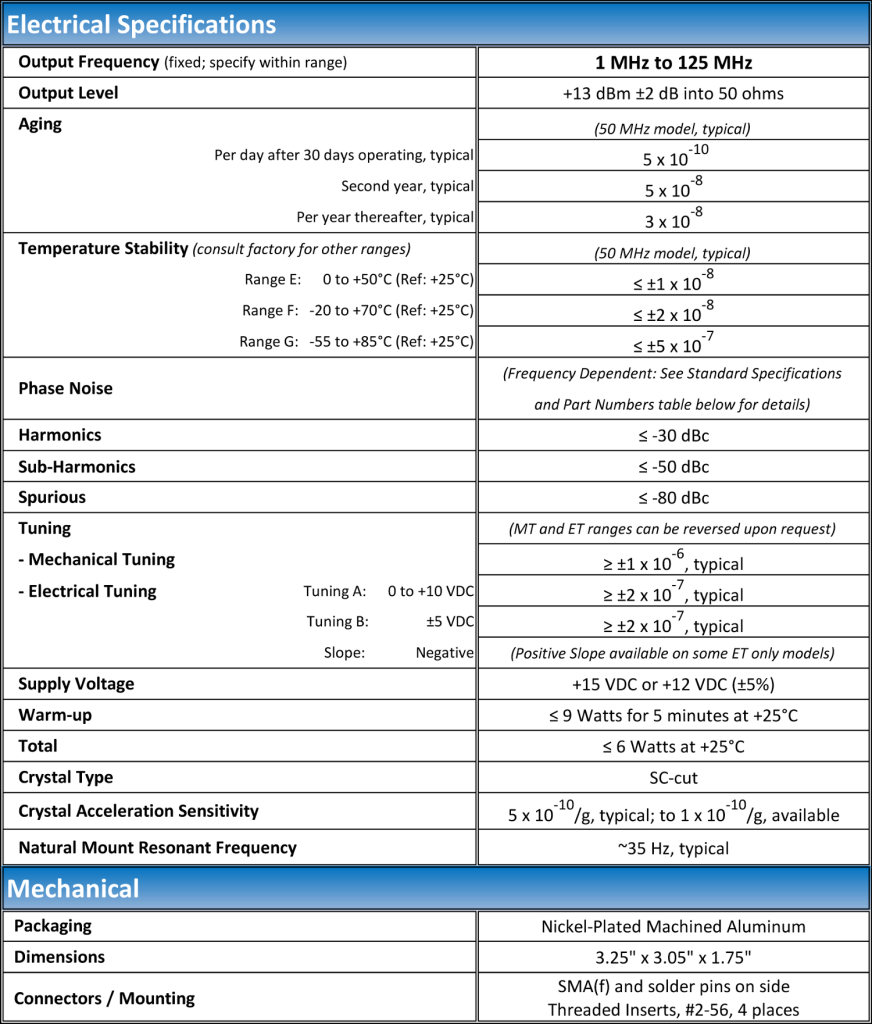

    Typical Specifications


    Mechanical Drawing
