• Product Model:
    Voltage Regulator (LNVR)



    The LNVR module is a low noise voltage regulator designed to provide excellent power supply spurious rejection when clean DC voltage is required for modules used in low noise applications. The compact modular package is designed for use in sub-systems and instruments, but can be used for bench top applications as well. Please consult our technical staff for assistance in configuring an LNVR module to meet your needs.



    • Low nV/Root-Hz
    • Current Loads up to 1 Amp
    • Rugged Modular Design
    • Multiple Output Tabs



    • Synthesizer Building Block
    • Communication Systems
    • Radar Systems
    • Electronic Warfare Systems


    Low Noise Voltage Regulator (LNVR)
    Input Voltage from +5 VDC to +28 VDC, fixed
    Input Voltage Tolerance: Up to 10%
    Output Voltage from +2.5 VDC to +25 VDC, fixed
    Output Current Draw: ≤ 1 Amp, typical (Consult Factory)
    Nickel-Plated Machined Aluminum Housing
    SMA(f) Input and Output Connectors, Standard

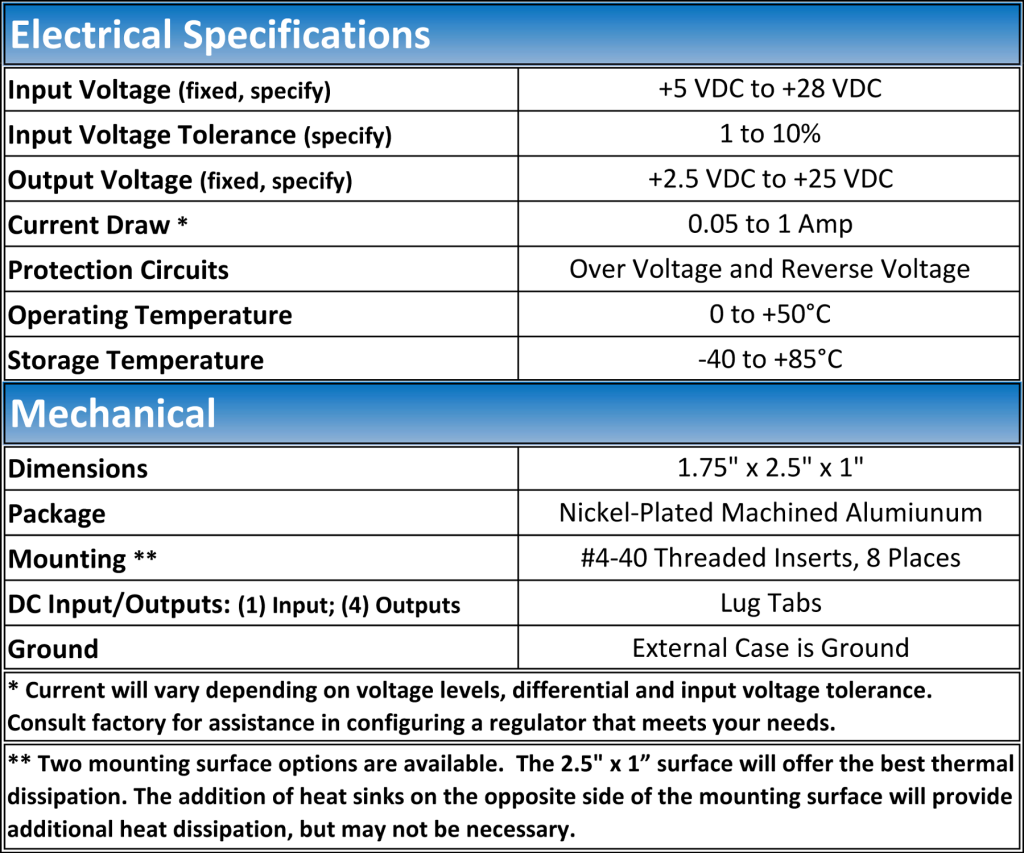

    Typical Specifications

    Mechanical Drawing

    Block Diagram

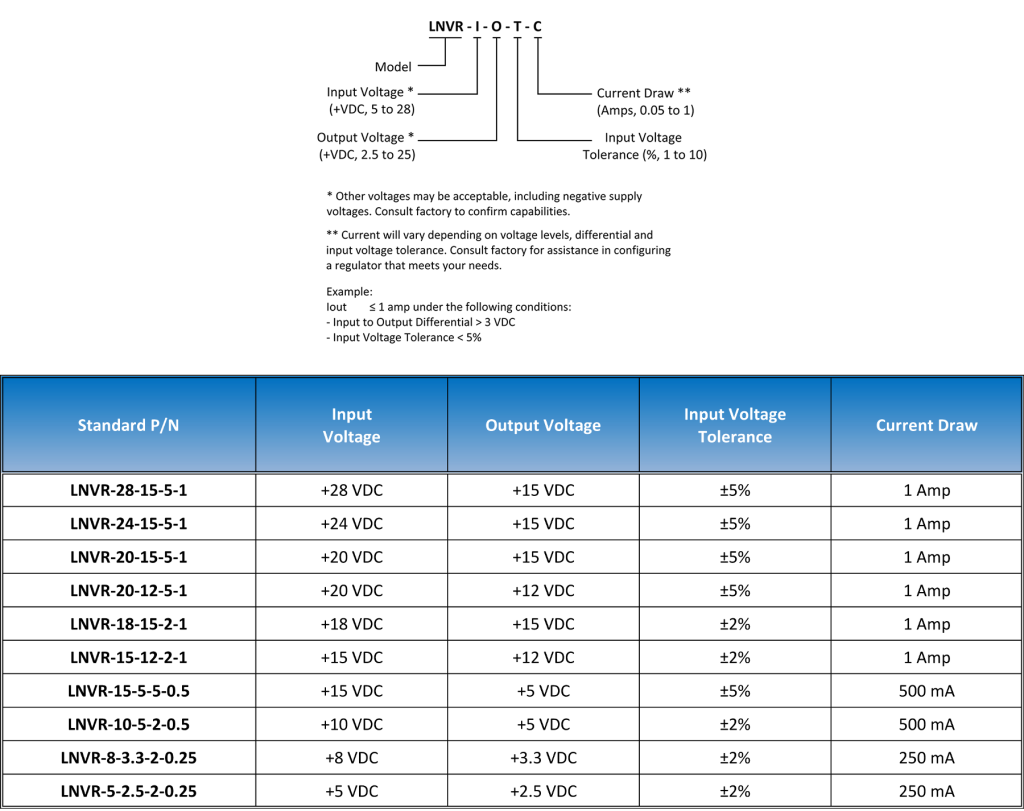

    Ordering Information
