Name: Quantic Wenzel
Address: 2215 Kramer Lane, Austin, Texas, 78755
Price range: $

Model	Description	Application	Phase Noise (100 kHz)	Size

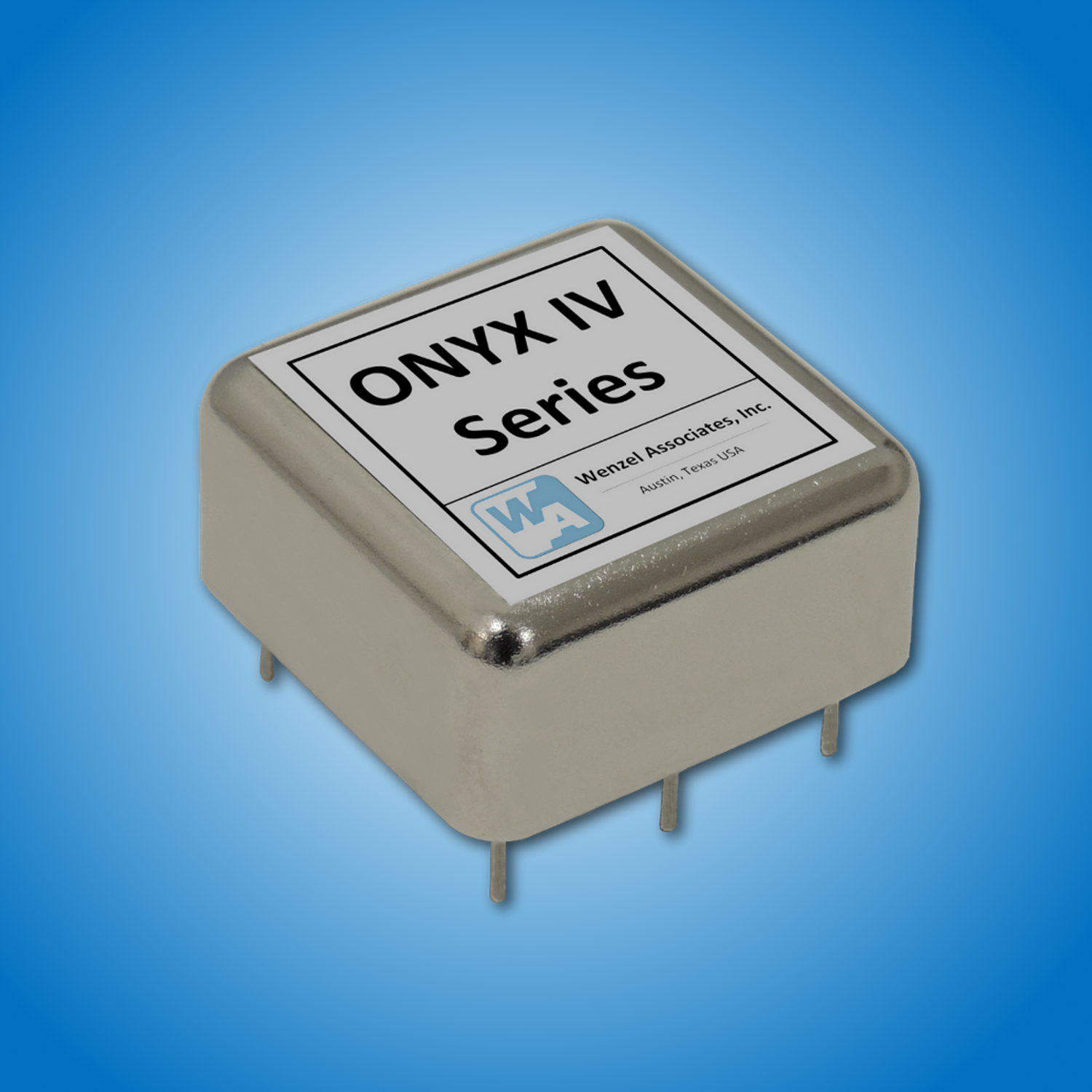

ONYX Series Crystal Oscillators	Frequencies from 10 MHz to 320 MHz, fixed Rugged/Low Cost/High Performance Low Phase Noise to -176 dBc/Hz Low-G Sensitivity to 1E-10/g per axis Output: Sine, +10 dBm, Standard; TTL, Optional Small Package; Low Profile (0.5″ ht) Solder Sealed Steel Can Thru Hole (PCB) Mount	Military Applications Airborne, Ground, Shipboard Test Equipment Synthesizers Base Stations Portable Transceivers	to -176 dBc/Hz	1 x 1 x 0.5"

Model	Description	Application	Phase Noise (100 kHz)	Size

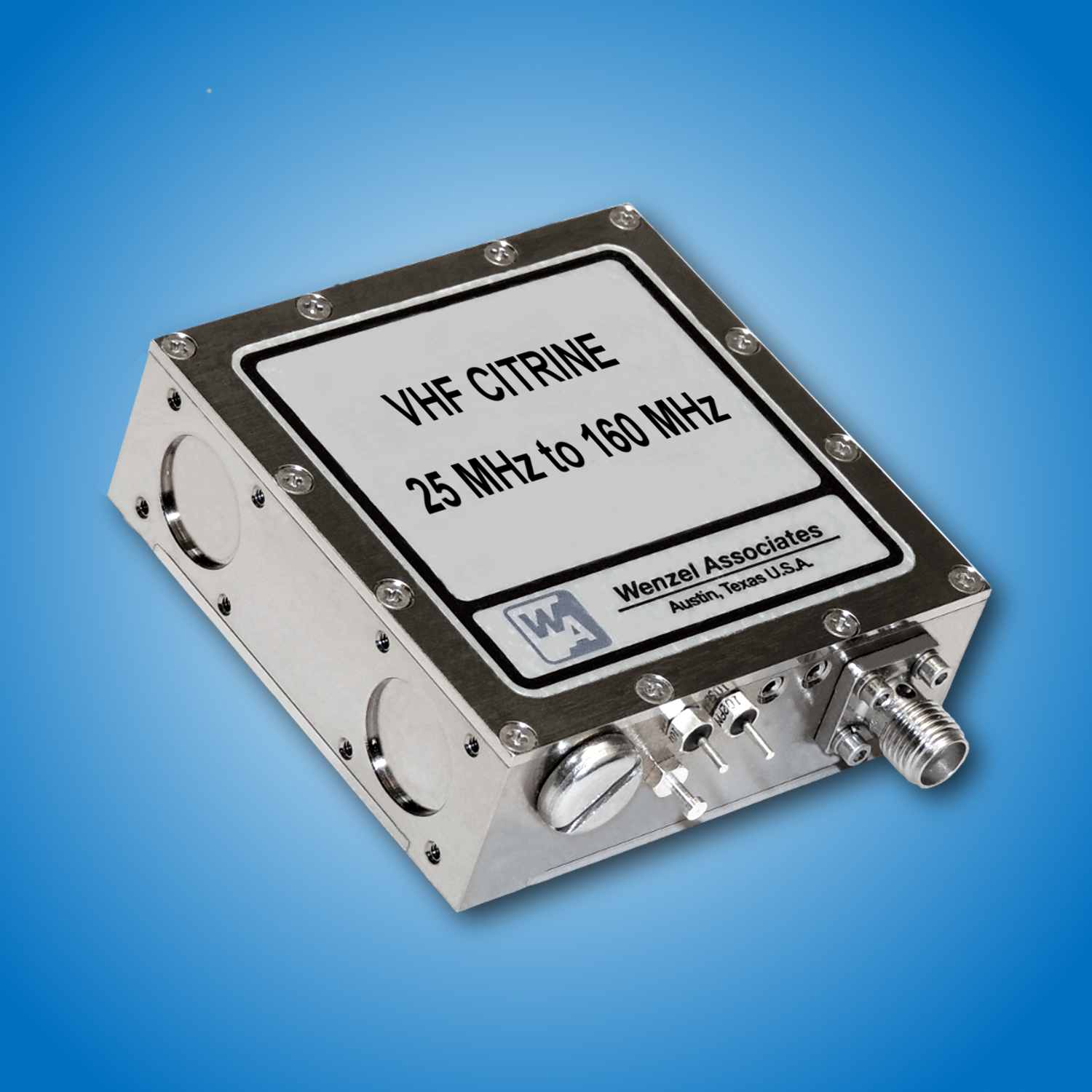

Citrine Series Crystal Oscillators	Integrated Crystal Oscillator and Additional Circuits Frequencies from 1 MHz to 700 MHz, fixed Low, Ultra Low and Golden Phase Noise Options Option to add Multiplier, Divider, Filter, PLL or Amplifier Ruggedized for Dynamic Environments Nickel-Plated Machined Aluminum Case SMA(f) and Solder Pins on Side Optional Voltage Reference and Oven Monitor Pins Sine, +13 dBm, Standard; To +21 dBm (w/Integrated Amp) Low G-Sensitivity Vibration Isolated Versions Available	Airborne Radar Systems Tactical Radio Vehicular Communication	Frequency Specific (See Spec Sheets)	Configuration Dependent (See Spec Sheets)

Model	Description	Application	Phase Noise (100 kHz)	Size

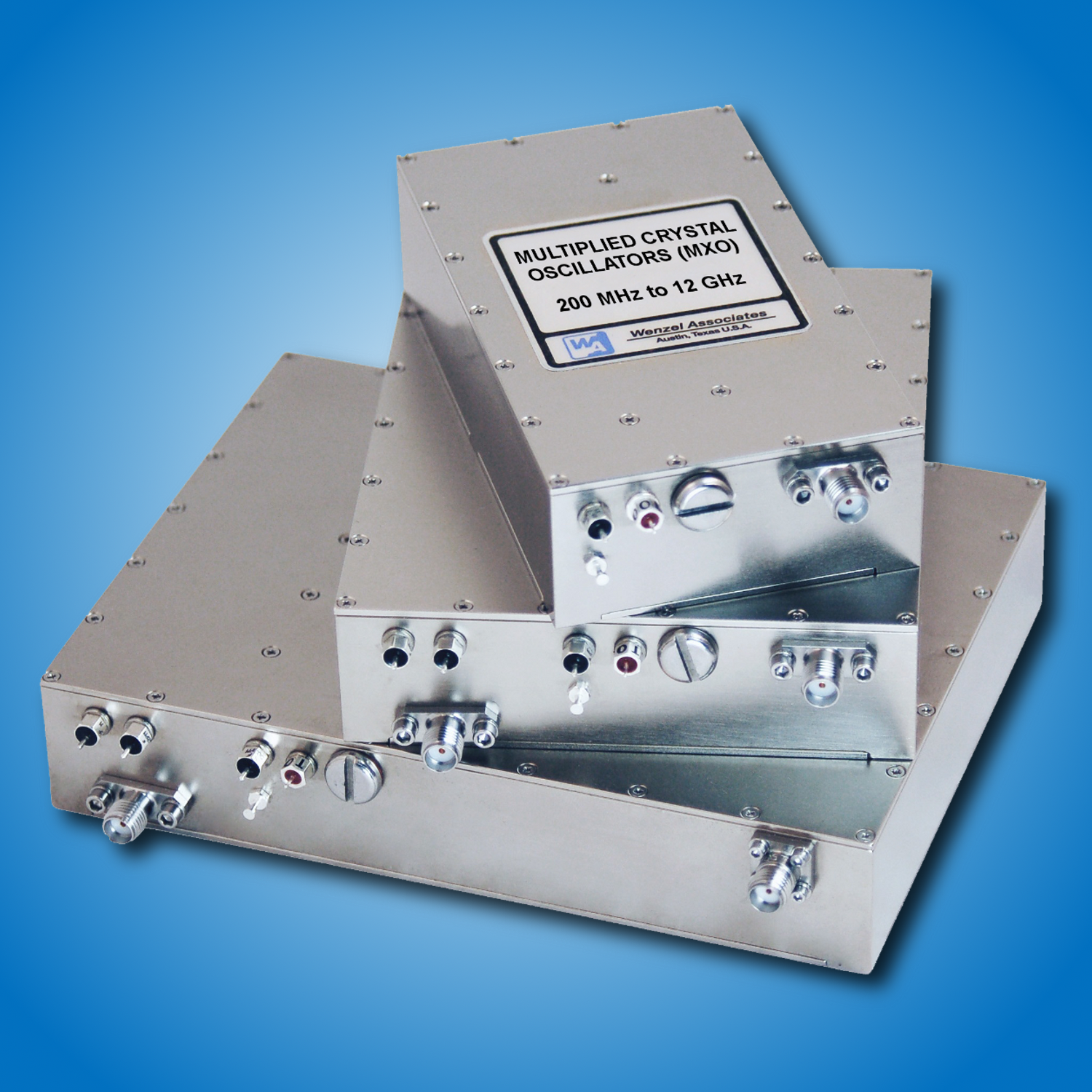

Multiplied Crystal Oscillator Series (MXO)	Integrated Crystal Oscillator(s) and Additional Circuits Frequencies from 200 MHz to 12 GHz, fixed Ultra Low or Golden Phase Noise Options Includes Integrated Multipliers, Filters and Amps Ruggedized for Dynamic Environments Nickel-Plated Machined Aluminum Case SMA(f) and Solder Pins on Side Sine, +13 dBm, Standard; To +21 dBm, Optional Multiple Frequency Outputs Optional	Radar Systems Instruments Test Equipment Reference Oscillator	Frequency Specific (See Spec Sheets)	Configuration Dependent (See Spec Sheets)

Model	Description	Application	Phase Noise (100 kHz)	Size

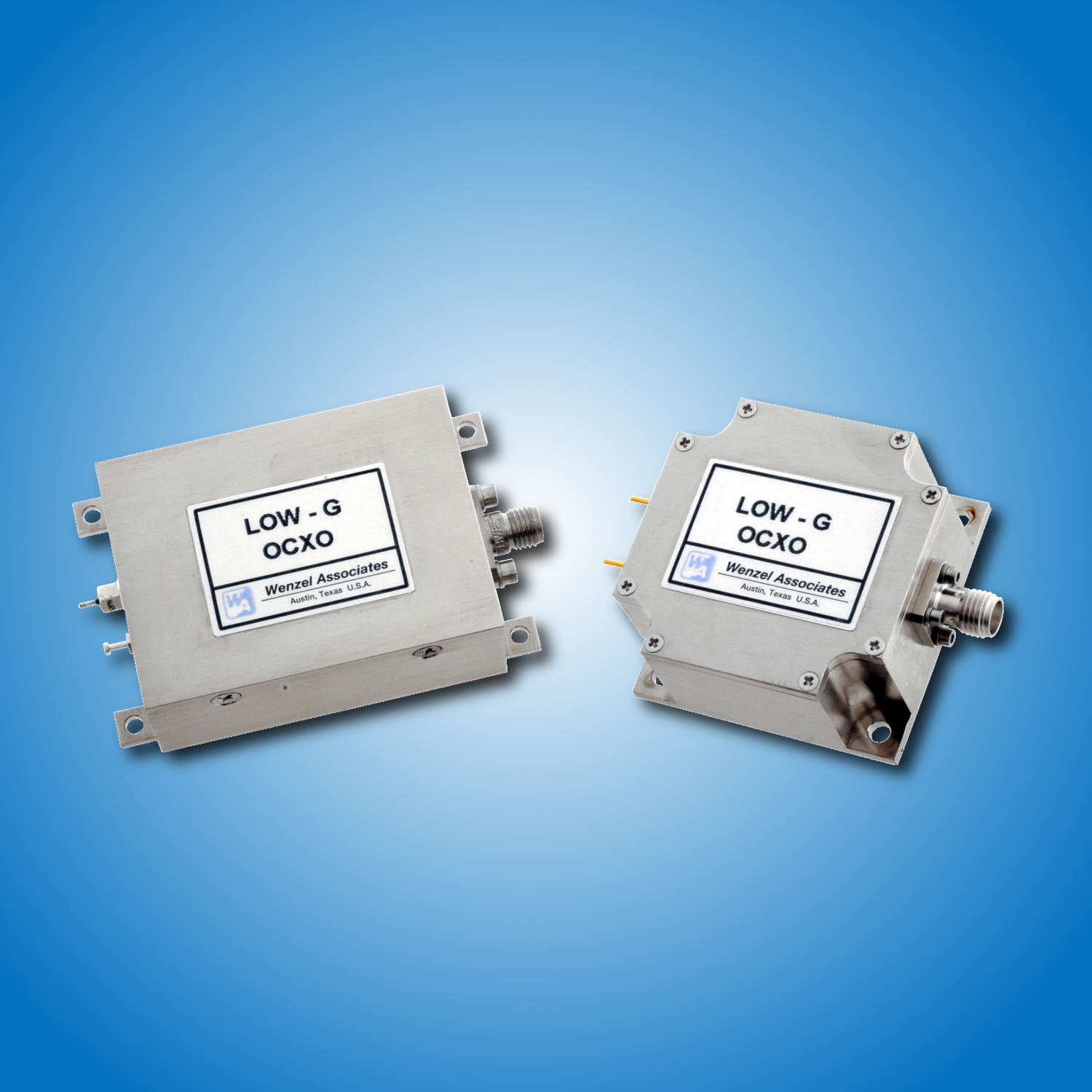

Low G-Sensitivity Crystal Oscillators	Frequencies from 10 MHz to 160 MHz, fixed Standard and Premium Phase Noise Options Ruggedized for Dynamic Environments Machined Aluminum Case SMA(f) and Solder Pins on Side Output: Sine, +13 dBm, Standard Low G-Sensitivity to 1E-10/g per axis Effective G-Sensitivity to 5E-11/g per axis (Bootstrap)	Airborne Radar Systems Tactical Radio Vehicular Communication Shipboard Applications	to -176 dBc/Hz	Configuration Dependent (See Spec Sheets)

Model	Description	Application	Phase Noise (100 kHz)	Size
Vibration Isolated Crystal Oscillators	Frequencies from 1 MHz to 700 MHz, fixed Standard or Premium Phase Noise Options Ruggedized for Dynamic Environments Nickel-Plated Machined Aluminum Case SMA(f) and Solder Pins on Side Output: Sine, +13 dBm, Standard Low G-Sensitivity to 1E-10/g per axis Natural Mount Resonant Frequency (~35 Hz to ~50 Hz, typical)	Airborne Radar Systems Tactical Radio Vehicular Communication	to -190 dBc/Hz	Configuration Dependent (See Spec Sheets)

Product :
Standard Frequency Sources
