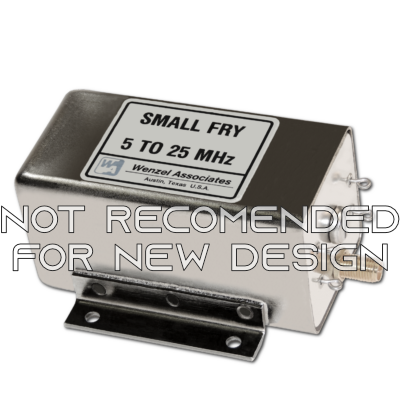

*NOT RECOMMENDED FOR NEW DESIGNS* The Small Fry is a 5 MHz to 25 MHz fixed frequency OCXO featuring a vacuum flask insulator which minimizes the effects of short term temperature changes resulting in temperature stabilities as low as ±1E-9, making this model one of the most stable crystal based references available. With good stability and phase noise floors as low as -168 dBc/Hz, this model is an excellent reference oscillator for many instrument applications. An internal voltage regulator is provided for excellent power supply line rejection. Please consult the factory if you need any specifications to be modified to better suit your application.
Frequencies from 5 MHz to 25 MHz, fixed
Low Phase Noise

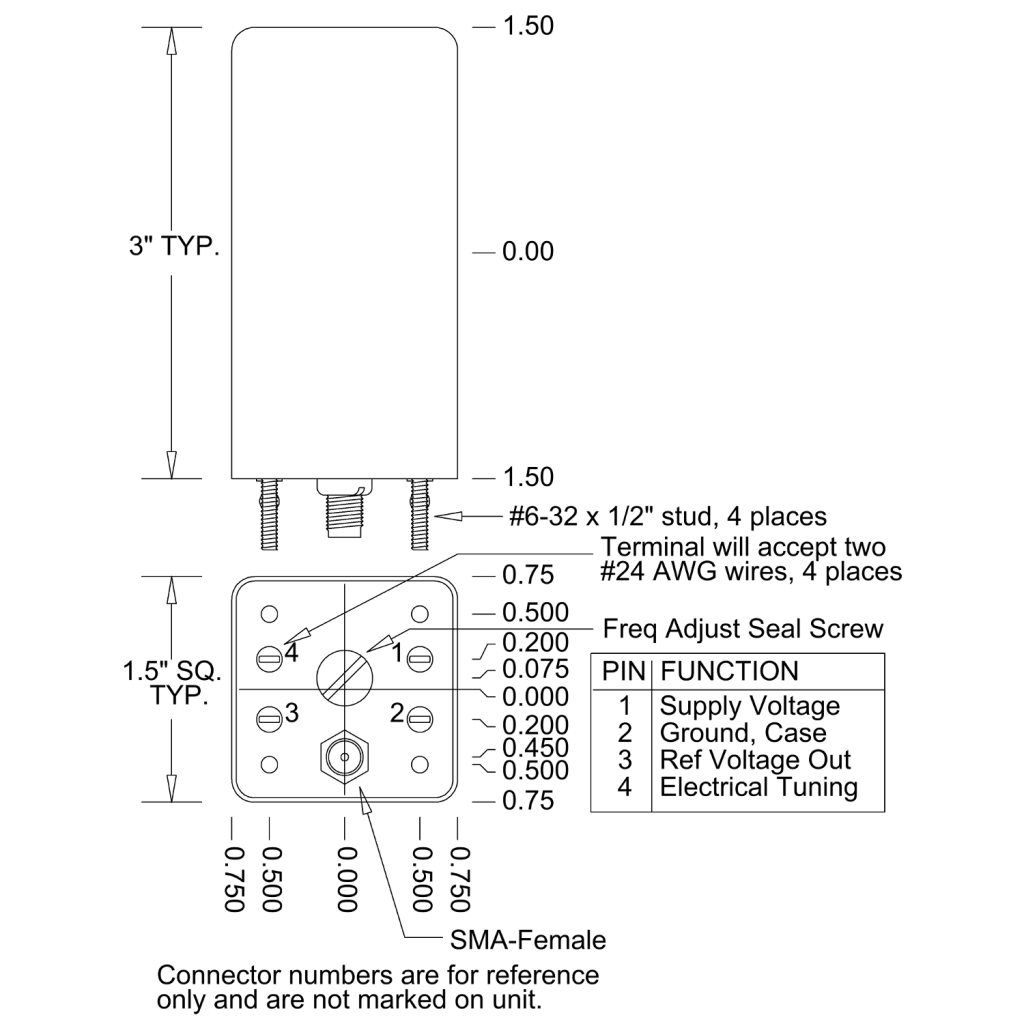

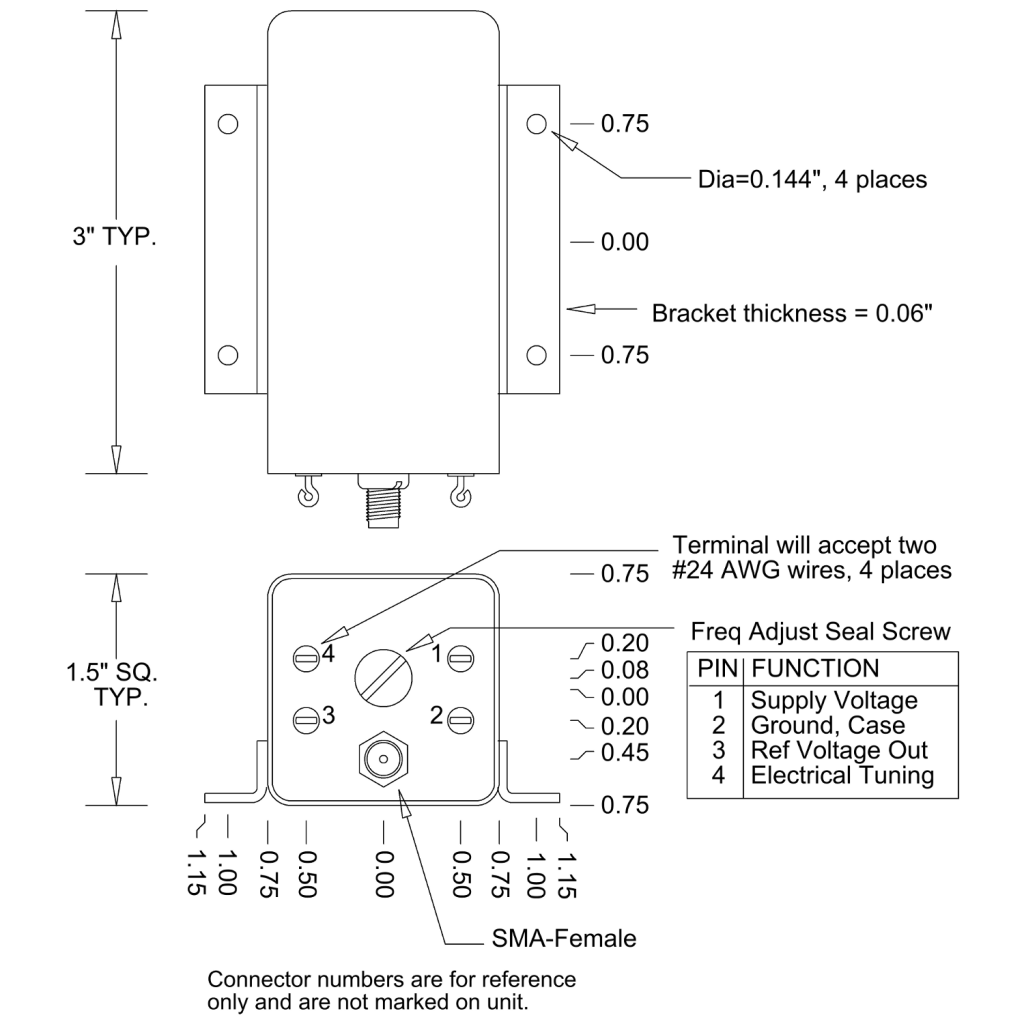

Solder Sealed Steel Can with Mounting Flange
SMA(f) and Solder Pins
Output: Sine, +13 dBm, Standard
Excellent Temperature Stability
Very Good Short Term Stability
Low Aging Rate
GPS Receivers
Synthesizers
Instruments
