• Product Model:
    Streamline

    inner-page-bg
    product-vhf-banner-img
    product-vhf-banner-img

    DESCRIPTION

    The Streamline oscillators are general purpose OCXOs with a fixed output frequency between 1 MHz and 25 MHz, which offer excellent overall performance at a modest cost. They provide aging rates as low as 1E-10 per day and phase noise floor performance to -165 dBc/Hz. Packaging options include PCB mount with solder pins on the base or SMA(f) connector and solder pins on the side.  A low noise voltage regulator is included to minimize power supply line related spurious signals. Please contact technical staff to discuss custom requirements.





    FEATURES:

    •  Output Frequency: 1 MHz to 25 MHz
    •  Excellent Aging Rate
    •  Low Phase Noise
    •  Good Frequency Stability over Temperature
    •  PCB Mount and SMA Packages Available
    •  Internal Voltage Regulator





    APPLICATIONS:

    •  General Purpose Reference
    •  GPS Receivers
    •  Synthesizers
    •  Test Equipment

    Features

    General Purpose
    Frequencies from 1 MHz to 25 MHz, fixed
    Low Phase Noise
    SMA(f) and Solder Pins or Thru Hole (PCB) Mount
    Output: Sine, +13 dBm, Standard; CMOS, Optional
    Good Temperature Stability
    Low Aging rate

    Applications

    General Purpose Reference
    GPS Receivers
    Synthesizers

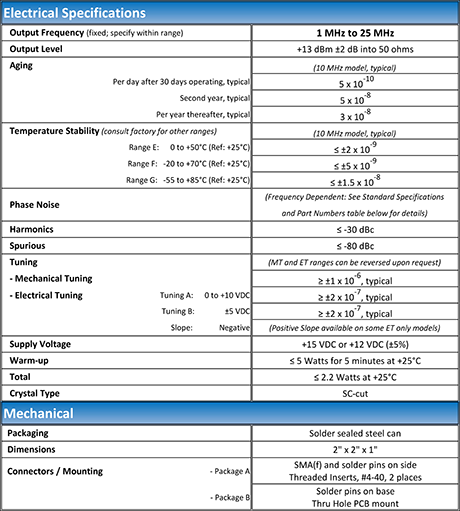

    Typical Specifications

    https://www.quanticwenzel.com/wp-content/uploads/Streamline-Typical-Specs.png

    Package A

    https://www.quanticwenzel.com/wp-content/uploads/Streamline-PKG-A-SMA-1024x1024.png

    Package B

    https://www.quanticwenzel.com/wp-content/uploads/Streamline-PKG-B-pins-1024x1024.png
