    Model Description Application Phase Noise (100 kHz) Size

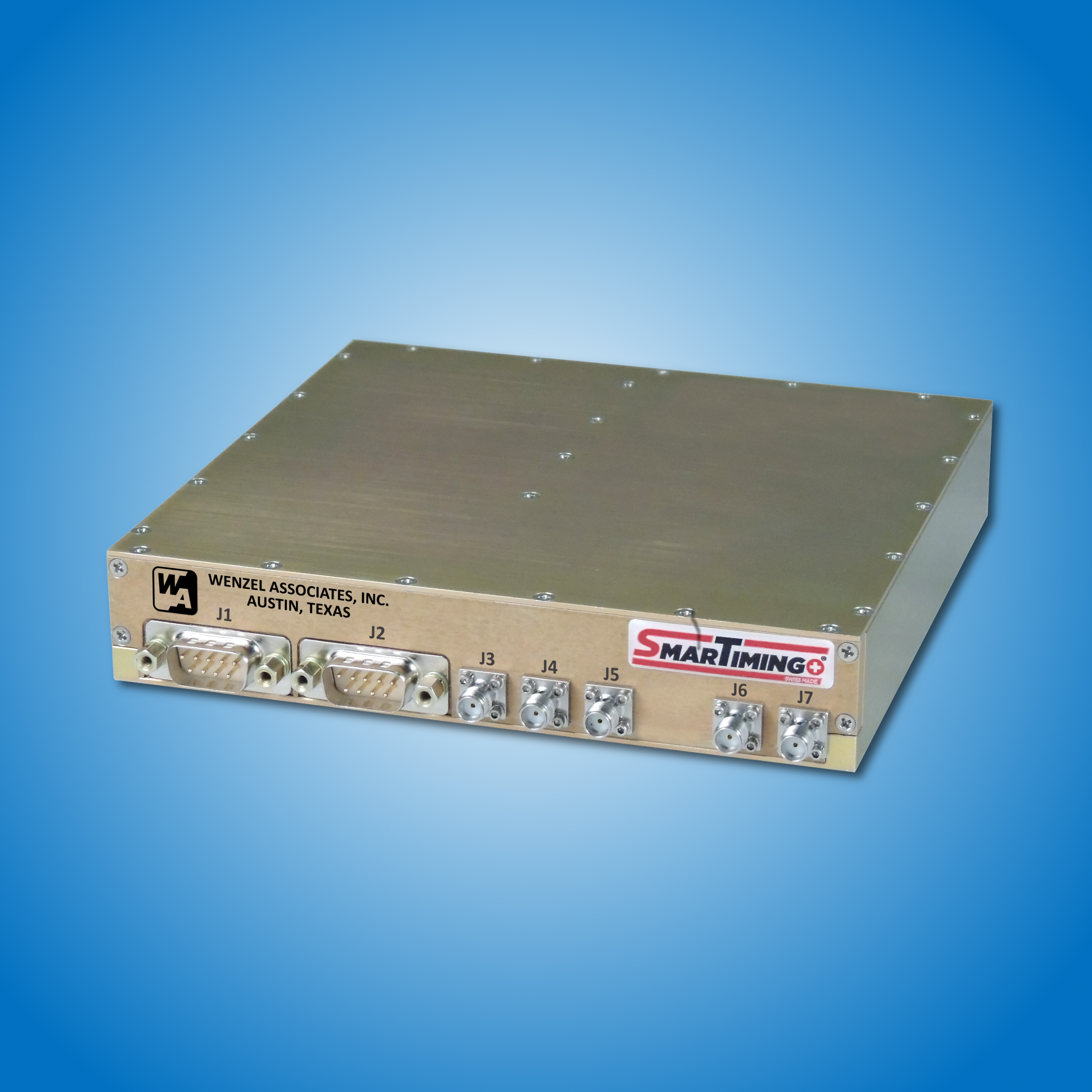

    OCXO + Rubidium – QRb Sync

    • QRb Sync

    • Industry Leading ULN Oscillators and Disciplined Rubidium Combined
    • Exceptional Phase Noise
    • Excellent Stability
    • Low G-Sensitivity
    • Internal Vibration Isolation Options
    • Auto Adaptive Smartiming+

    High Dynamic Platforms
    Tactical Helicopter
    Tactical Airborne
    Drone (UAV/UGA)
    Shipboard
    Ground Communications
    Mobile Satcom
    Tactical Aerial Radar

    		 10 MHz: -165 dBc/Hz 100 MHz: -176 dBc/Hz 6 x 5.7 x 1.1"
    6 x 5.7 x 1.4"
    Model Description Application Phase Noise (100 kHz) Size

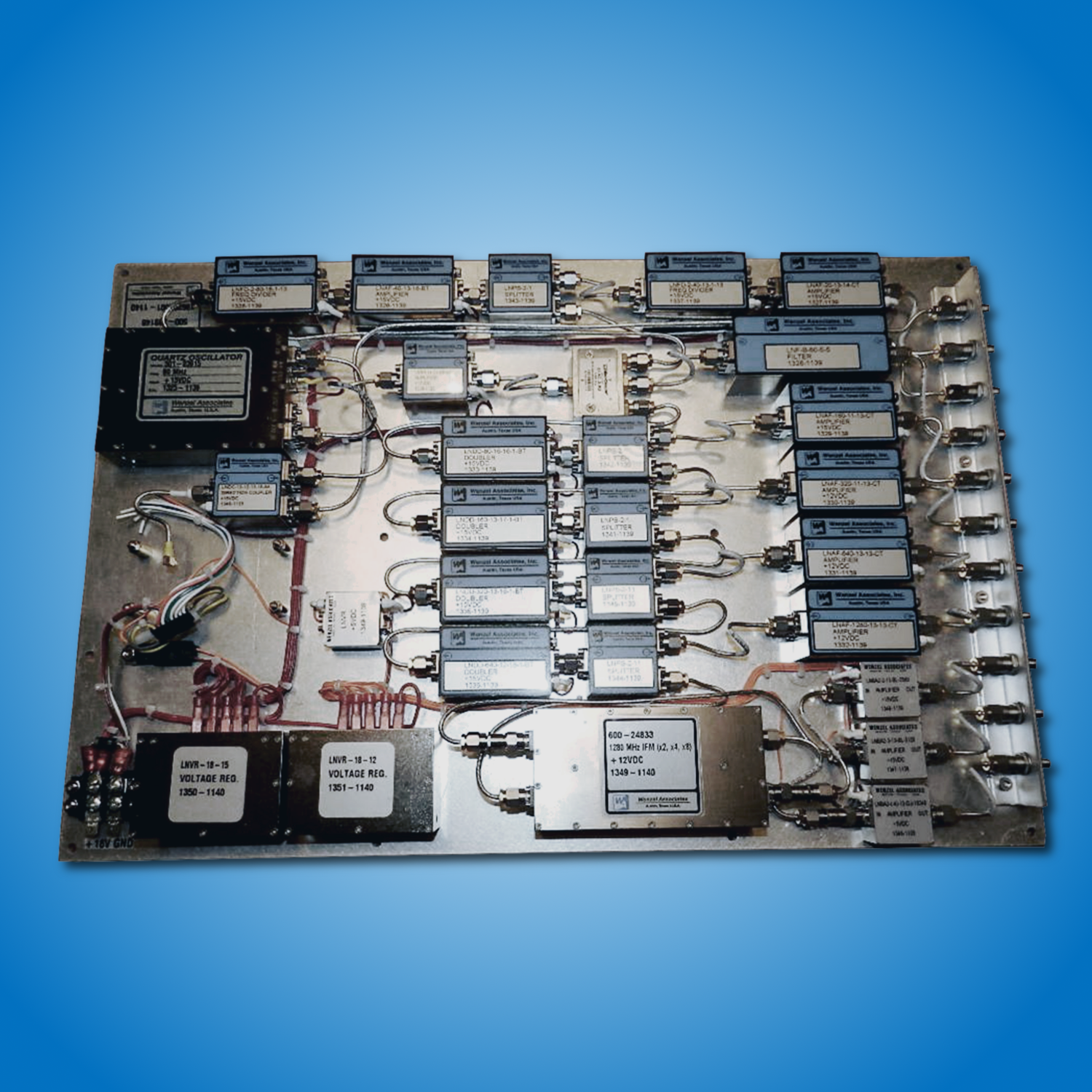

    Plate Assemblies

    • Crystal Oscillator(s) and/or RF Modules Mounted on an Aluminum Plate

    • Customer Selected Frequencies from 5 MHz to 16 GHz, fixed
    • Multiple Frequency / Multiple Output Options
    • Low, Ultra Low & Golden Phase Noise Performance Options
    • Phase Locking with External Reference Option
    • Low Noise Voltage Regulator Option
    • Supply Voltage: +12 VDC to +24 VDC, specify

    Bench Reference
    Radar Systems
    Communication Systems
    Instruments

    		 Frequency Specific (Consult Factory) Configuration Dependent
    (Consult Factory)
    Model Description Application Phase Noise (100 kHz) Size

    Card Assemblies

    • Frequency Source or Frequency Conversion Modules

    • VME, VXI, VPX and other Card Assembly Form Factors Available
    • Customer Selected Frequencies from 5 MHz to 16 GHz
    • Multiple Frequency / Multiple Output Options
    • Low, Ultra Low & Golden Phase Noise Performance Options
    • Phase Locking with External Reference Option
    • Low Noise Voltage Regulator Option
    • Supply Voltage: +12 VDC to +24 VDC, specify

    Synthesizer
    Radar Systems
    Communication Systems
    Instruments

    		 Frequency Specific (Consult Factory) Configuration Dependent
    (Consult Factory)
    Model Description Application Phase Noise (100 kHz) Size

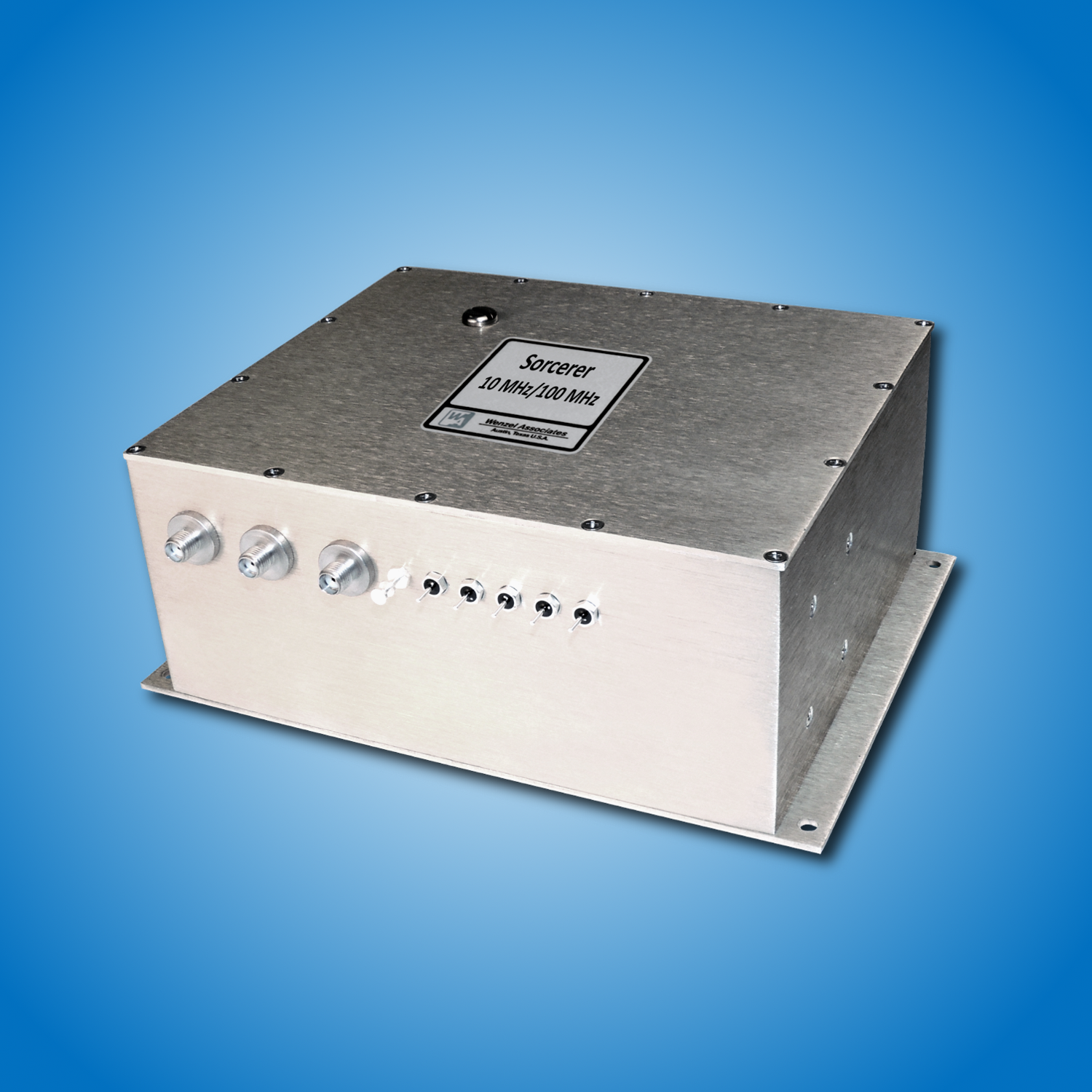

    Custom Enclosures

    • Crystal Oscillator(s) and/or RF Modules Mounted within an Enclosure

    • Machined Aluminum Compact Case Assembly
    • Customer Selected Frequencies from 5 MHz to 16 GHz
    • Multiple Frequency / Multiple Output Options
    • Low, Ultra Low & Golden Phase Noise Performance Options
    • Phase Locking with External Reference Option
    • Low Noise Voltage Regulator Option
    • Supply Voltage: +12 VDC to +24 VDC, specify

    Bench Reference
    Radar Systems
    Communication Systems
    Instruments

    		 Frequency Specific (Consult Factory) Configuration Dependent
    (Consult Factory)
