Name: Quantic Wenzel
Address: 2215 Kramer Lane, Austin, Texas, 78755
Price range: $

Model	Description	Application	Phase Noise (100 kHz)	Size

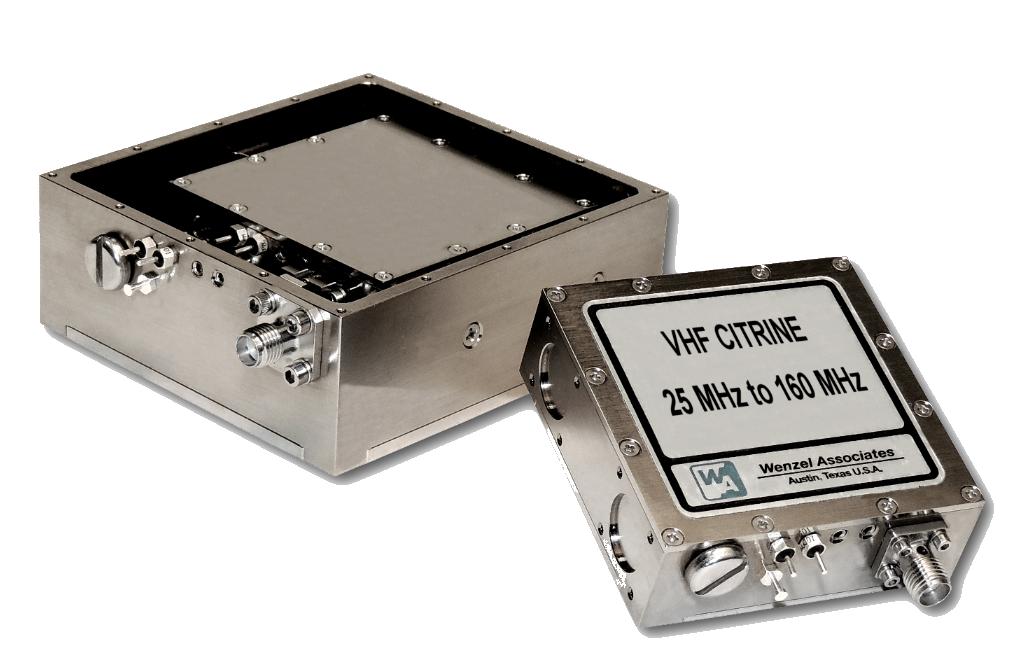

Vibration Isolated VHF Citrine Plus	Frequencies from 50 MHz to 700 MHz, fixed Standard or Premium Phase Noise Options VHF OCXO (25 MHz to 160 MHz) Plus an Additional Circuit Option to add Multiplier, Divider, Filter, PLL or Amplifier Ruggedized for Dynamic Environments Nickel-Plated Machined Aluminum Case SMA(f) and Solder Pins on Side Optional Voltage Reference and Oven Monitor Pins Output: Sine, +13 dBm, Standard; To +21 dBm (w/Integrated Amplifier) Low G-Sensitivity to 2E-10/g per axis Natural Mount Resonant Frequency (~35 Hz, typical)	Airborne Radar Systems Tacticle Radio Vehicular Communication	200 MHz (100 MHz x 2) 500 MHz (100 MHz x 5) 650 MHz (130 MHz x 5) -163 dBc/Hz (200 MHz, Standard) -154 dBc/Hz (500 MHz, Standard) -154 dBc/Hz (650 MHz, Standard) -169 dBc/Hz (200 MHz, Premium) -160 dBc/Hz (500 MHz, Premium) -160 dBc/Hz (650 MHz, Premium)	3 x 2.8 x 1.75"

Model	Description	Application	Phase Noise (100 kHz)	Size
VHF Citrine	Frequencies from 25 MHz to 160 MHz, fixed Standard Premium and Golden Phase Noise Options Ruggedized for Dynamic Environments Nickel-Plated Machined Aluminum Case SMA(f) and Solder Pins on Side Optional Voltage Reference and Oven Monitor Pins Output: Sine, +13 dBm, Standard; To +18 dBm, Optional Low G-Sensitivity 2E-12/g per axis Dual Output Version Available Excellent Temperature Stability Phase Lock Option Available Vibration Isolated Version Available Vibration Isolated Version Available	Airborne, Ground, Shipboard AESA RADAR Systems Military Applications Tactical Radio Vehicular Communications Reference Source	-170 dBc/Hz (Standard) -176 dBc/Hz (Premium) -188 dBc/Hz (Golden)	2 x 2 x 0.7"

Model	Description	Application	Phase Noise (100 kHz)	Size

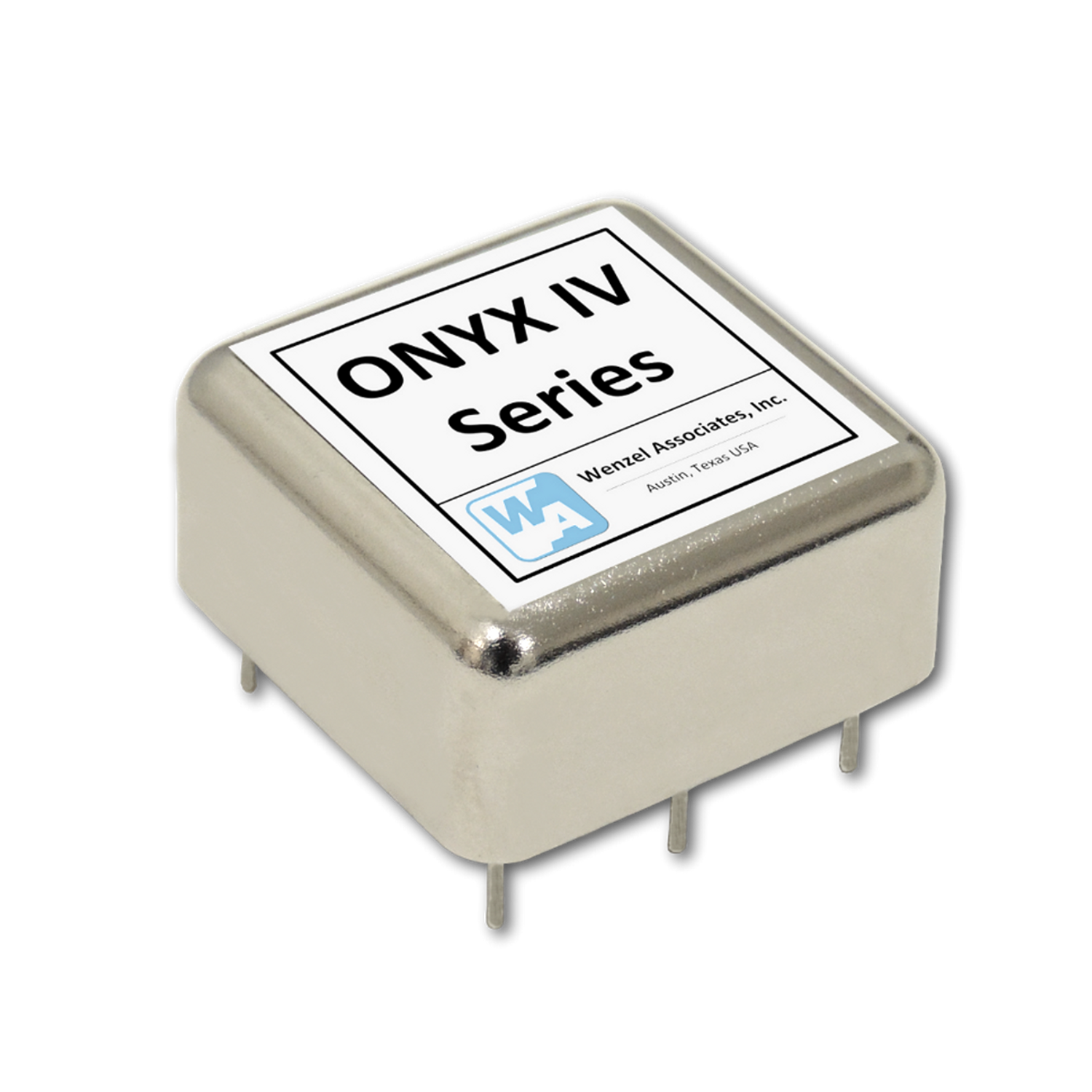

VHF ONYX IV	Frequencies from 25 MHz to 160 MHz, fixed Standard and Premium Phase Noise Options Small Package; Low Profile (0.5″ ht) Solder Sealed Steel Can Thru Hole (PCB) Mount Output: Sine, +13 dBm, Standard Low-G Sensitivity to 2E-10/g per axis	Airborne Mobile Tranceivers Instrument Reference	-165 dBc/Hz (Standard) -172 dBc/Hz (Premium)	1 x 1 x 0.5"

Model	Description	Application	Phase Noise (100 kHz)	Size

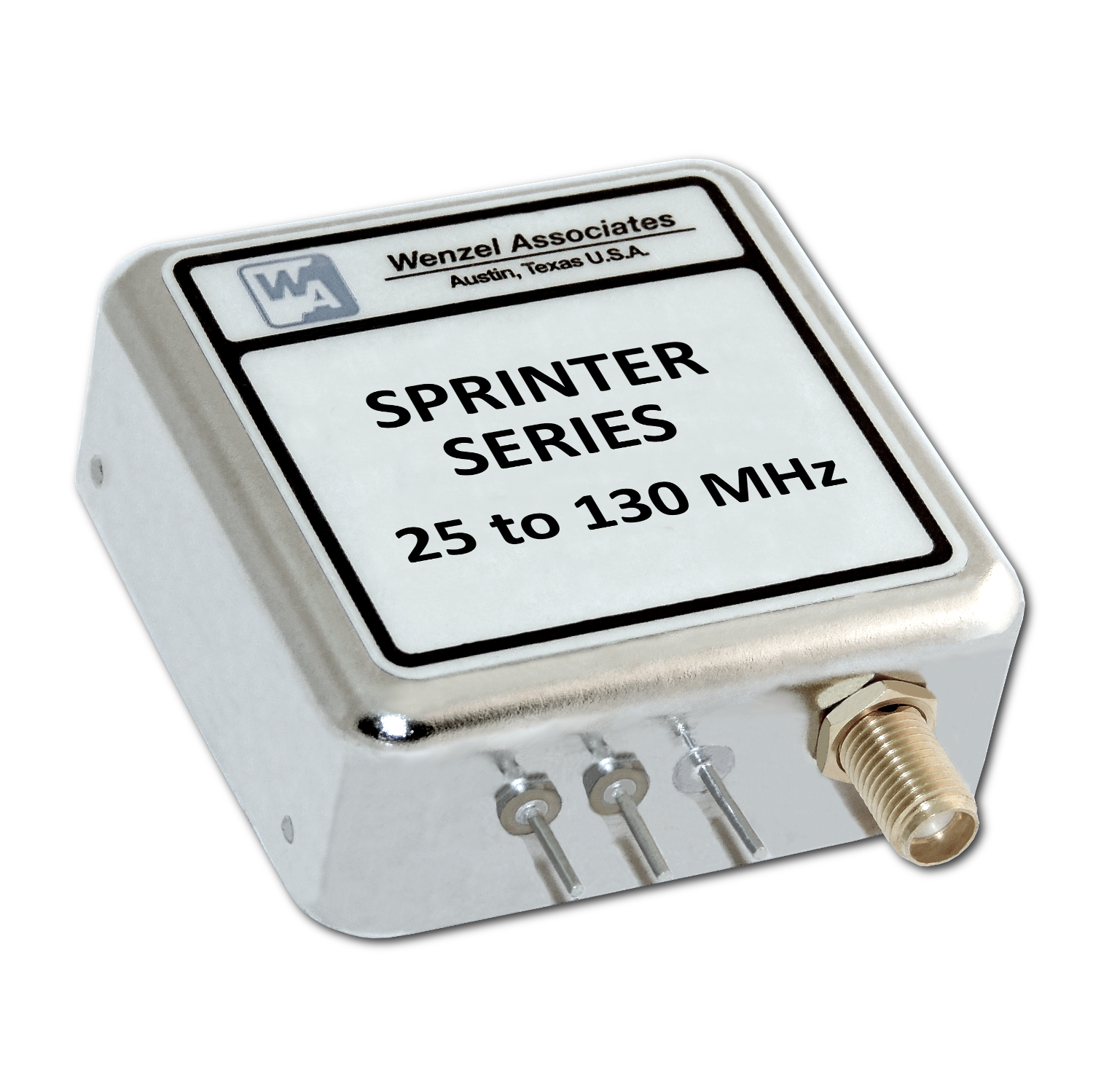

Sprinter	General Purpose Frequencies from 25 MHz to 130 MHz, fixed Low Phase Noise Solder Sealed Steel Can SMA(f) and Solder Pins or Thru Hole (PCB) Mount Output: Sine, +13 dBm, Standard; CMOS, Optional	General Purpose Reference GPS Receivers Synthesizers Instruments	-165 dBc/Hz	2 x 2 x 0.75"

Model	Description	Application	Phase Noise (100 kHz)	Size

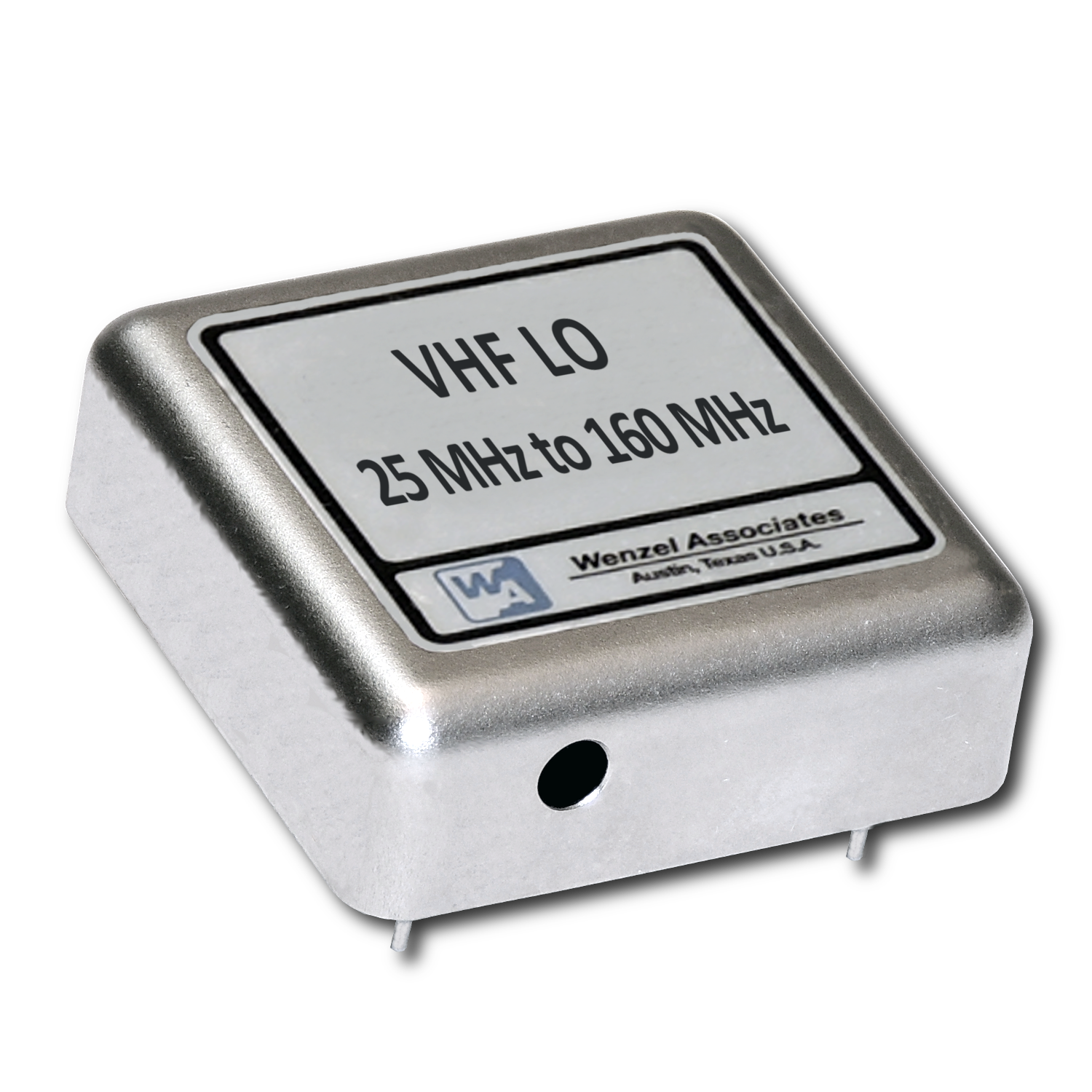

VHF LO	Frequencies from 25 MHz to 160 MHz, fixed Standard and Premium Phase Noise Options Small Package; Low Profile (0.5″ ht) Solder Sealed Steel Can Thru Hole (PCB) Mount Output: Sine, +13 dBm, Standard Low-G Sensitivity 2E-10/g per axis	Airborne Mobile Tranceivers Instrument Reference	-165 dBc/Hz (Standard) -180 dBc/Hz (Premium)	1.5 x 1.5 x 0.5" 1.5 x 1.5 x .75"

Model	Description	Application	Phase Noise (100 kHz)	Size

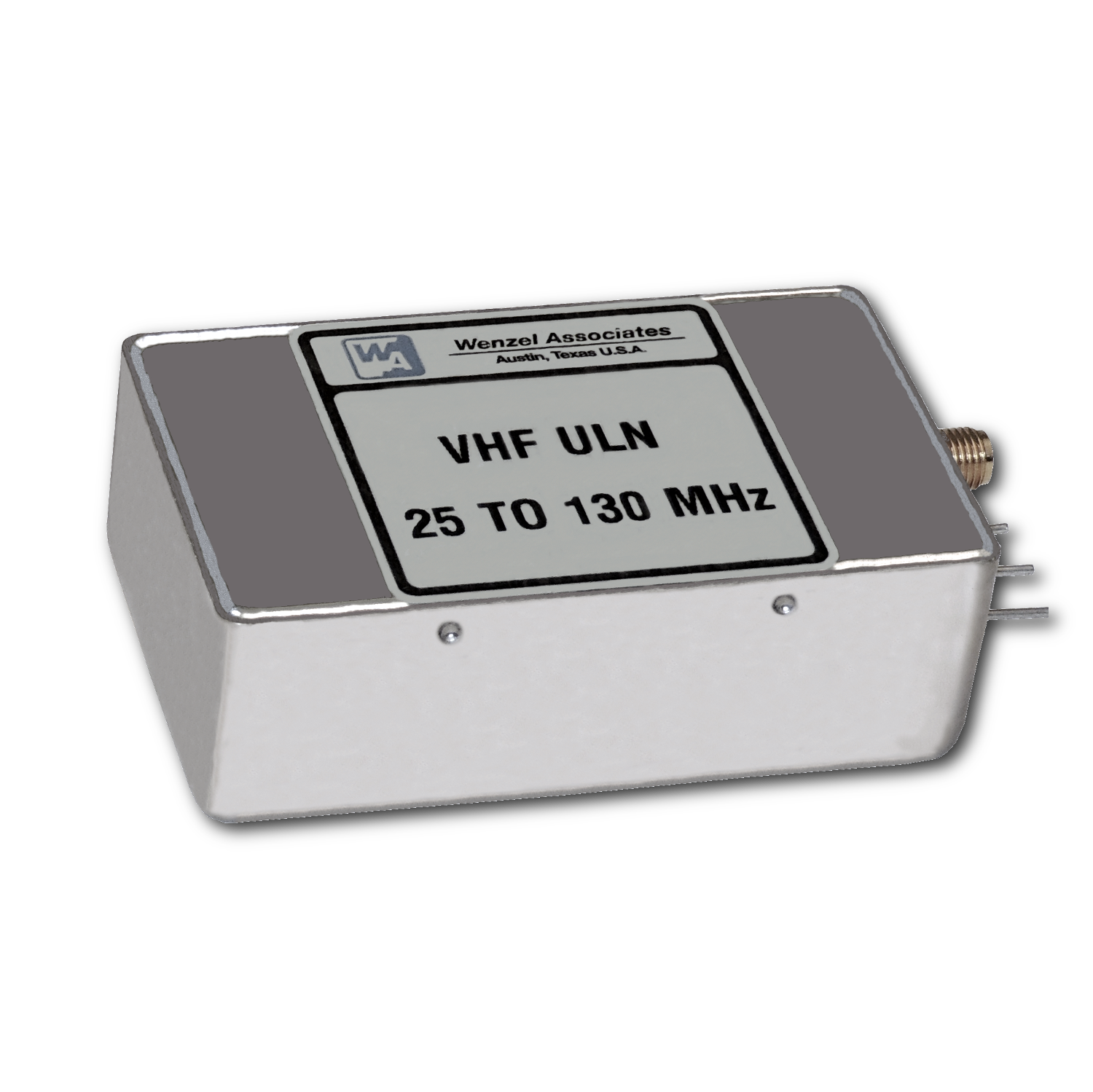

VHF ULN	Frequencies from 25 MHz to 130 MHz, fixed Ultra Low Phase Noise Solder Sealed Steel Can SMA(f) and Solder Pins on side Output: Sine, +13 dBm, Standard Good Temperature Stability	Radar Systems Test Equipment Reference Oscillator Synthesizers	-180 dBc/Hz	1.75 x 2.94 x 1"

Model	Description	Application	Phase Noise (100 kHz)	Size

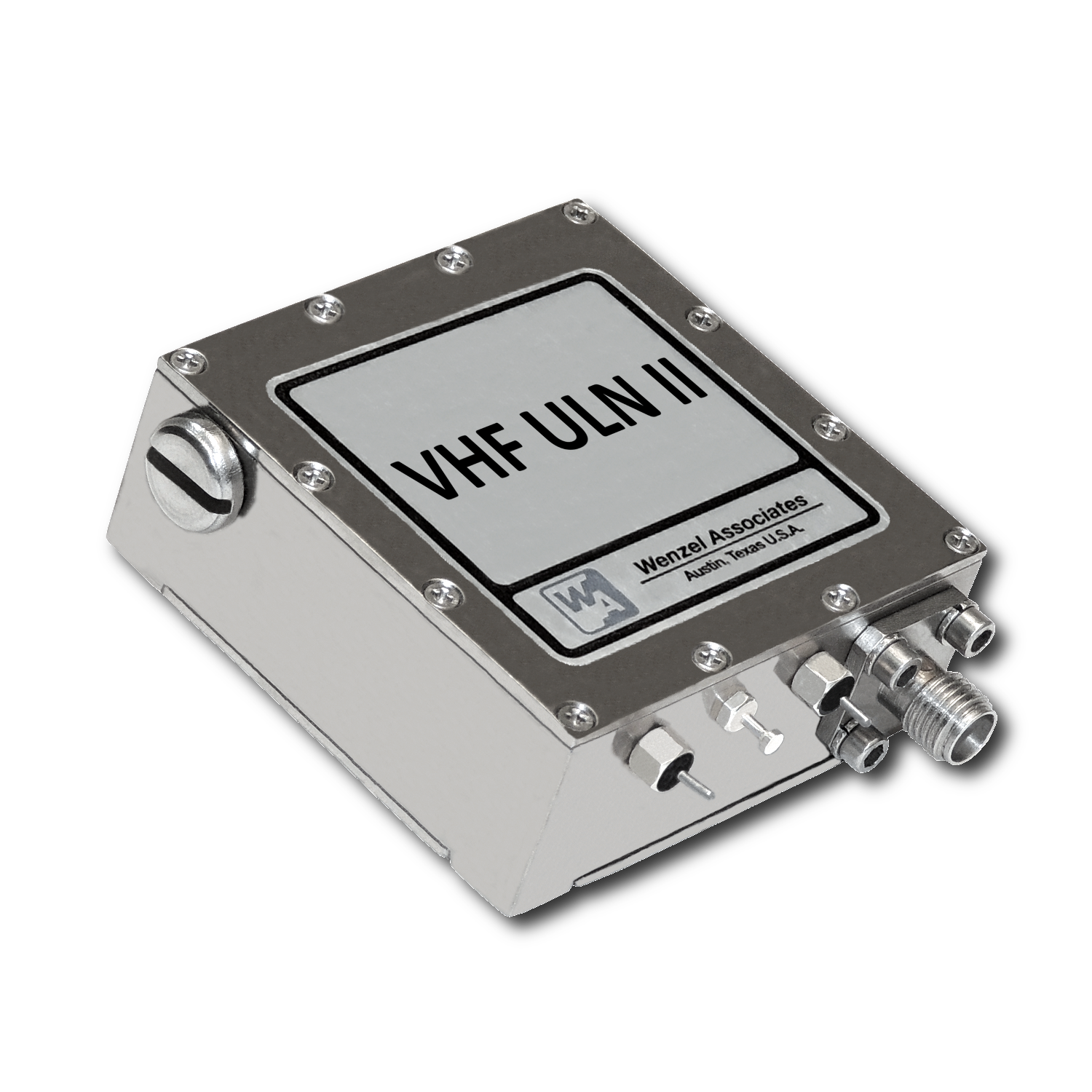

VHF ULN II	Frequencies from 25 MHz to 160 MHz, fixed Ultra Low Phase Noise Ruggedized for Dynamic Environments Nickel-Plated Machined Aluminum Case SMA(f) and Solder Pins on Side Output: Sine, +13 dBm, Standard Low G-Sensitivity 2E-10/g per axis	Radar Systems Test Equipment Reference Oscillator	-180 dBc/Hz	1.87 x 1.84 x 0.75"

Product :
25 MHz to 160 MHz
